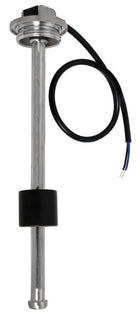

AISI 316 vertical tank level sensor with S3 threaded flange, 240–33 Ω with a length of 28 cm is intended for measuring the level in fuel and water tanks. The sensor can be used in 12 V and 24 V installations and is compatible with level gauges that operate with a resistance range of 240–33 Ω.
The level is detected by an annular float that moves along the vertical sensor rod, changing the sensor's electrical resistance. Connection is made via two wires: black for signal and blue for common ground. The rated power is 0.125 W and the maximum operating current is 300 mA.
The sensor is made of AISI 316 stainless steel and has an IP65 protection rating. The nominal sensor length is 280 mm with an allowable length tolerance of ±5 mm. The top measures Ø53.5 mm, the sensor rod Ø12.7 mm, and the float Ø35 × 32 mm. The attached cable has a length of 460 ±20 mm.
Mounting is performed via an S3 threaded interface with BSP 1 1/4" thread. When installing in a tank without an existing S3 interface, a suitable flange and sealing solution must be used. On thin-walled metal tanks, an S3 interface can be established around a Ø50 mm hole with a welded flange. On plastic tanks, a flange and gasket solution can be used with a Ø50 mm main hole and 4.0–4.2 mm screw holes. The tank must be emptied and cleaned before processing.
The sensor can be used with compatible 240–33 Ω instruments from manufacturers such as Teleflex, Aqua Meter, Vetus, S. Giorgio Sein/Veglia, Beede, Medallion, Datcom, and Taiwan/Wena. The level gauges with part nos. 27.160.00 and 27.170.00 have the same documented resistance range. For tanks with an existing 5-hole S5 flange, the separate S5-to-S3 mounting flange, part no. 52.746.10, can be used.
The product family is compliant with ABYC H-24, USCG 33 CFR 183.590, and ISO 10088, as well as EMC Directive 2014/30/EU with standard references EN 61326-1:2013, EN 61000-6:2007, and EN 61000-6:2007/A1:2011/AC:2012.
Key featuresFor fuel and water tanks
Resistance range: 240–33 Ω
Compatible with 12/24 V installations
Sensor length: 28 cm
Material: AISI 316 stainless steel
S3 threaded interface with BSP 1 1/4" thread
Protection rating: IP65
Operating temperature: −40 °C to +85 °C
Two-wire connection with signal and common ground
Cable length: 460 ±20 mm
