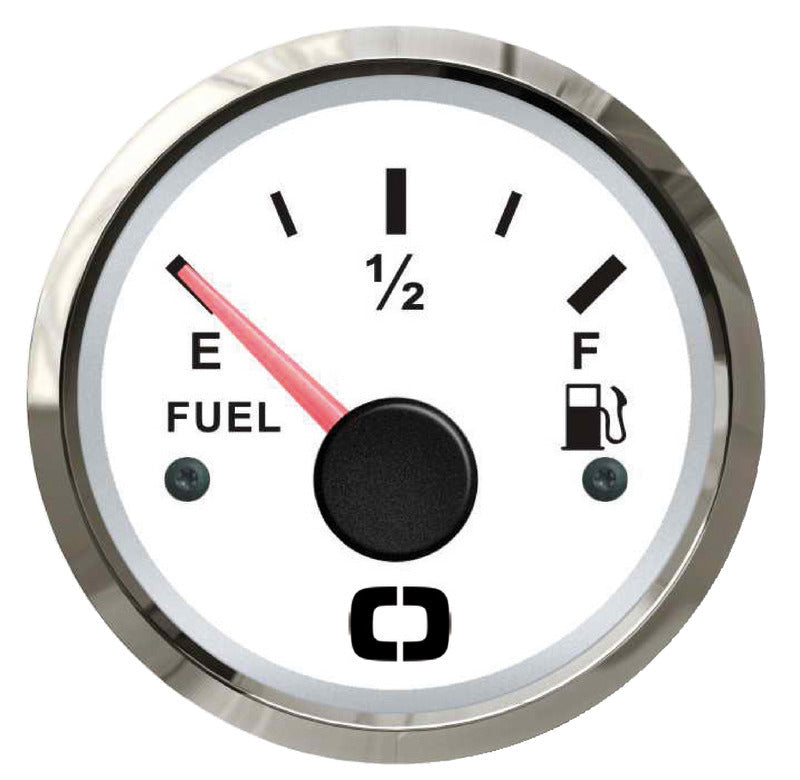

Fuel gauge 240–33 Ω with white dial and polished bezel

Mærke: Osculati SKU: 27.322.01

Price:
Sale price161,00 kr

Description

This fuel gauge is a round, analog marine instrument for monitoring the fuel level via an external resistive tank sensor. This variant is designed for a 240–33 Ω sensor signal and features a white dial, polished bezel, and a nominal front diameter of 57 mm.

The instrument can be used in both 12 V and 24 V installations. The dial has optional red or yellow backlighting: The orange wire activates red lighting, while the yellow wire activates yellow lighting. At 24 V, a 150 Ω resistor must be installed in the positive supply branch and a 2 kΩ resistor in the selected lighting branch.

The fuel gauge is mounted from the front of the instrument panel and secured from the rear with a threaded ring. The physical depth of the instrument is 45 mm, and there must be at least 55 mm of clear space behind the panel. The supported panel thickness is 0.5–20 mm. The product measurement for the panel hole is Ø51 mm, while the installation manual uses Ø52 mm; therefore, check the instrument and template before cutting the hole. An alignment tab on the instrument housing ensures correct orientation.

The five-pin wiring harness connects to the instrument's connector port on the back. The blue wire is used for ground, red for positive supply, black for the external level sensor, orange for red backlighting, and yellow for yellow backlighting. Connection can be routed via an ignition switch or a separate switch.

The fuel gauge requires an external sensor with a 240–33 Ω signal. Alternative signal variants in the same white and polished finish are item no. 27.322.00 for 0–190 Ω and 27.322.02 with a selectable 240–33/0–190 Ω signal. The same gauge function and 240–33 Ω signal are available with a black dial and black bezel as item no. 27.320.01, as well as with a black dial and polished bezel as item no. 27.321.01.

Key features

Analog fuel level display
For 240–33 Ω resistive sensor signal
12/24 V supply
Choice between red and yellow backlighting
White dial and polished bezel
Front diameter: 57 mm
Instrument depth: 45 mm
Panel mounting with fastening ring
For panel thickness of 0.5–20 mm
Requires external fuel level sensor

PLEASE NOTE:

Description and specifications are machine-generated, so there is a risk of errors. If in doubt, please feel free to contact us.

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Fuel gauge 240–33 Ω with white dial and polished bezel
Fuel gauge 240–33 Ω with white dial and polished bezel Item no. 27.322.01

Description

Produkt: Brændstofmåler
Produkttype: Analog brændstofniveaumåler
Anvendelse: Visning af brændstofniveau
Volt: 12/24 V
Diameter: 57 mm
Dybde: 45 mm
Farve: Hvid skive, blank ramme
Signal: 240–33 Ω
Visningstype: Analog viser
Baggrundsbelysning: Valg mellem rød og gul
Panelhul: Ø51 mm som produktmål; Ø52 mm i monteringsanvisningen
Paneltykkelse: 0,5–20 mm
Fri plads bag panel: Min. 55 mm
Montering: Panelmontering med fastgørelsesring
Ledningsnet: 5-polet
Kompatibilitet: Brændstofniveausystemer med 240–33 Ω resistivt sensorsignal
