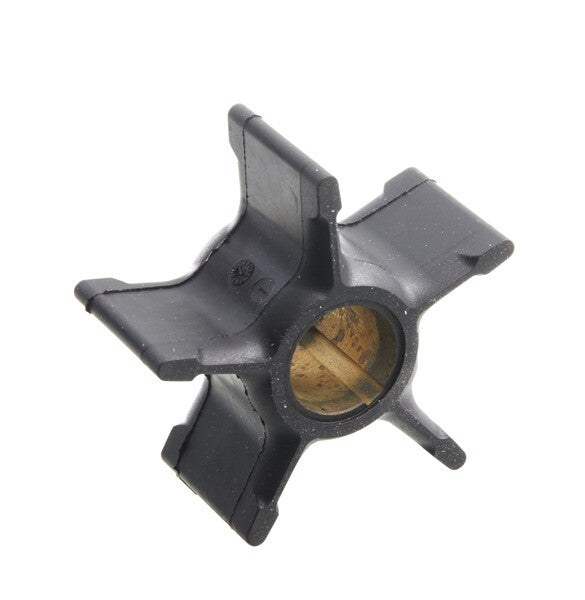

This water pump impeller for Suzuki outboard motors is a CEF Marine model 393 for the engine's water and cooling pump. The impeller replaces Suzuki OE no. 17461-93J00 and is intended for documented Suzuki engine applications.
The impeller is manufactured from neoprene and features five flexible blades. It is driven via a keyway and has an internal diameter of 24.3 mm, an external diameter of 87 mm, and a depth of 39 mm.
Compatible engine models
Compatibility includes Suzuki DF200, DF225, and DF250 4-stroke outboard motors from 2004-2010 as well as the Suzuki DF300 from 2007-2010. The CEF part number is 500393. An older CEF application also links the impeller to the Suzuki PU85 jet from 1989-1997.
Replaces OEM numbers
The primary Suzuki reference is 17461-93J00. Documented alternative cross-references include Sierra 18-3035, Mallory 9-45507, and Johnson/OMC 5035040.
Related spare parts
In the Suzuki water pump for the documented DF225T application, the impeller is included along with, among other things, water pump repair kit 17400-93J02 and impeller key 09420-05009. These parts are related service components and are not documented as being included.
Always check the engine's model, year, serial number, and original part number before purchasing. The product should not be considered universally compatible with all newer Suzuki DF engines based solely on engine power.
Key featuresWater pump impeller for Suzuki outboard motor
Model: 393
CEF part number: 500393
Suzuki OE: 17461-93J00
Material: Neoprene
Number of blades: 5
Drive type: Keyway
Internal diameter: 24.3 mm
External diameter: 87 mm
Depth: 39 mm
