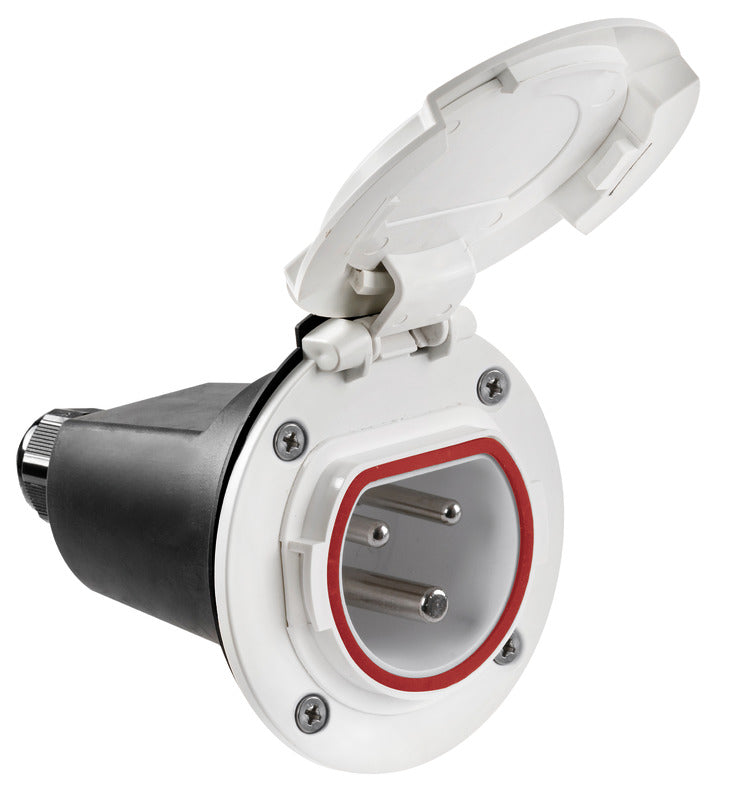

This shore power inlet in the Cruiser 32A series is a fixed, 3-pole connection for the boat's 32 A shore power system. The white inlet features both a cover and base made of PA6 and is designed for installation in areas such as the cockpit.

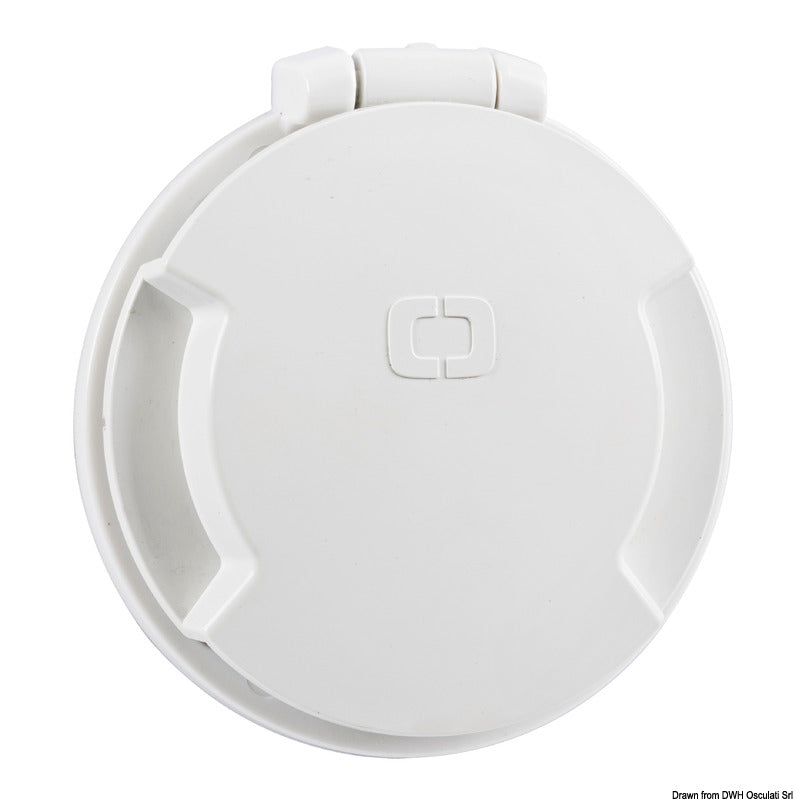

The hinged protective cover seals the inlet with IP67 protection. Together with the corresponding cable connector and its rotating locking ring, a securely fastened and IP67-tight connection is established between the shore power cable and the boat's installation. The inlet is equipped with energy-efficient contacts.

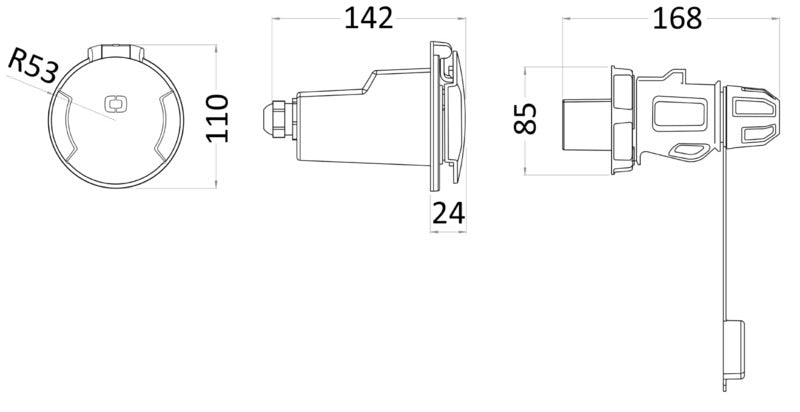

The front has four mounting points for fixed installation. The total height of the front and cover is 110 mm, the total depth is 142 mm, and the protrusion from the mounting surface is 24 mm. The specified radius of the front is R53 mm.
The connection complies with IEC 60309-5 and is developed for maritime shore power installations. The directly compatible 3-pole Cruiser 32 A cable connector has item no. 14.432.02.
Key featuresFixed 3-pole shore power inlet
Rated current: 32 A
Cover and base in nylon PA6
White finish
IP67 protection
Four mounting points in the front flange
Complies with IEC 60309-5
Fits Cruiser 32 A cable connector, item no. 14.432.02
