Fixed carbon pole for bimini Ø 50 mm – 200 cm

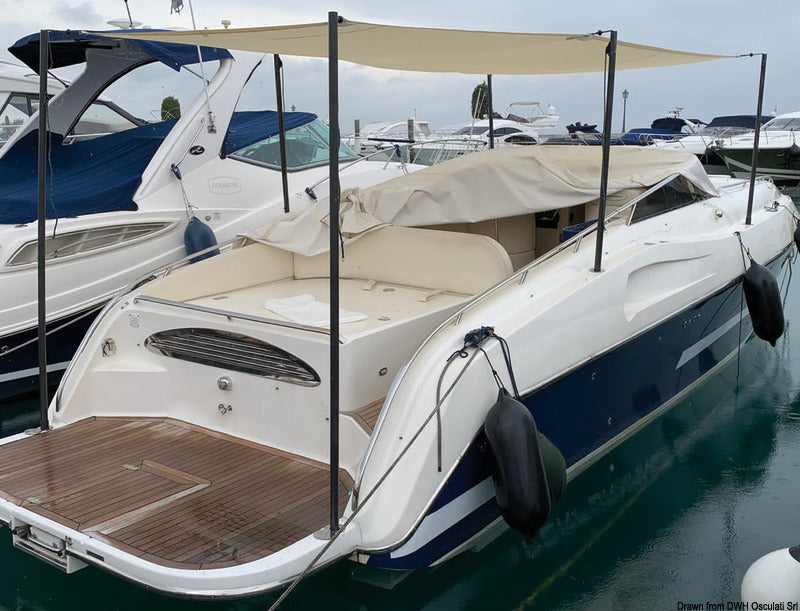

This Fixed carbon pole for bimini, Ø 50 mm is a carbon support pole with a nominal height of 200 cm. The pole has a specific length designation of 1990 mm and serves as a support and tensioning point in a modular bimini system.

The pole can be rotated 90° inside the mounting socket and then locked into position. It is supplied with end bushings for clamping, ensuring the pole is held securely during use.

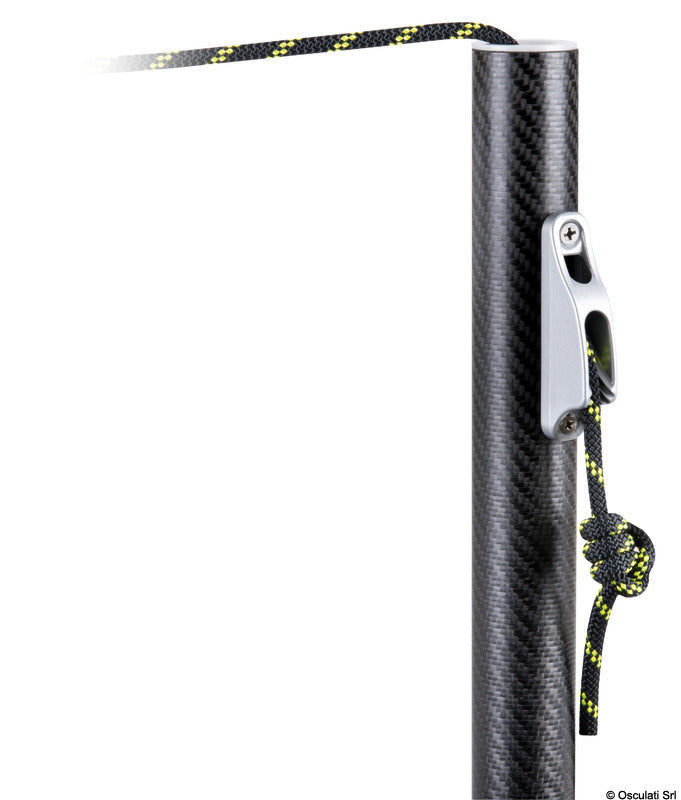

A Clamcleat rope cleat is pre-mounted on the pole. The rope cleat allows the attachment line to be adjusted and keeps the bimini tensioned without the need for a separate rope cleat.

Attachment can be performed using an eye-spliced Dyneema line, which connects directly to the bimini using a Ø 10 mm ball or a carabiner. The attachment line is not included. The related spliced line with item no. 46.817.00 has a length of 130 cm and a useful adjustment range of 50 cm.

For Ø 50 mm carbon poles, the straight mounting socket 46.820.00 and the 6° angled mounting socket 46.820.01 are available. For storage against a wall or bulkhead, the optional black wall clip 34.358.50 for Ø 50 mm tubes can be used. Sockets, line, and wall clip are separate accessories.

Fixed carbon pole for bimini
Nominal height: 200 cm
Length designation: 1990 mm
Outer diameter: 50 mm
90° rotatable and lockable in the mounting socket
Pre-mounted Clamcleat for adjustment and tensioning
End bushings for clamping
Attachment line not included
Optional wall clip: 34.358.50
