Full Flush fuel tank vent in chrome-plated brass, 90°, Ø 19 mm

Mærke: Osculati SKU: 20.274.19

Price:
Sale price242,00 kr

Description

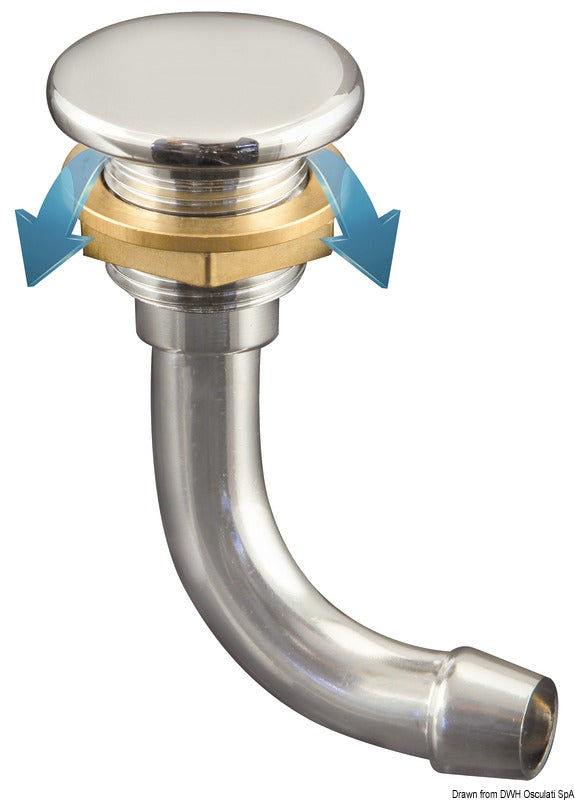

Full Flush fuel tank vent in chrome-plated brass is a flush-mounted vent for marine fuel tanks. This variant has an angled 90° design and a nominal size designation of Ø 19 mm.

The vent opening is located on the underside. This gives the design a completely closed visual appearance when viewed from above and supports the discreet Full Flush mounting in a plate or panel.

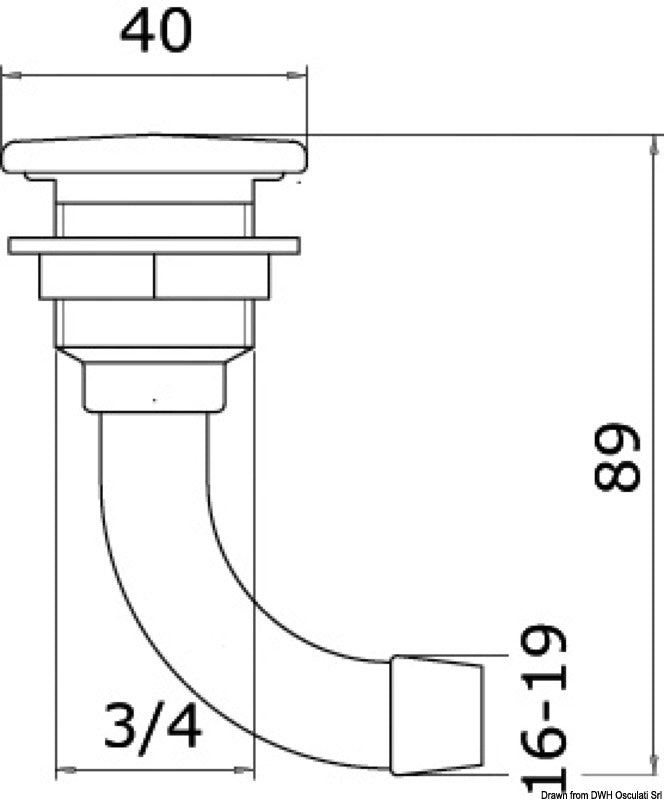

The vent is made of chrome-plated brass with a shiny, chrome-colored surface. The visible top has a diameter of 40 mm, while the total vertical dimension of the construction is 89 mm. Dimensions for the mounting hole and permissible panel thickness are not specified.

The hose adapter has a diameter of 20 mm. The product's nominal size designation is Ø 19 mm; the two values therefore describe the product variant's nominal size and the adapter's documented diameter, respectively.

The construction is designed in accordance with the requirements of UNI EN ISO 21487 for permanently installed fuel tanks and fuel systems in small craft.

Key features

Full Flush flush-mounted construction
Angled 90° model
Nominal size: Ø 19 mm
Hose adapter: Ø 20 mm
Chrome-plated brass
Top diameter: 40 mm
Total vertical dimension: 89 mm
Vent opening located on the underside
Designed according to the requirements of UNI EN ISO 21487

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Full Flush fuel tank vent in chrome-plated brass, 90°, Ø 19 mm
Full Flush fuel tank vent in chrome-plated brass, 90°, Ø 19 mm Item no. 20.274.19

Description

Produkt: Full Flush brændstoftankudluftning i forkromet messing
Serie: Full Flush
Model: 90°
Produkttype: Brændstoftankudluftning
Anvendelse: Udluftning af maritime brændstoftanke
Højde: 89 mm
Hoveddiameter: 40 mm
Nominel størrelse: Ø 19 mm
Materiale: Forkromet messing
Farve: Kromfarvet
Slangetilslutning: Ø 20 mm
Montering: Planmontering gennem plade eller panel
Standard: UNI EN ISO 21487
Vinkel: 90°
Udluftningsåbning: På undersiden
