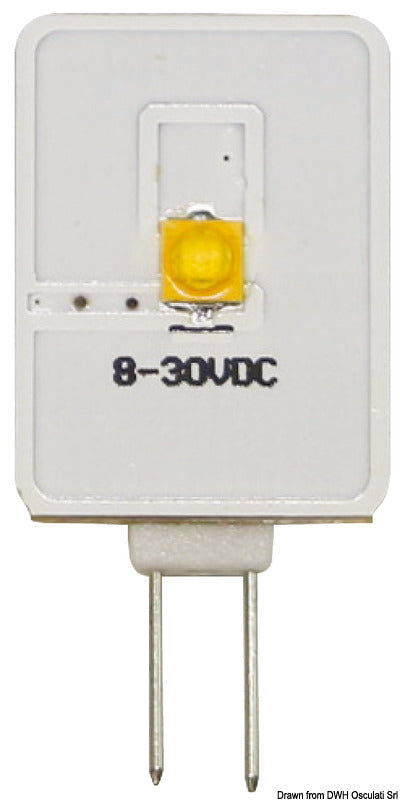

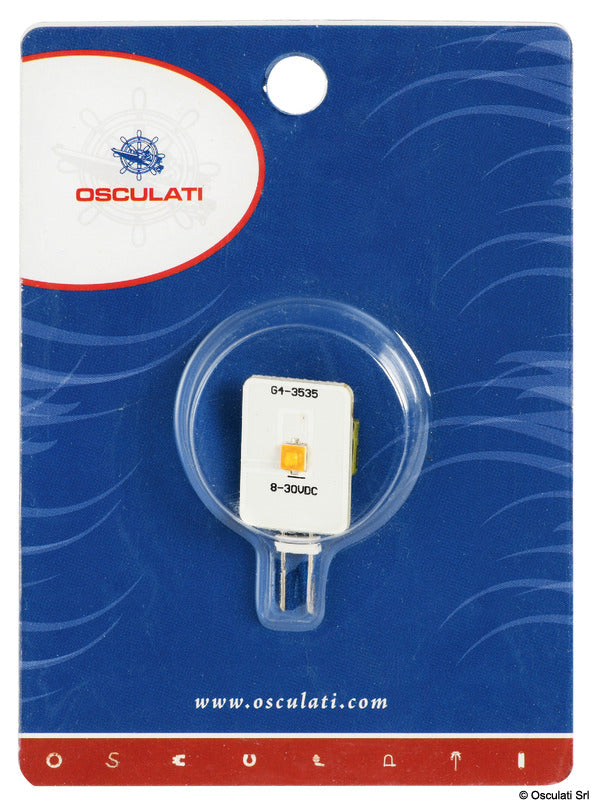

This G4 LED bulb is a compact low-voltage light source with side-facing pins for lamps and fixtures with a G4 socket. The bulb can be used with both 12 and 24 V and has a power consumption of 1.5 W.
The light source consists of one high-power SMD LED, which delivers a luminous flux of 130 lm at a color temperature of 3000 K. The 120° beam angle provides a wide light distribution, and the stated equivalent power is 15 W.
The bulb measures 33 × 16 mm and has a G4 pin spacing of 4 mm. The side-facing connection makes orientation important during installation, so the fixture must have space for the bulb's size and design.
The bulb is intended for existing G4 sockets with a 12 or 24 V supply. Check the socket, connection direction, and physical dimensions before replacing, as G4 bulbs can have different designs and light directions.
Key featuresG4 socket with 4 mm pin spacing
Side-facing connection
12/24 V
Power consumption: 1.5 W
Luminous flux: 130 lm
Color temperature: 3000 K
Beam angle: 120°
One high-power SMD LED
Product dimensions: 33 × 16 mm
