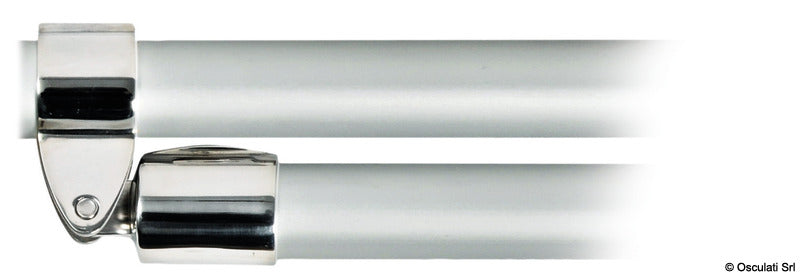

Fork joint for 3-bow bimini frame is a connecting part for large biminis and sprayhoods with frames built of three bows. This variant is intended for 30 mm bimini tubes and has a center distance A of 113 mm.
The center distance is measured between the center axis of the bimini tube and the connecting or pivot axis of the joint. The dimension is therefore a construction and mounting measurement, which makes it possible to select the correct variant for the frame's geometry.
The fork joint is made of AISI 316 stainless steel with a mirror-polished surface. The construction and material are intended for use as fittings in maritime bimini and sprayhood frames.
The documented reference component is an end cap with item no. 46.761.03 for 30 mm tubes. The component must be treated as a separate related part, as it is not documented that it is included.
Key featuresFork joint for large 3-bow bimini frames
For 30 mm bimini tubes
Center distance A: 113 mm
Made of AISI 316 stainless steel
Mirror-polished surface
Reference component: end cap 46.761.03
Sales unit: 1 pc.
