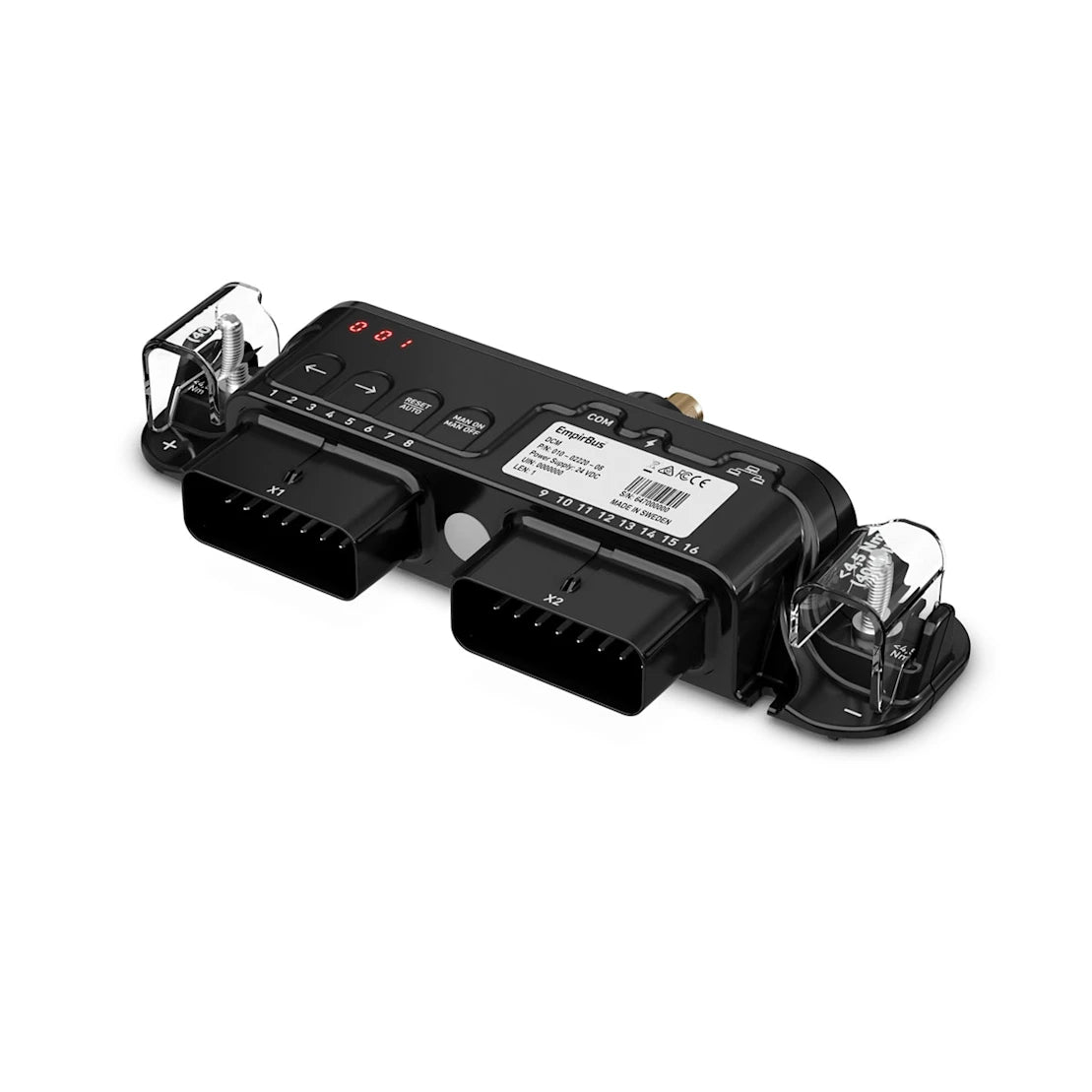

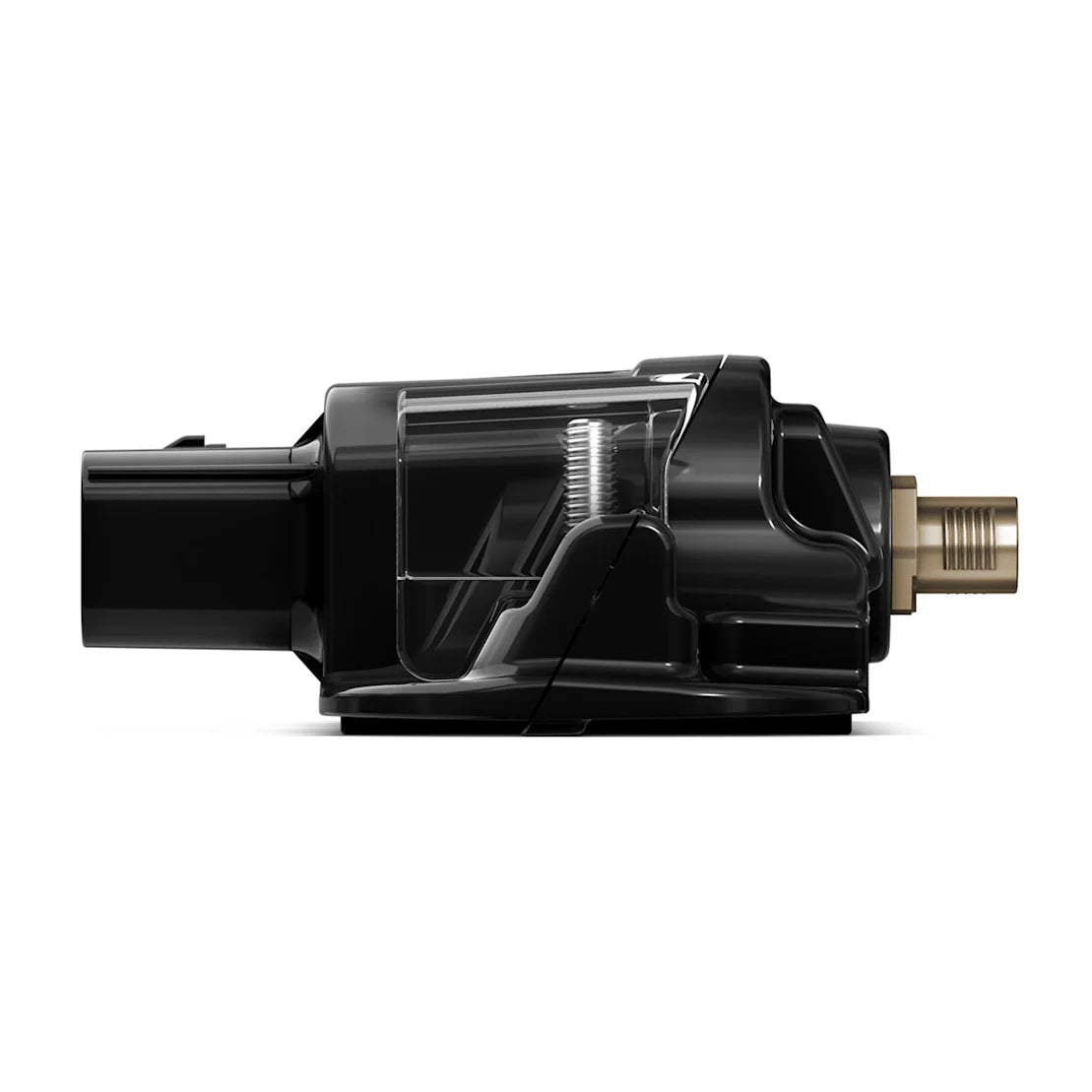

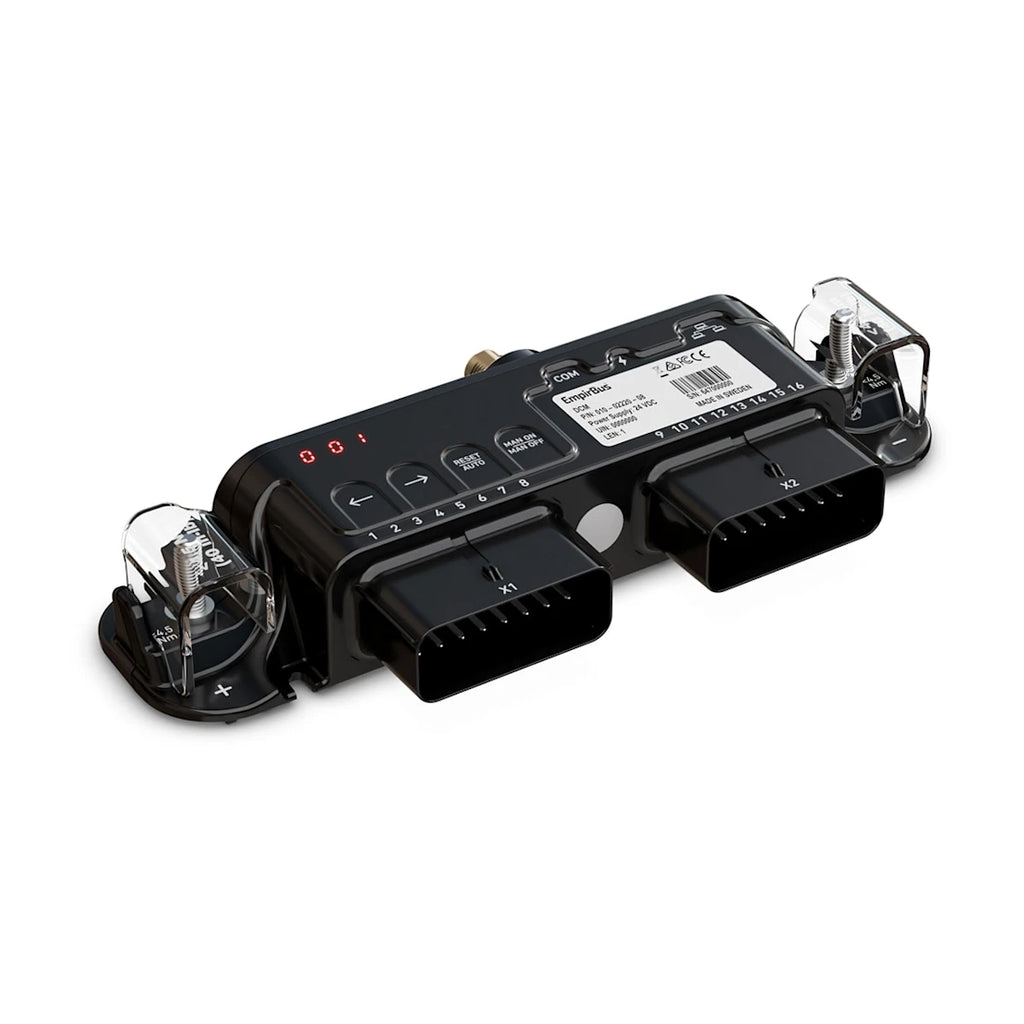

Garmin EmpirBus™ NXT DCM

An EmpirBus digital switching system consists of one or more compact digital DCMs. The DCM supports multiple circuits that are customized to meet the precise needs of the equipment being controlled. Each DCM connects to the existing NMEA 2000 ® network backbone so that it can communicate with the other DCMs and Garmin MFDs via a web viewer on the Garmin marine network.

With multiple input functions and ranges, the NXT DCM unit is an extremely versatile and cost-effective way to provide full control of your vessel. It has a smaller footprint and is easy to install and service.

All output channels are electronically protected and have undercurrent protection and soft stop/start. The channels can be electronically dimmed and drive complex loads such as LED lighting or windshield wipers.

Features

Miscellaneous

Overview

Dimensions (W x H x D) 230 x 106 x 38mm (9.1″ x 4.2″ x 1.5″)
Weight 400g (14.1oz)
Enclosure water classification IP65
Ambient temperature -20 °C to +55 °C
Communication CAN-Bus NMEA 2000 ® network, LEN-0

Output

High side 13-channel 10 A, 7-channel 5 A

Digital input

Ground contact input 15
Bilge pump monitor 2

Analog input

Volt 3 @ 0-16V +/-1%
Resistance 2 @ 0-1500 ohms +/-5%

Power supply

Maximum current 50 A
Power consumption when turned off 60mA
Supply voltage (12 V) 9-16VDC

Plug

NMEA 2000® Micro 5-pin M12 male
Channels Molex MX150 L 16 circuits
Power clamp M6 bolt

Vidste du

... at du kan se vores store Garmin-udstilling og prøve Garmin produkter på vores "Showboat" i vores store Bådudstyrsbutik, på Bådebyggervej 1 i Næstved. Desuden kan mange af vores varer bestilles online og afhentes i vores selvbetjeningsbutikker lokalt i de danske havne.

Se mere her: Selvbetjeningsbutikker

Montering/installering

Få dit Garmin-udstyr monteret af vores dygtige specialister - ring til os på 71 99 77 79 så vi kan finde en løsning sammen.
Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Garmin EmpirBus™ NXT DCM
Garmin EmpirBus™ NXT DCM Item no. 010-02220-08

Description

Produkt: EmpirBus™ NXT DCM
Funktion: Distribueret kontrolmodul til digital switching
System: En eller flere DCM-enheder pr. installation

Kommunikation og integration
Tilslutning via NMEA 2000® backbone
Kommunikation mellem DCM-moduler
Integration med Garmin MFD via web-visningsinterface

Funktioner
Flere udgangskanaler pr. modul
Elektronisk beskyttede udgange
Understrømsbeskyttelse
Soft start / soft stop
Elektronisk dæmpning af belastninger
Understøtter avancerede laster (LED, viskere m.m.)
Høj driftssikkerhed
Designet til professionel marineinstallation

Design & Installation
Kompakt og pladsbesparende
Nem montering
Let service og udskiftning
Skalerbar systemopbygning
