Description
SERIOUS FISHERMEN, CRUISERS, SAILORS AND RACERS NEED PROFESSIONAL EQUIPMENT
The combined chartplotter/sounder package is user-friendly, easy to install and provides MFD performance in a handy combo package.
Get wider viewing angles and superior image clarity on the touchscreen with a Full HD In-Plane Switching (IPS) display.
Navigate confidently with built-in Garmin Navionics+ ™ mapping of inland and coast 1 .
You can easily build your marine system using the best network connection.
See below and around your boat with built-in sonar capabilities (transducers sold separately)
From ANT ® respectively Wi-Fi ® technology network, there are countless ways to connect to your system.
With SmartMode ™ station control buttons are all designed to give you quick, one-touch access to the information you need.
Made for your helm station.

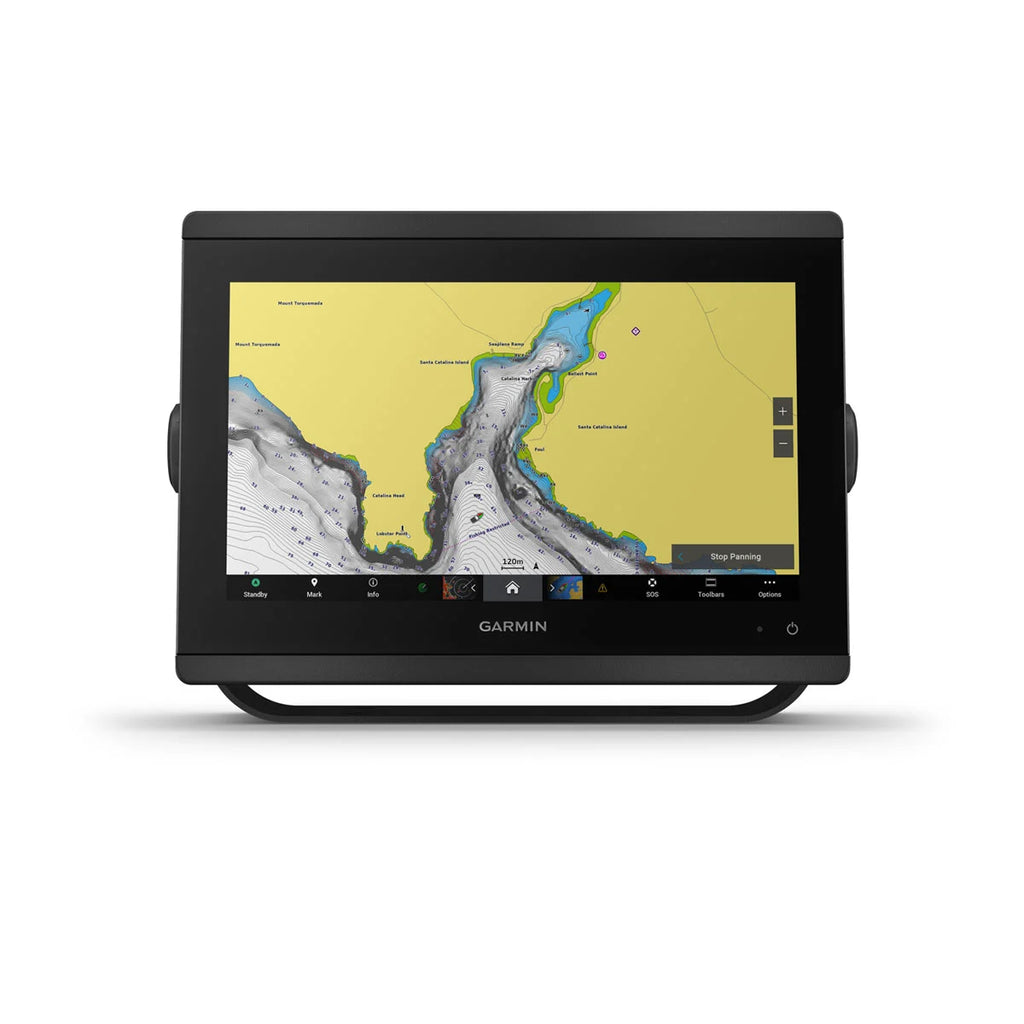

HD IPS TOUCHSCREEN
This display, available in 10″, 12″ and 16″, offers wider viewing angles, premium image clarity and sunlight readability, even with polarized sunglasses.

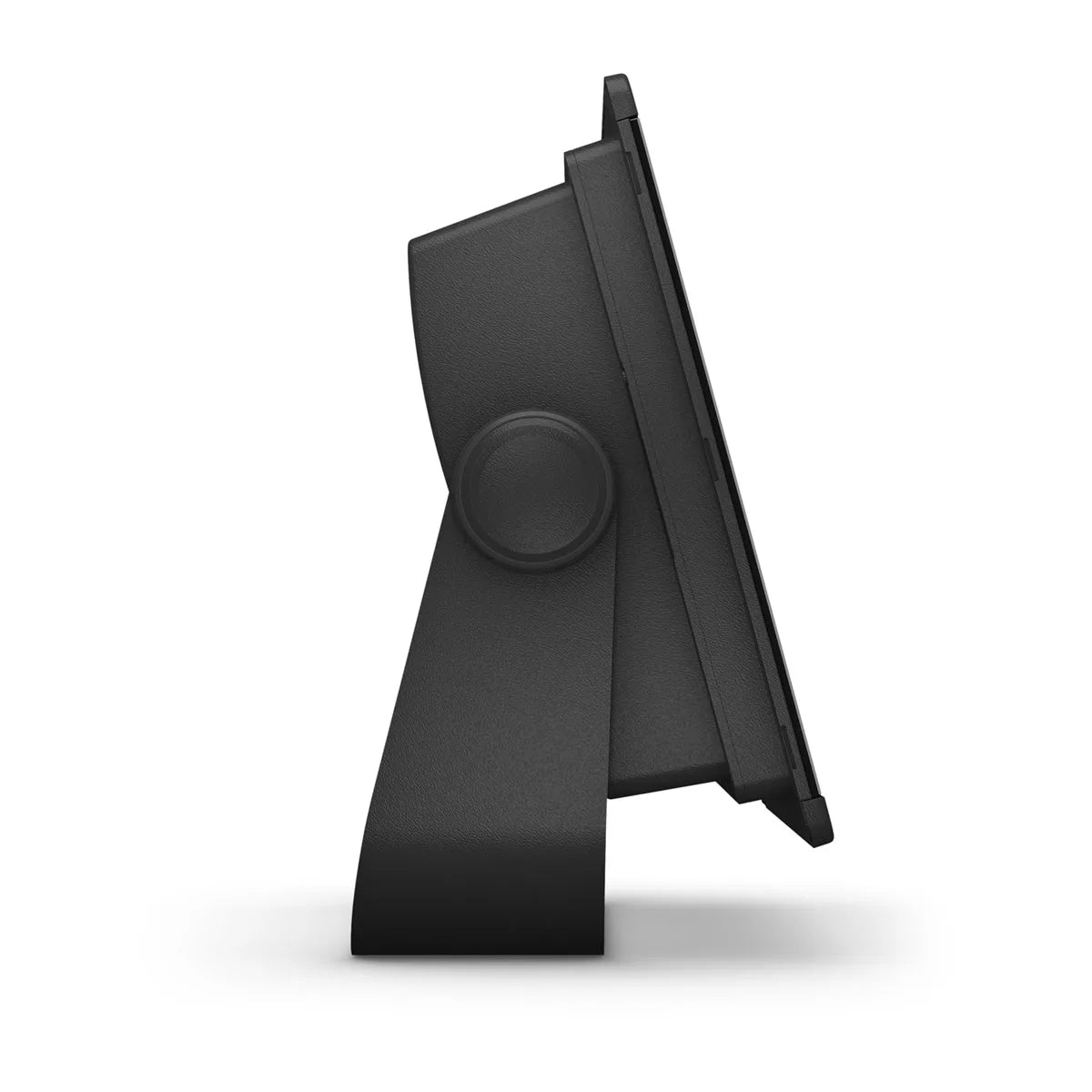

SIMPLE, ATTRACTIVE MOUNTING OPTIONS
You can install multiple screens, either surface-mounted side by side, which creates an elegant glass-look control space, or flush-mounted – creating a breathtaking control space.
GRID ™ 20 REMOTE CONTROL
The user-friendly GRID 20 Optional remote input device provides intuitive remote access and control of the entire Garmin marine system.

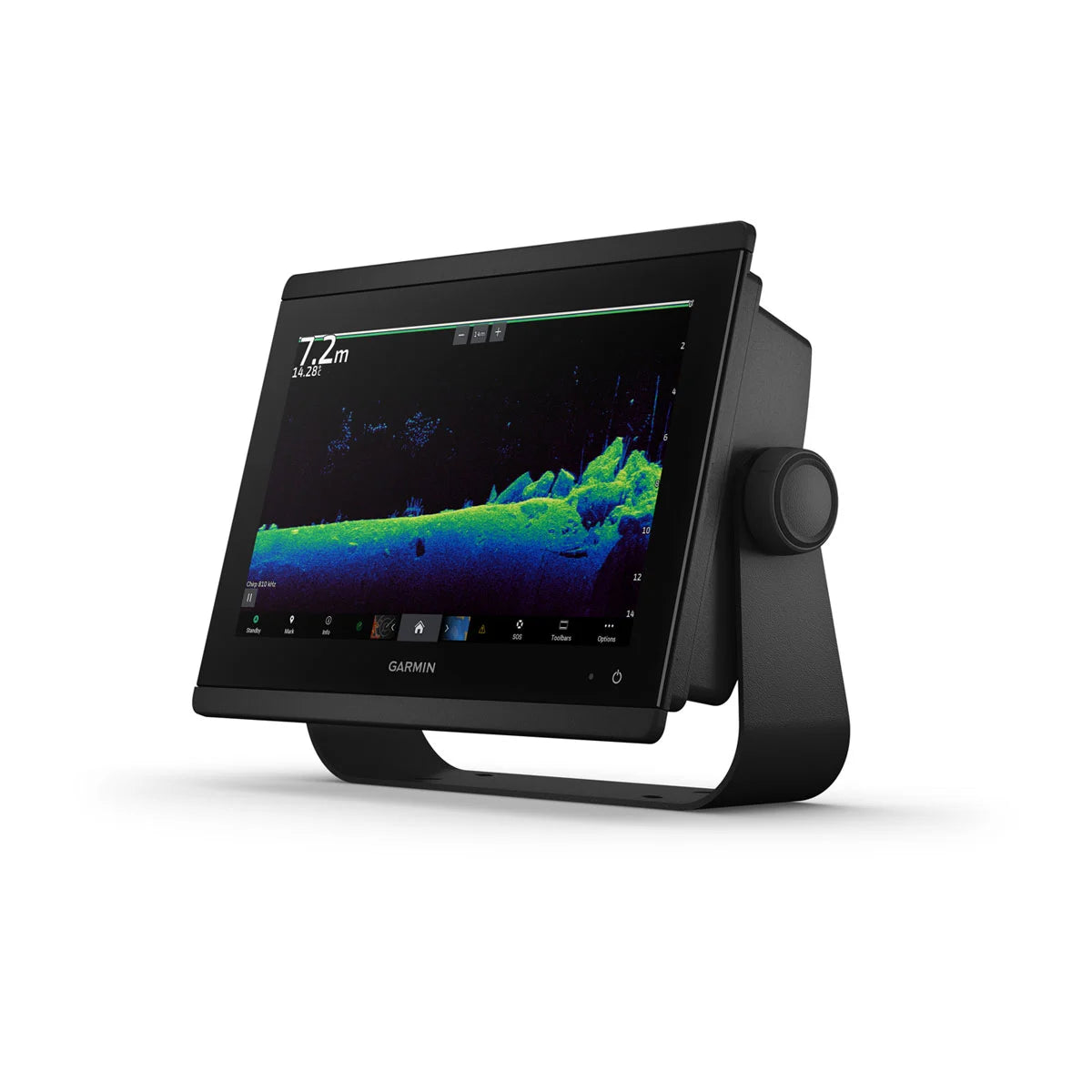

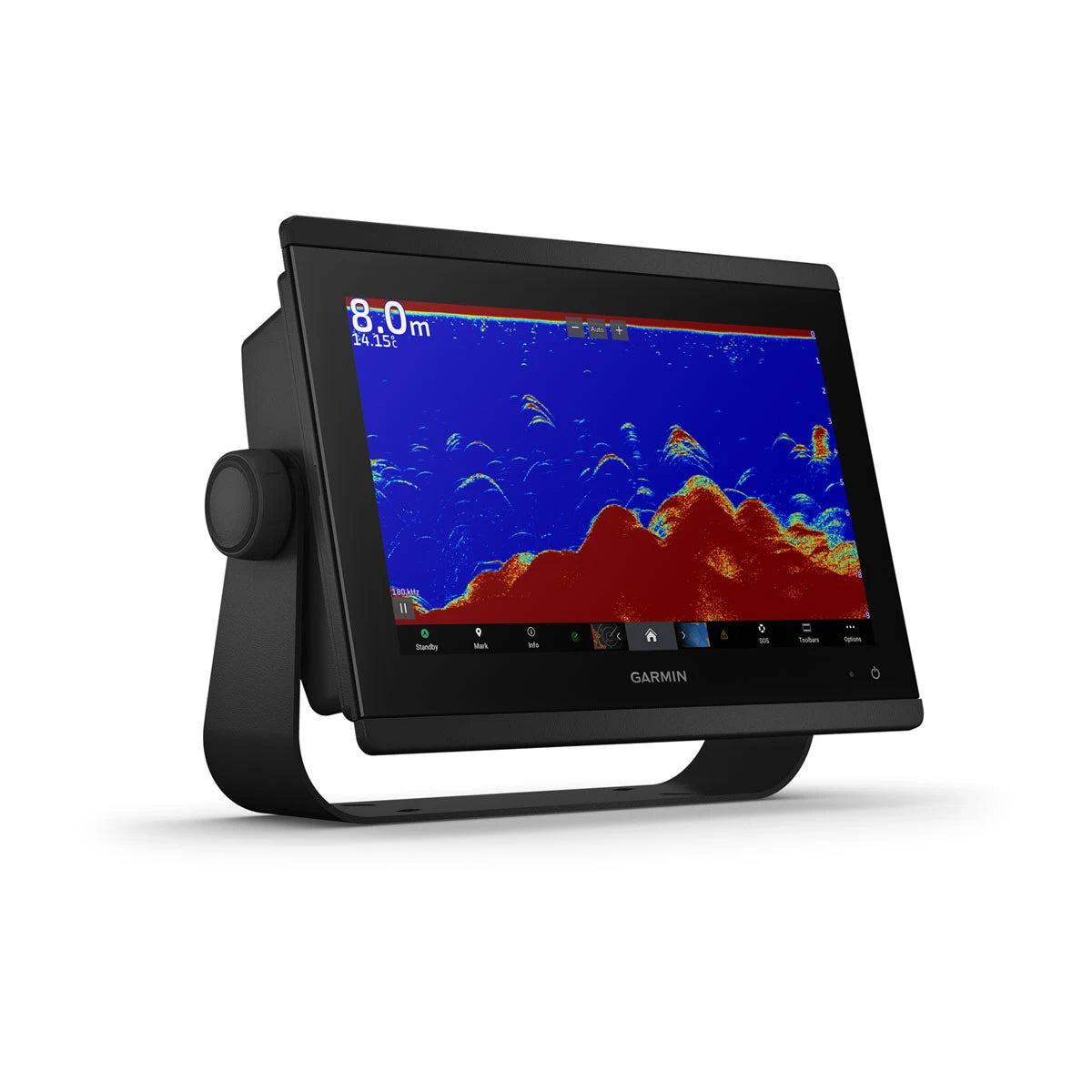

See the world below you.

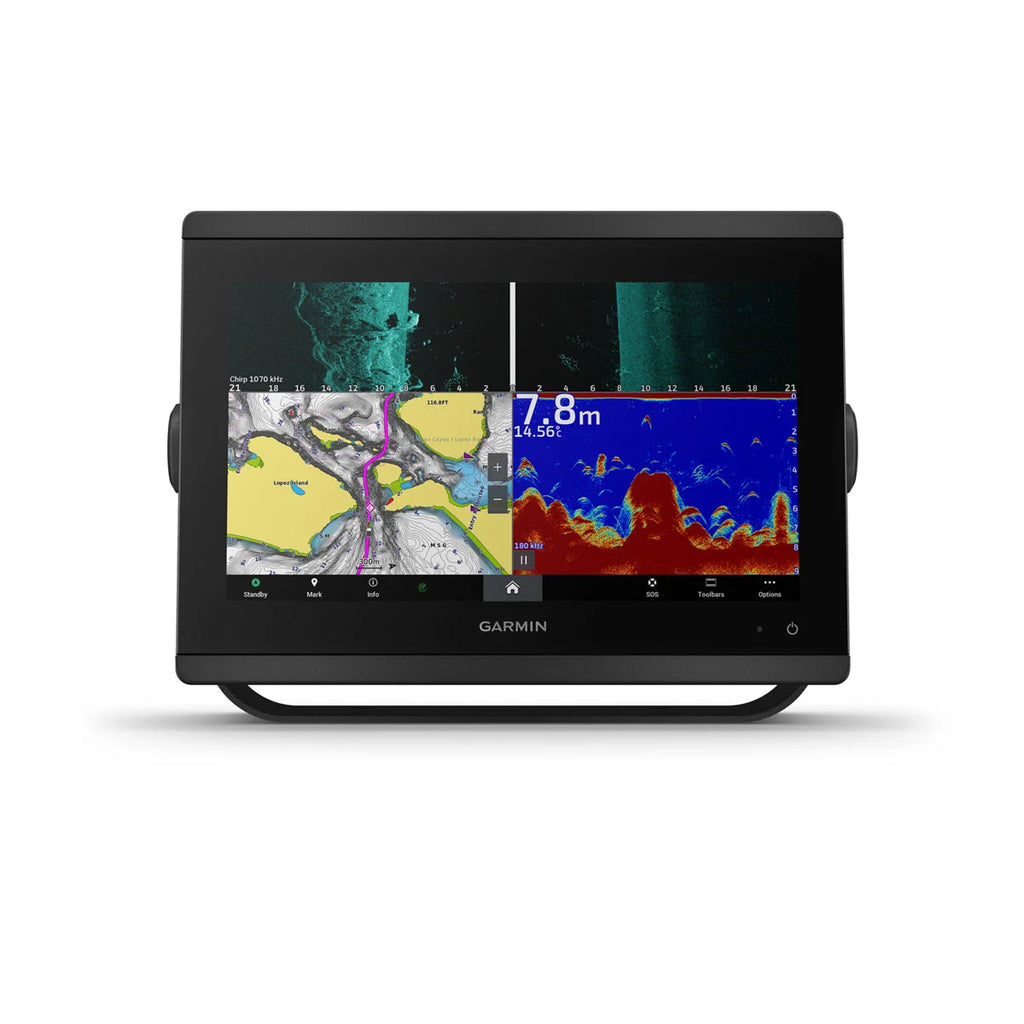

SUPPORT FOR TRADITIONAL SONAR AND SCANNING SONAR
Get built-in support for 1 kW dual-channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonar to see up to 1,000 feet below and around your boat at 260 kHz (requires transducer, sold separately). Built-in sonar compatibility available on xsv models only.
SUPPORT FOR PANOPTIX ™ SONAR
Pair your plotter with Panoptix or Panoptix LiveScope ™ Easy-to-read sonar (transducer sold separately) so you can see all around the boat in real time.
Sail and navigate with ease
GARMIN SAIL ASSIST ™ SAILING FUNCTIONS
View laylines, racing start line guidance, enhanced wind rose, heading and course over ground lines, true wind data fields and sliders for tide/current/time, wind direction, heading and drift, wind speed, etc.

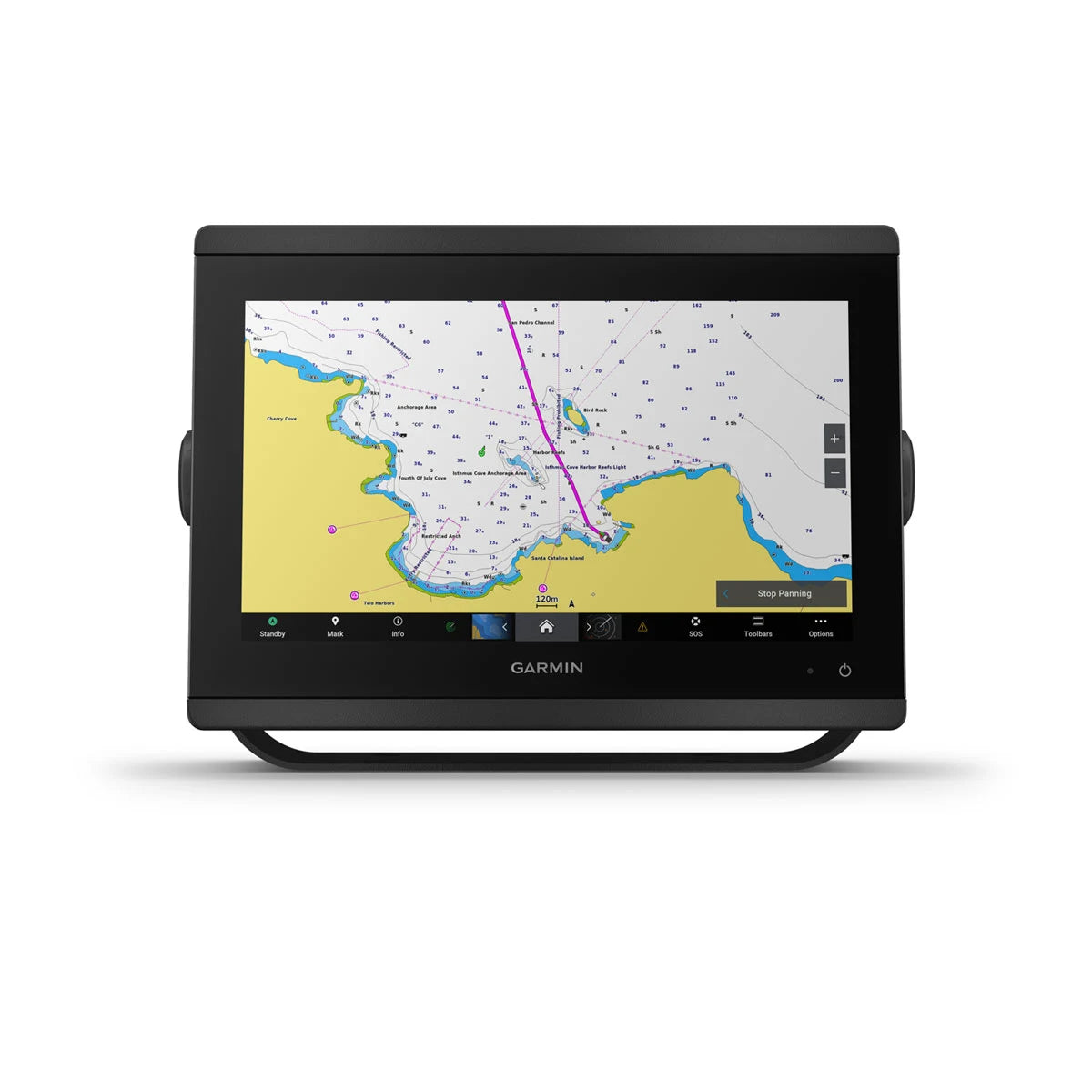

CHART
Give your chartplotter a fresh new look and feel with optional Garmin Navionics+ ™ or premium Garmin Navionics Vision ™ cartography with integrated coastal/inland content, access daily updates, Auto Guidance+ ™ technology 2 and more.
POLAR COORDINATE SYSTEMS FOR SAILING VESSEL NAVIGATION
Use the polar coordinate system to see important data, including how fast you should sail at a specific wind angle and speed — so you know if you need to adjust your sail trim.
Connect to everything on your boat
GARMIN MARINE NETWORK
If you have multiple Garmin devices on your boat, you can share information – such as charts, user data, radar and IP cameras – between them.
NMEA 2000® AND NMEA 0183 NETWORK
Connect to autopilots, digital switching, weather, your FUSION-Link ™ sound system, media, VHF, AIS and much more from one screen.
Activecaptain ® App
Built-in Wi- Fi® connectivity options are paired with the free all-in-one mobile app to access OneChart ™ the function, smart notifications 3 , software updates, Helm, Garmin Quickdraw ™ Community data and much more.
INTEGRATED BLUETOOTH ® AND ANT TECHNOLOGIES
Connect to some of your favorite devices, e.g. quatix® marine watches, gWind ™ Wireless 2 transducers, GNX ™ Wind marine instruments and wireless remote controls.
ONEHELM ™
This function collects all actions and functions from third-party devices, e.g. EmpirBus ™ digital switching, on one screen.
SMARTMODE STATION CONTROL BUTTONS
Get quick access to the information needed to ease stressful situations like docking. You can incorporate networked sonar, radar, cameras, media and more.
POWER-POLE ® LOW WATER ANCHOR
By networking select Garmin chartplotters with a Force ® electric motor and your compatible Power-Pole shallow water anchor system, you can access advanced boat control features 6 from your chartplotter, including auto anchoring, smart anchor push, auto stow, anchor drag detection and anchoring at the end of Auto Guidance 2 route. Spend more time fishing and less time positioning.
CHARGE INTEGRATION FROM POWER POLE
Your CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters to help your battery last longer and last longer in the water. You can charge batteries on the go, monitor power usage, choose where to allocate power, control emergency starting, and even transfer power between battery banks - all from your chartplotter screen.
SEND INREACH ® DEVICE MESSAGES
Pair your inReach satellite communicator 5 to your chartplotter and enter custom messages using the MFD's on-screen keyboard. Access your contact list or enter an email, inReach address, or phone number. You can also group messages by conversation for a text-like experience.
| Generally | |
|---|---|
| Physical size (WxHxD) | 303 x 216 x 76 mm |
| Weight |
2.7 kg |
| Water resistance class |
IPX7 |
| Touchscreen | Yes |
| Display type | FHD, IPS |
| Display size, WxH | 257 x 145mm; 11.6" (295 mm) diagonal |
| Display resolution, WxH | 1920 x 1080 pixels |
| Mounting options | Bracket, flat or flush mount. (Garmin does not provide hardware or accessories for flush mount. Professional tools and knowledge are required.) |
| Supplementary button operation | No |
| Cards and memory | |
|---|---|
| Accepts data cards |
2 SD ™ cards (on the back of the device) |
| Waypoints | 5,000 |
| Track points | 50,000 |
| Running tracks | 50 saved tracks |
| Routes | 100 (250 waypoints each) |
| Sensors | |
|---|---|
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Has built-in receiver | Yes |
| Receiver |
10 Hz GPS/GLONASS/Galileo |
| Compatible with NMEA 2000® | Yes |
| NMEA 0183 compatible | Yes |
| Supports WAAS | Yes |
| Built-in maps | |
|---|---|
| Auto guidance | Yes |
| BlueChart® (coastal) | No |
| LakeVü (country) | No |
| Tide tables | Yes |
| Optional card support | |
|---|---|
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVu g3 Ultra | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Raster map support | Yes |
| Plotter functions | |
|---|---|
| Compatible with Garmin SmartMode (customizable screen presets) | Yes |
| Supports AIS (tracks target ship position) | Yes |
| Supports DSC (displays position data from DSC VHF radio) | Yes |
| Supports FUSION-Link ™ compatible radios | Yes |
| Supports GSD ™ black box sonar | Yes |
| Supports GCV ™ black box sonar | Yes |
| Compatible with ActiveCaptain |
Yes |
| Compatible with GRID™ (Garmin Remote Input Device) | Yes |
| Wireless remote control | Yes |
| Sailing features | Yes |
| Spoken audio alarms | Yes |
| OneHelm™ support | Yes |
| Electric | |
|---|---|
| Power supply | 10-32 Vdc |
| Typical power consumption at 12 V DC | 1.3 A |
| Maximum power consumption at 12 V DC | 6.0 A |
| Maximum power consumption at 10 V DC | 45W |
| Sonar Features and Specifications | |
|---|---|
| Showing sonar | Yes |
| Output power | 1kW |
| Traditional sonar (dual frequency/beam) | Built-in (dual-channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | Yes |
| LiveScope | Yes |
| Connections | |
|---|---|
| NMEA 2000® ports | 1 |
| NMEA 0183 input ports |
1 differential |
| NMEA 0183 output ports (Tx) | 1 |
| Video input ports |
1 BNC composite 1 HDMI (HDCP compatible) |
| Video output ports |
1 HDMI |
| J1939 ports | 1 |
| Garmin Marine Network™ ports |
2 |
| 8-pin transducer ports | yes |
| 12-pin transducer ports | yes |
| USB ports | Yes |
| BNC port for external antenna | No |
| Bluetooth® call | Yes |
| ANT+™ (connection) | Yes |
| Garmin Wi-Fi® network (local connection) | Yes |
In the box
- GPSMAP® 8412xsv
- Power cable
- NMEA 2000® drop cable
- NMEA 2000 T-connector
- Mounting bracket with thumb screws
- Flush mounting kit
- Front cover
- Front frame
- Quick guide
