Garmin GPSMAP 9022 with global basemap

Save 2%
Mærke: Garmin SKU: 010-02674-00

Price:
Sale price102.900,00 kr Regular price104.649,00 kr

Description

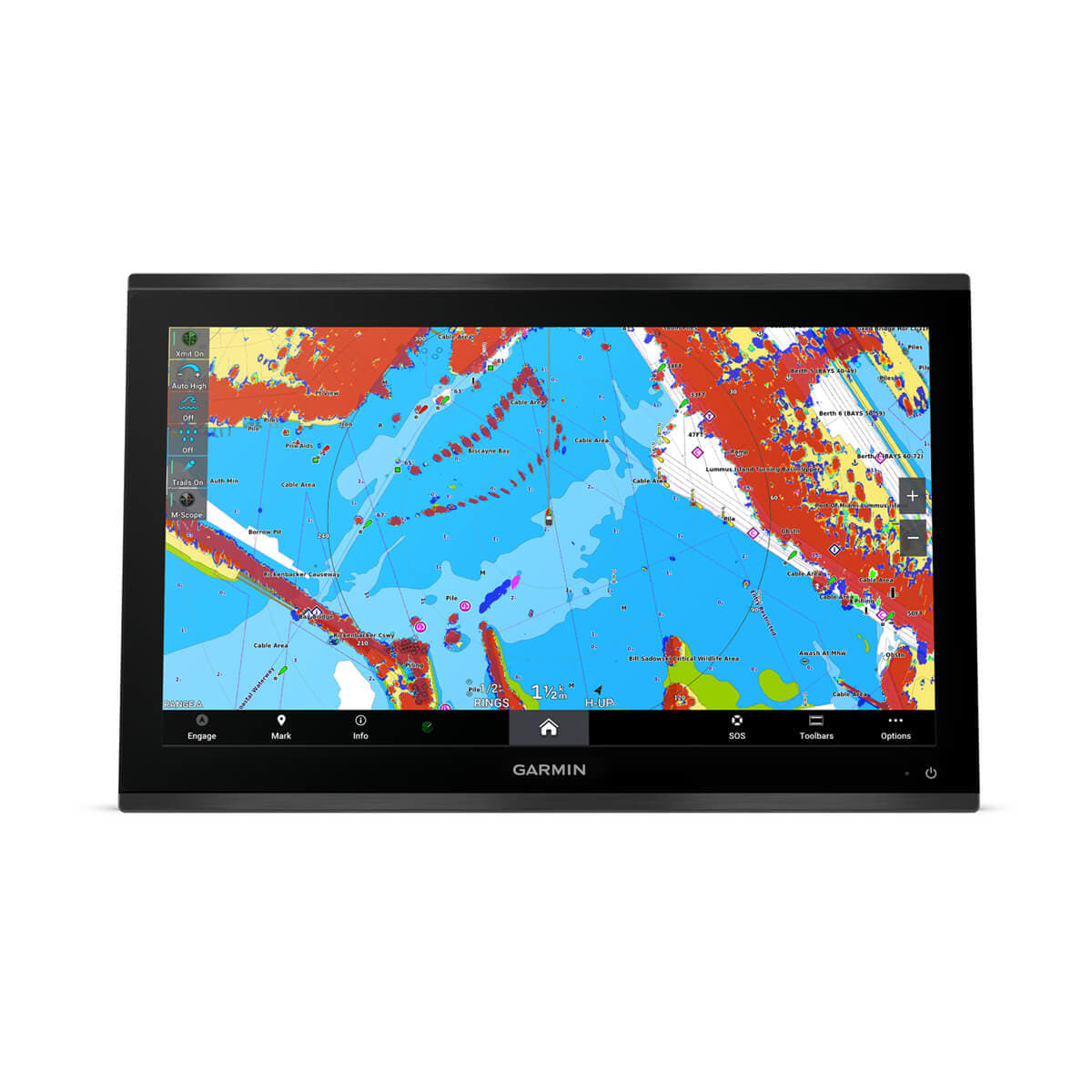

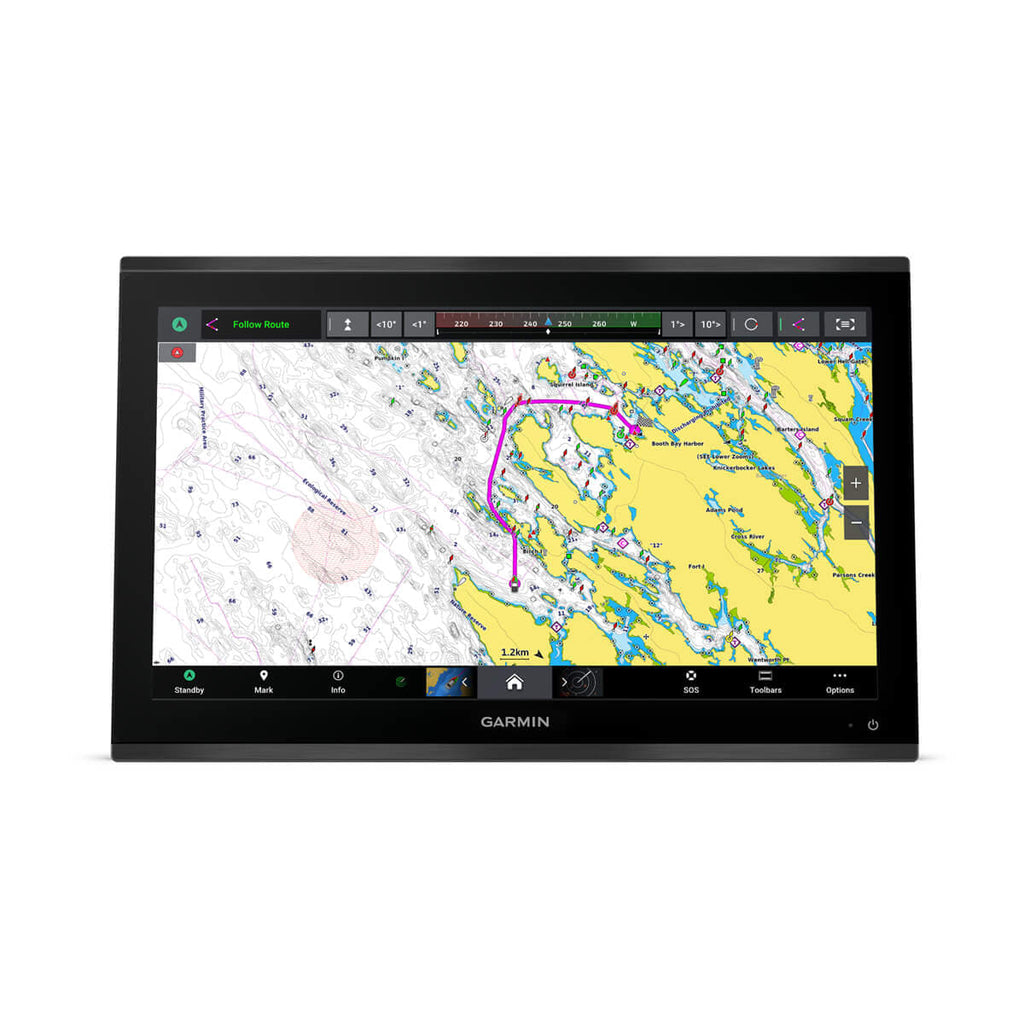

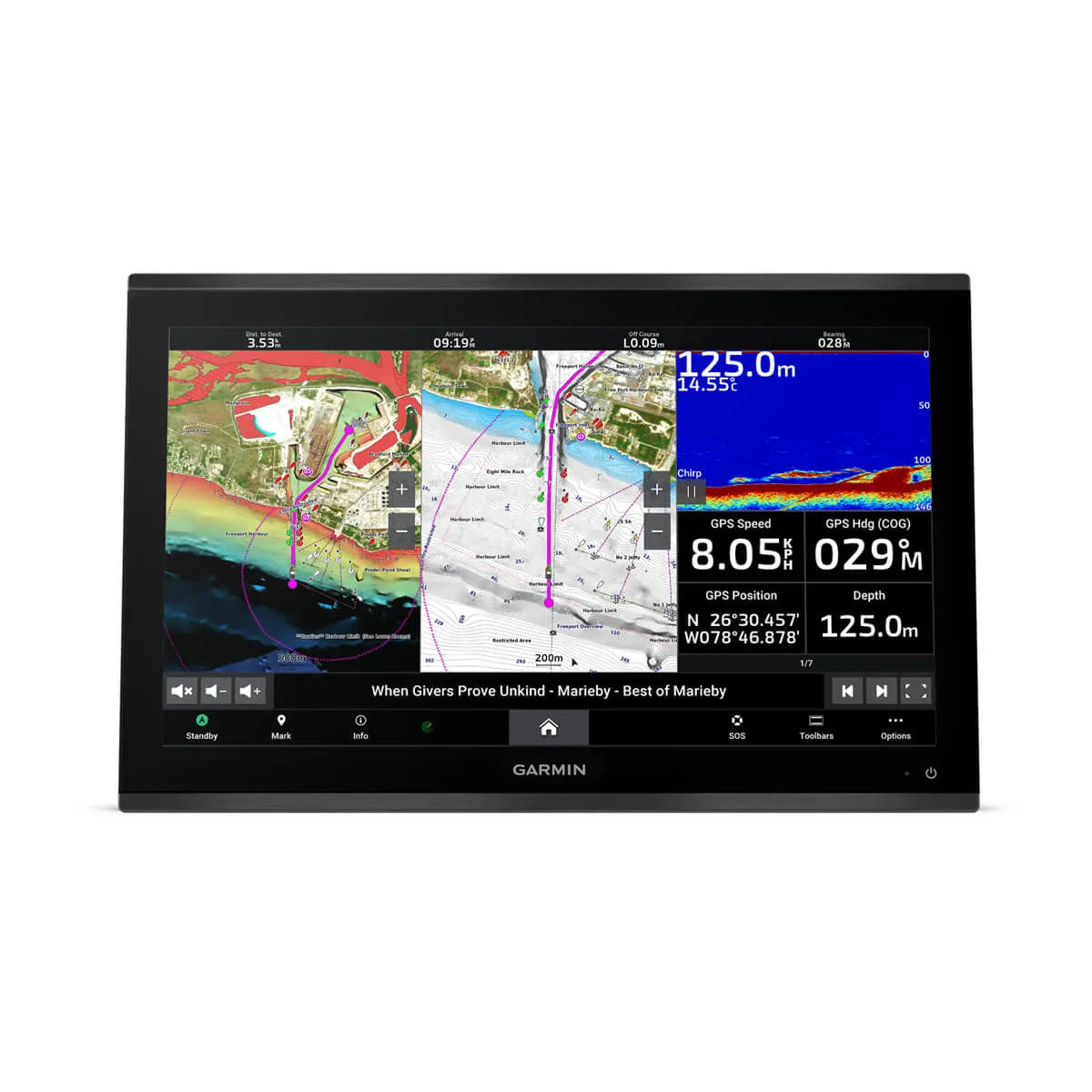

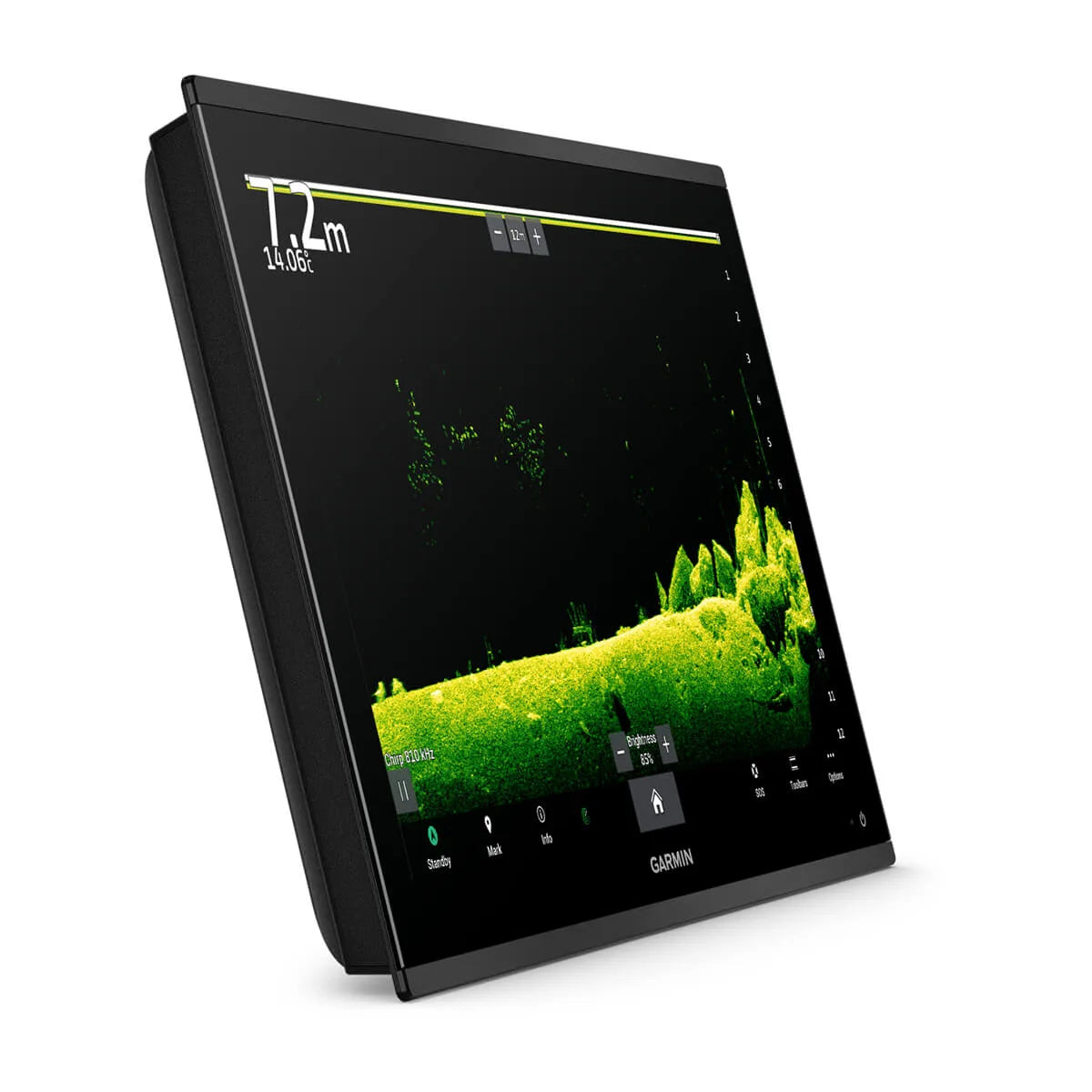

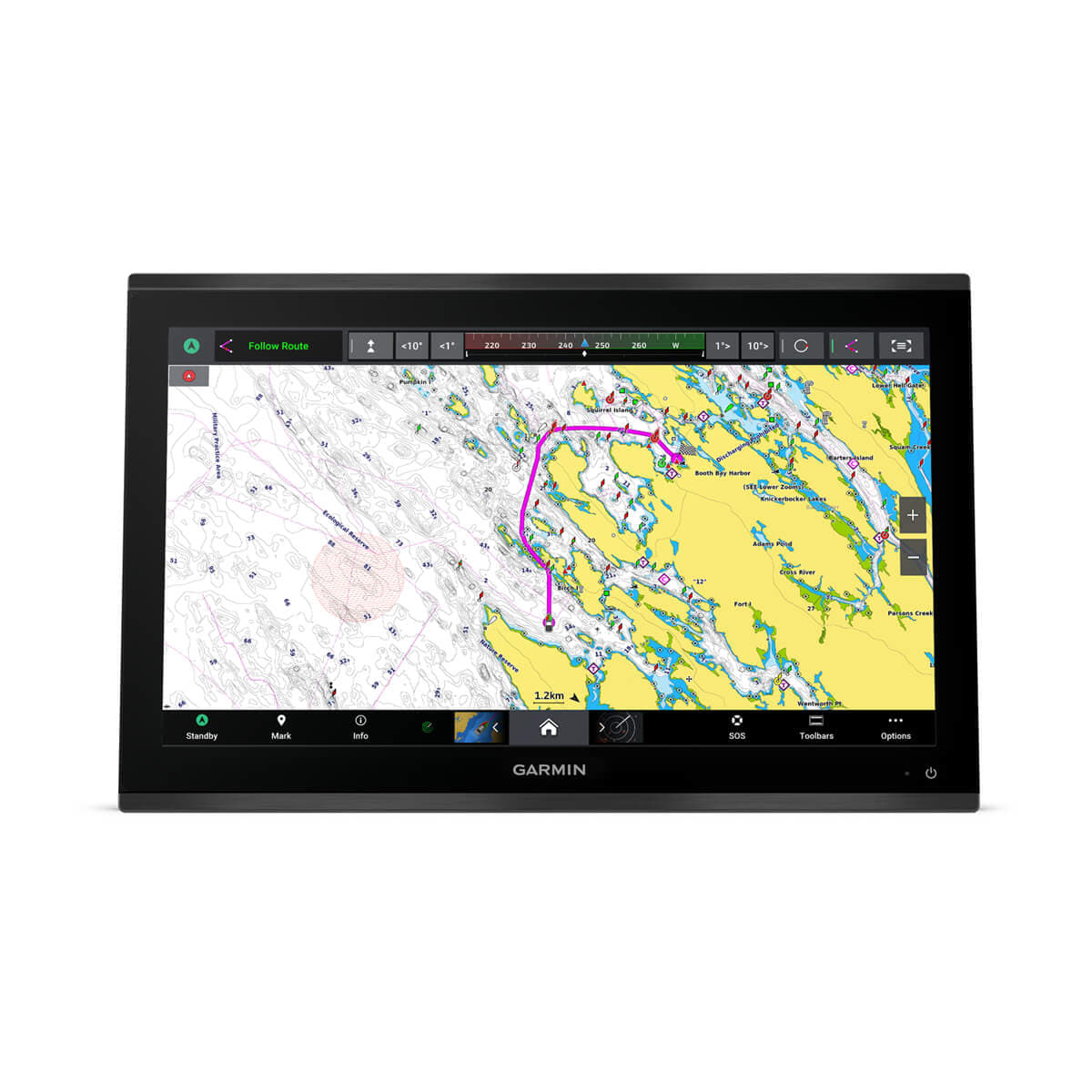

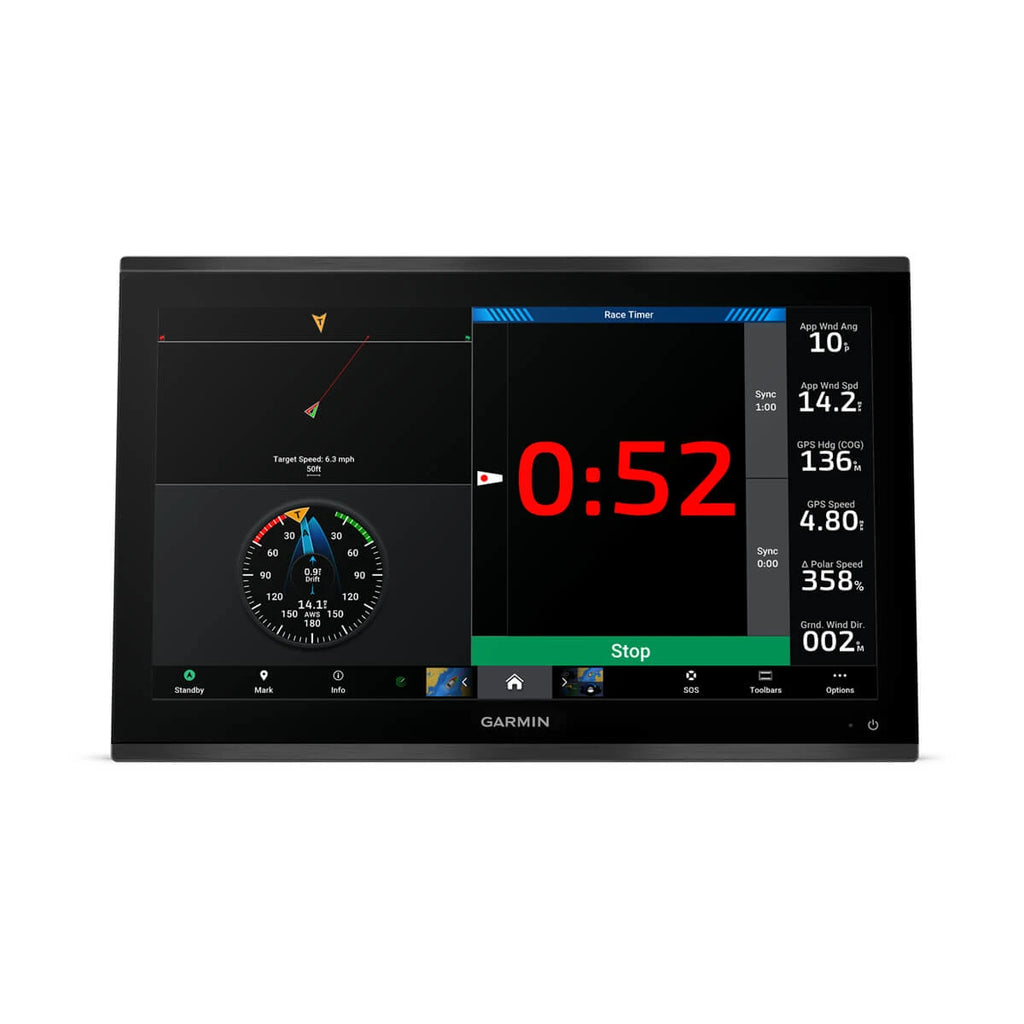

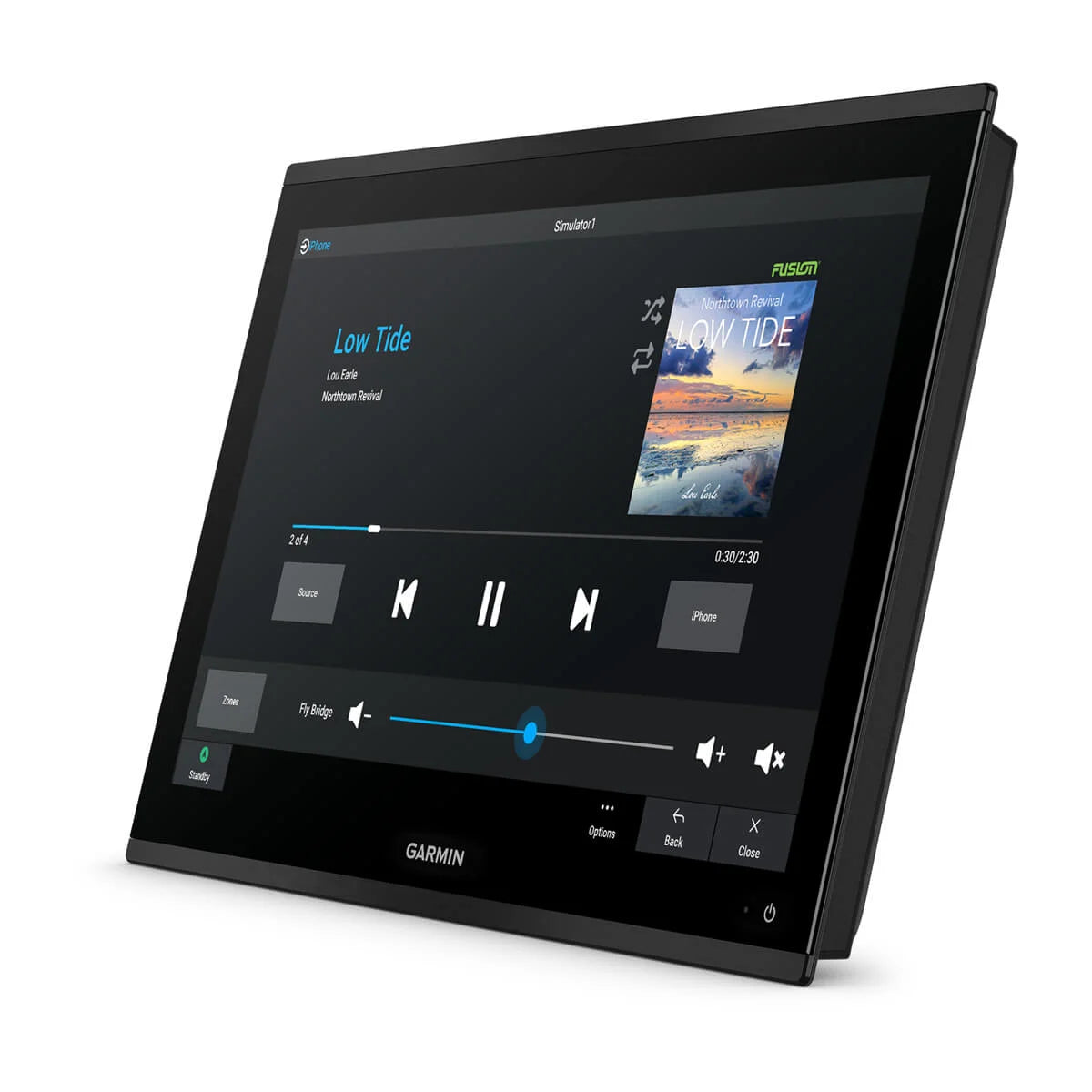

The Garmin GPSMAP® 9022 is an uncompromising 22″ 4K premium chartplotter for large powerboats and luxury yachts, where overview, performance, and design must go hand in hand. The massive IPS touchscreen with 4K resolution provides an extremely sharp display of charts, radar, cameras, and system data – even in direct sunlight – and is a perfect fit for modern glass-helm stations.

With Garmin BlueNet™, you get network speeds up to 10x faster than previous generations, which means lightning-fast updates for charts, sonar, cameras, and system information – without lag, even in large setups with many devices. The GPSMAP 9022 is designed to be the heart of the boat’s electronic system, with integration for radar, autopilot, engine monitoring, cameras, digital switching, and advanced sonar solutions via GSD™/GCV™ black box modules as well as Panoptix™ and LiveScope™.

The chartplotter is ready for Garmin Navionics+™ and Navionics Vision+™ (sold separately), allowing you to add Auto Guidance+™, detailed depth contours, relief shading, and satellite imagery. The included external GPS 24xd antenna delivers extremely precise position and heading updates 10 times per second for fluid movement and high precision during navigation and maneuvering.

Through full NMEA 2000® and NMEA 0183 integration, engines, fuel, sensors, audio systems, autopilot, cameras, and much more can be centralized and controlled. The GPSMAP 9022 also supports ActiveCaptain®, Bluetooth®, ANT®, Wi-Fi®, voice commands, smartwatch integration, and the Surround View camera system. An IPX7-rated construction, heavy-duty connections, and professional-grade hardware make it ideal for demanding marine environments.

Did you know

... that you can see our large Garmin exhibition and try out Garmin products on our "Showboat" in our large boat equipment store, located at Bådebyggervej 1 in Næstved. Furthermore, many of our items can be ordered online and picked up in our self-service stores locally in Danish harbors.

See more here: Self-service stores

Installation

Have your Garmin equipment installed by our skilled specialists - call us at 71 99 77 79 so we can find a solution together.

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Garmin GPSMAP 9022 with global basemap
Garmin GPSMAP 9022 with global basemap Item no. 010-02674-00

Description

Model: Garmin GPSMAP® 9022
Produkttype: Premium 22″ 4K kortplotter (uden indbygget ekkolod)
Baggrundskort: Globalt baggrundskort
Fysiske mål (B x H x D): 52,9 x 34,6 x 6,9 cm (20,8″ x 13,6″ x 2,7″)
Vægt: 7,96 kg
Vandtæthedsklasse: IPX7
Touchscreen: Ja
Skærmtype: 4K IPS, læsbar i sollys
Skærmstørrelse (B x H, diagonal): 47,5 x 26,7 cm; 54,5 cm / 21,5″ diagonal
Skærmopløsning: 3840 x 2160 pixel
Montering: Planmonteret eller forsænket
Betjening: Touchscreen

Kort og hukommelse:
Datakort: 2 x microSD™
Kompatibel Garmin SD-kortlæser: Ja
Waypoints: 5.000
Sporpunkter: 50.000
Gemte spor: 50
Ruter: 100

GNSS og sensorer:
Positioneringssystemer: GPS, GLONASS, Galileo, BeiDou
Indbygget modtager: Nej (GPS 24xd ekstern antenne/receiver medfølger)
Opdateringshastighed: 10 Hz
WAAS/EGNOS: Ja
Multi-bånd GNSS: Ja

Kort og kartografi (tilvalg):
Garmin Navionics+™: Ja
Garmin Navionics Vision+™: Ja
Garmin Quickdraw Contours: Ja
Legacy BlueChart g3 / LakeVü g3: Nej
Rasterkort: Nej

Netværk og integration:
Garmin BlueNet™: 4 porte (gigabit netværk)
NMEA 2000®: 1 port
NMEA 0183: 1 ind / 1 ud
J1939: 1 port
AIS-understøttelse: Ja
DSC-understøttelse: Ja
Fusion-Link™: Ja
Garmin SmartMode™: Ja
ActiveCaptain®: Ja
OneHelm™: Ja
Surround View support: Ja
Motorintegration: Ja

Ekkolod (via black box):
Viser ekkolod: Ja (ekstern modul nødvendig)
Traditionelt ekkolod: Ja via GSD™ black box
ClearVü: Ja via GCV™ black box
SideVü: Ja via GCV™ black box
Panoptix™: Ja
LiveScope™: Ja

Tilslutninger:
Videoindgange: 1 x BNC, 2 x HDMI (HDCP)
Video udgang: 1 x HDMI
Garmin BlueNet porte: 4
USB: 2 x USB-C
Bluetooth®: Ja
ANT®: Ja
Wi-Fi®: Ja
Ekstern antenne BNC: Nej
Lydudgang: Ja

Strøm:
Forsyning: 10 – 35 V DC
Typisk forbrug ved 12 V: 5,2 A
Maks. forbrug ved 12 V: 5,7 A
Maks. effektforbrug ved 10 V: 68 W

Sejl- og funktioner:
Garmin SailAssist™: Ja
Talte alarmer: Ja
Stemmekommandoer: Ja
Smartwatch-integration: Ja
Trådløs fjernbetjening: Ja
