Garmin GPSMAP® 9013xsv

Save 2%
Mærke: Garmin SKU: 010-03176-02

Price:
Sale price41.900,00 kr Regular price42.649,00 kr

Description

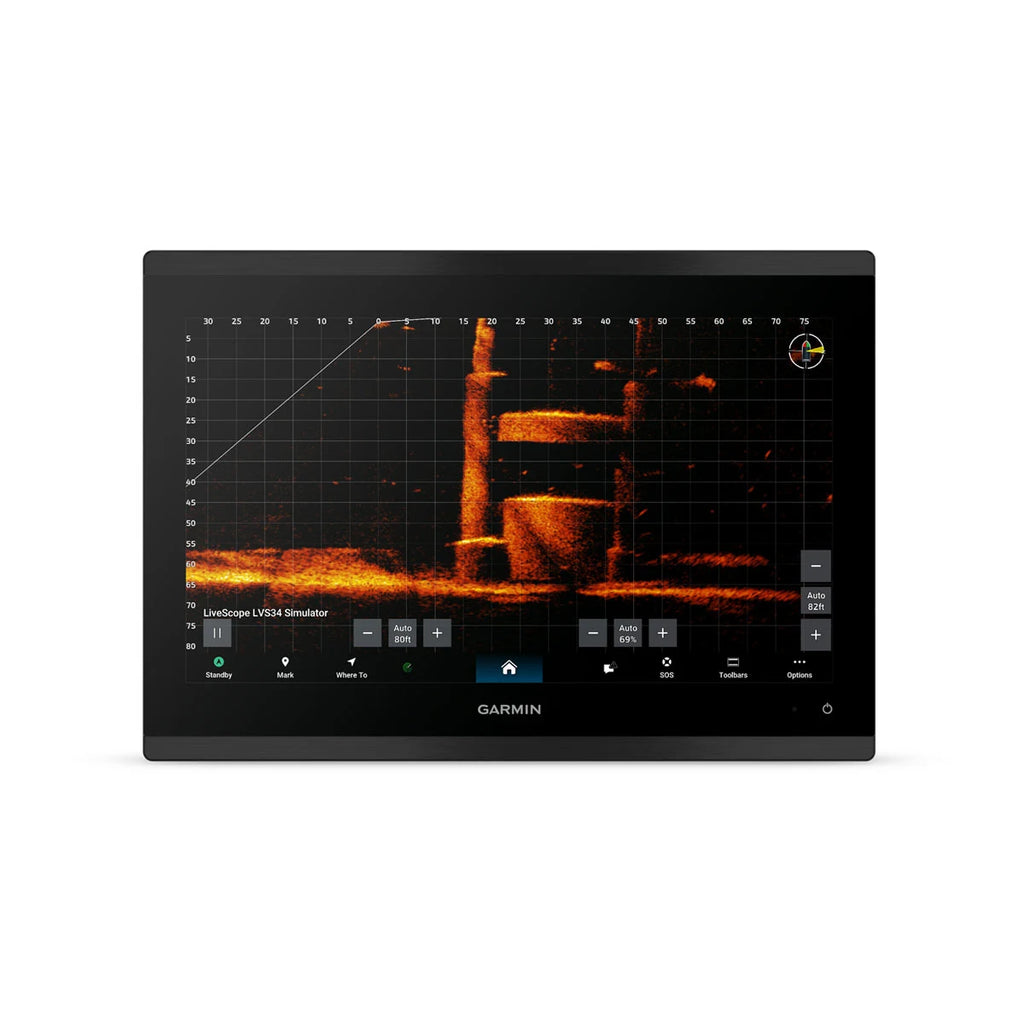

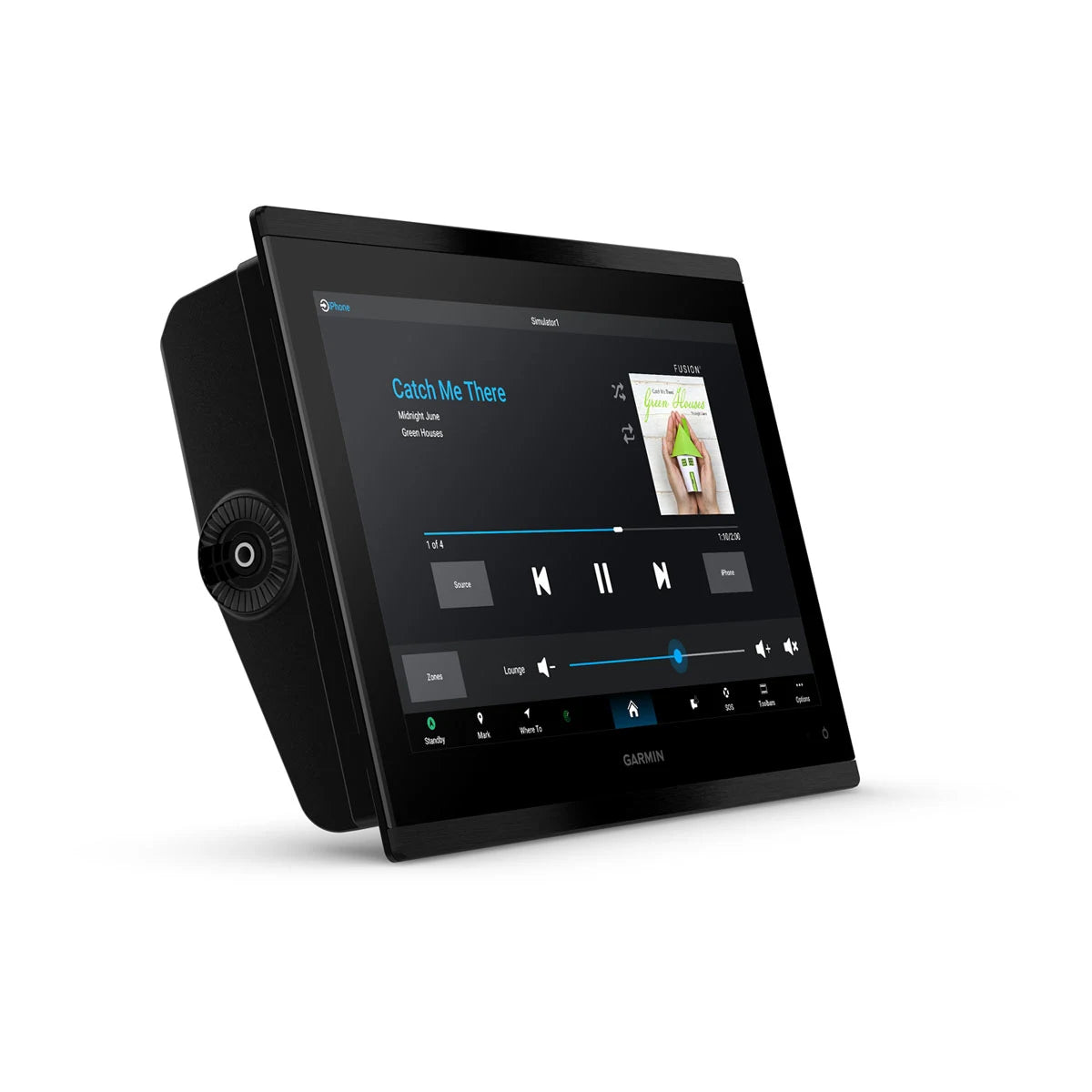

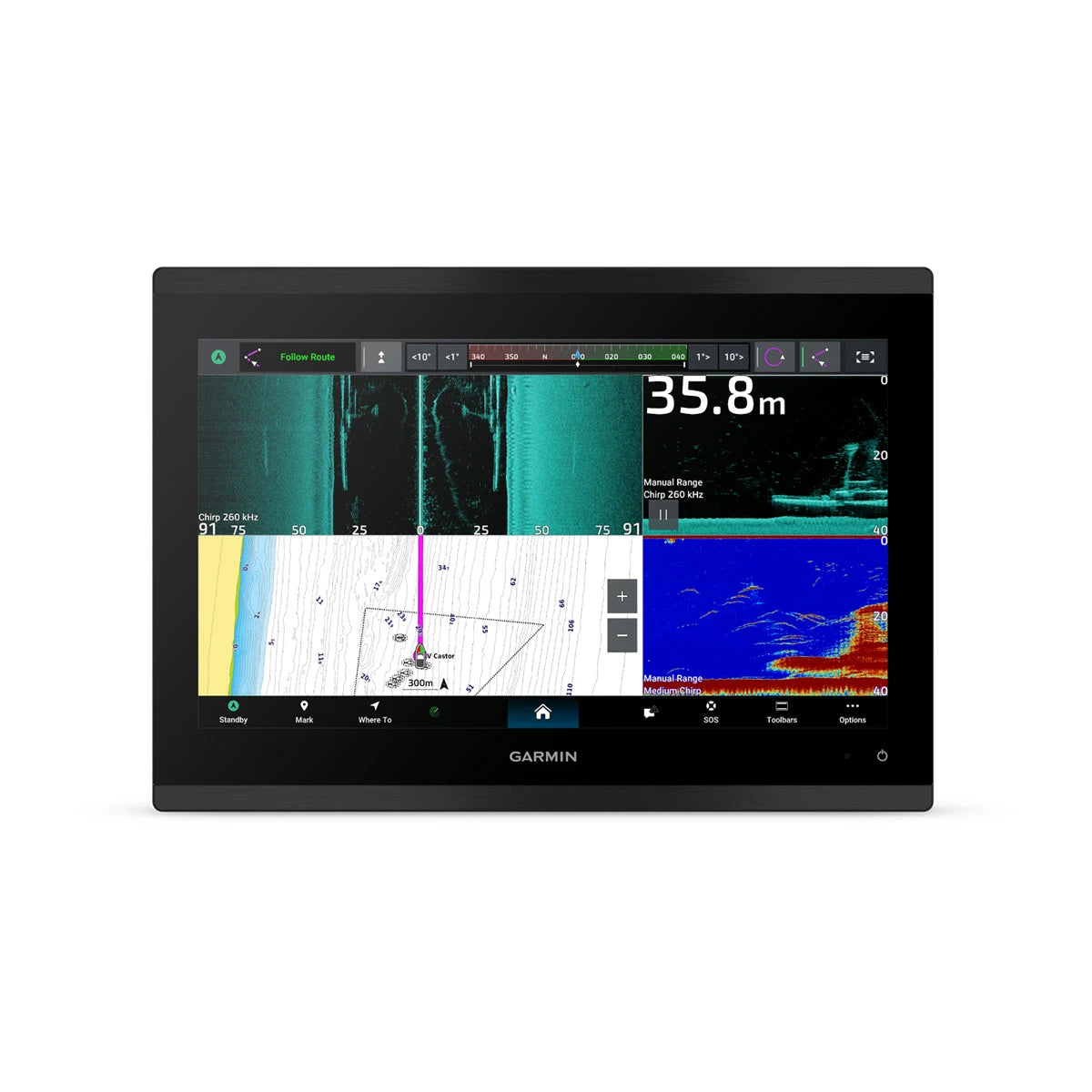

The Garmin GPSMAP® 9013xsv is the flagship for those who want maximum control, clarity, and fishing performance at the helm. The large 13″ 4K IPS touchscreen with mini LED backlighting provides an extremely sharp and bright rendering of charts, sonar, and video sources – even in bright sun and with polarized sunglasses. The edge-to-edge glass design with flush mounting creates a clean, modern look that fits perfectly in both new and upgraded helms.

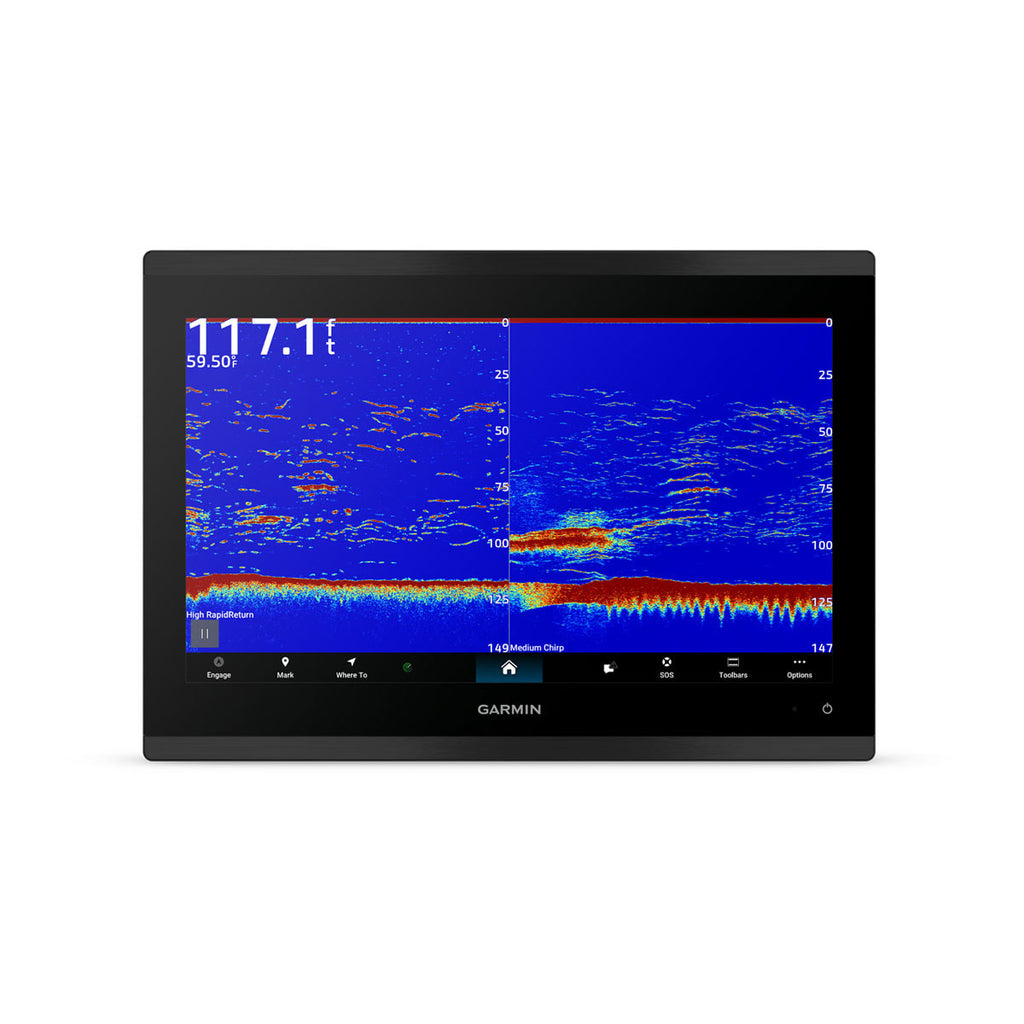

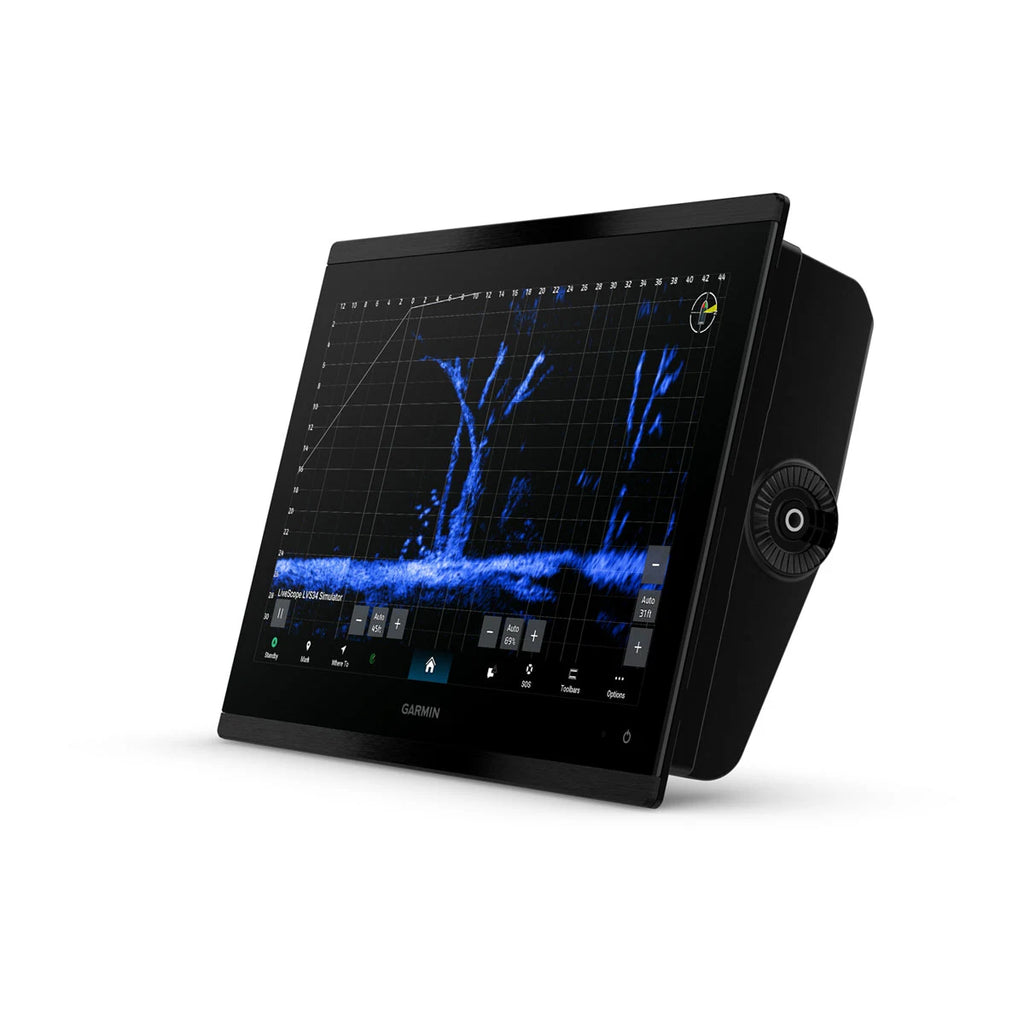

Built-in 1 kW dual-channel sonar with xCHIRP and Garmin RapidReturn™ provides lightning-fast updates and superb target separation, so you can clearly distinguish fish, bottom structure, and baitfish – even at high speeds. The GPSMAP 9013xsv supports ClearVü and SideVü (via compatible black box/transducer), Panoptix™, and LiveScope™, allowing you to tailor your sonar system for everything from deep-sea wreck fishing to precision casting in shallow water.

With the Garmin BlueNet™ gigabit network, NMEA 2000®, and NMEA 0183, you can build a fully integrated marine system with multiple chartplotters, radar, cameras, autopilot, engine monitoring, Fusion-Link™ audio system, digital switching, and much more – all controlled from the GPSMAP 9013xsv. The built-in multi-band GNSS receiver (GPS, GLONASS, Galileo, BeiDou) updates position 10 times per second and provides precise routing and waypoint accuracy.

Wireless connectivity via Wi-Fi®, Bluetooth®, and ANT® makes it easy to use the ActiveCaptain® app for software updates and route planning, connect compatible Garmin watches, remote controls, and accessories, or control the plotter with voice commands via a headset or quatix® smartwatch. The GPSMAP 9013xsv is IPX7-rated and built for the harsh marine environment, giving you a robust, premium solution for serious sailors, cruisers, and hardcore anglers.

Did you know

... that you can see our large Garmin exhibition and try out Garmin products on our "Showboat" in our large boat equipment store, located at Bådebyggervej 1 in Næstved. Furthermore, many of our items can be ordered online and picked up in our self-service stores locally in Danish harbors.

See more here: Self-service stores

Installation

Have your Garmin equipment installed by our skilled specialists - call us at 71 99 77 79 so we can find a solution together.

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Garmin GPSMAP® 9013xsv
Garmin GPSMAP® 9013xsv Item no. 010-03176-02

Description

Fysisk størrelse: 33,5 x 23,4 x 9,1 cm (13,2″ x 9,19″ x 3,56″)
Vægt: 4,13 kg
Vandtæthed: IPX7 (tåler kortvarig nedsænkning)
Touchscreen: Ja, kapacitiv
Displaytype: 4K IPS-display med mini LED-baggrundsbelysning (lokal dæmpning)
Skærmstørrelse: 29,4 x 16,5 cm, 33,7 cm (13,27″) diagonalt
Skærmopløsning: 3840 x 2160 pixel
Montering: Bøjlemonteret, planforsænket eller planmonteret
Supplerende knapper: Ingen, fuld touchscreen-betjening
Polariseret objektivsynlighed: Ja

Kort og hukommelse:
Datakort: 2 x microSD™ (på bagsiden af enheden)
Kompatibel med USB-kortlæser: Ja
Waypoints: Op til 5.000
Sporpunkter: Op til 50.000
Gemte spor: 50
Ruter: Op til 100 ruter

GNSS og sensorer:
Satellitsystemer: GPS, GLONASS, Galileo, BeiDou
Opdateringsfrekvens: 10 Hz GNSS-modtager
Indbygget modtager: Ja
Understøtter WAAS: Ja
Understøtter multi-bånds GPS og flere satellitkonstellationer: Ja

Kortunderstøttelse:
Indbyggede kort: Ingen forudindlæste Garmin Navionics+ kort
Auto guidning/Auto Guidance+: Nej (indbygget)
Tidevandstabeller: Nej
Valgfrie kort: BlueChart g3, BlueChart g3 Vision, LakeVü g3, LakeVü g3 Ultra, Garmin Navionics+™, Garmin Navionics Vision+™, TOPO 100K og standardkortlægning
Garmin Quickdraw Contours: Understøttet
Rasterkort: Understøttet

Plotter- og netværksfunktioner:
Garmin SmartMode™ (tilpassede skærmprofiler): Ja
AIS-understøttelse: Ja, viser målskibes position (kræver kompatibel AIS-enhed)
DSC-understøttelse: Ja, viser positionsdata fra DSC VHF-radio
Fusion-Link™ kompatible radioer: Understøttet
GSD™ black box-ekkolod: Ikke understøttet
GCV™ black box-ekkolod: Understøttet
ActiveCaptain® kompatibel: Ja (trådløst via Wi-Fi)
Stemmekommandoer: Understøttet (via kompatibelt udstyr)
GRID™/GRID 20 fjernbetjening: Kompatibel
Trådløs fjernbetjening: Understøttet
Sejlfunktioner: Ja, inkl. Garmin SailAssist™
Talte lydalarmer: Ja
OneHelm™-integration: Ja (digital switching og tredjepartssystemer)

Elektrisk:
Forsyningsspænding: 10–32 V DC
Typisk strømforbrug ved 12 V: 4,7 A
Maksimalt strømforbrug ved 12 V: 5,4 A
Maksimalt strømforbrug ved 10 V: 63 W

Ekkolod:
Viser ekkolod: Ja, indbygget xsv
Udgangseffekt: Op til 1 kW
Traditionelt ekkolod: Ja, dobbelt 1 kW (dobbeltfrekvens/stråle, afhænger af transducer)
Indbygget xCHIRP: Understøttet
Garmin RapidReturn™: Understøttet (op til 2x)
ClearVü: Understøttet (via kompatibel transducer/black box)
SideVü: Understøttet (via kompatibel transducer/black box)
Panoptix™: Understøttet
LiveScope™: Understøttet
Panoptix LiveScope LVS12: Ikke understøttet

Tilslutninger:
NMEA 2000® porte: 1 (backbone-tilslutning til motorer, sensorer, autopilot m.m.)
NMEA 0183 indgange: 1
NMEA 0183 udgange (Tx): 1
Videoindgange: 1 x BNC komposit, 1 x HDMI (HDCP-kompatibel)
Video udgang: 1 x HDMI
J1939 port: 1 (motor- og systemintegration)
Garmin BlueNet marinenetværksporte: 2 (gigabit-netværk til radar, flere plottere, ekkolod m.m.)
USB-porte: 1 x USB-C
BNC-port til ekstern antenne: Nej
Bluetooth®: Ja (lyd, kontrol og tilbehør)
ANT®: Ja (Garmin ure, sensorer, fjernbetjeninger)
Garmin Wi-Fi® (lokal forbindelse): Ja, 2,4 GHz og 5 GHz
Lydudgang: Ja (til integration med lydsystem)
