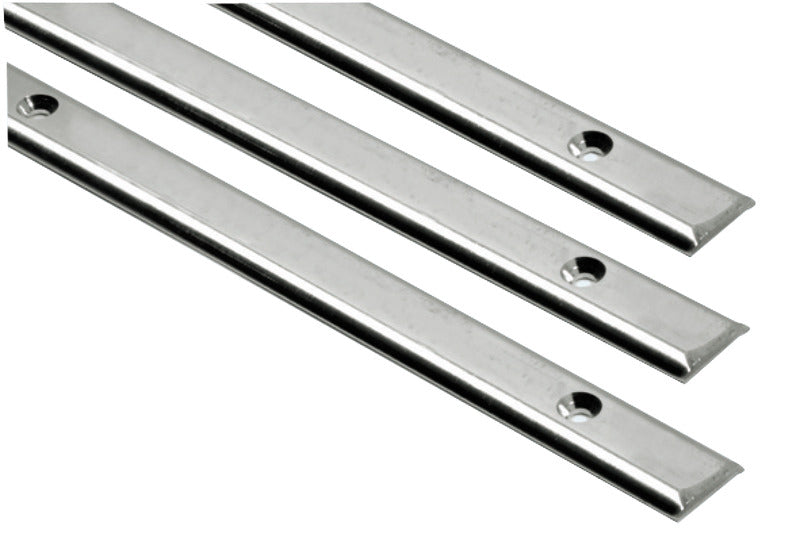

Half-round profile in mirror-polished AISI 316 stainless steel for marine fender and edge protection. This variant has a width of 14 mm, a height of 4 mm, and is supplied as a 3 m long profile rail.
The half-round design provides a rounded surface along the mounted edge. AISI 316 stainless steel and the mirror-polished finish make the profile suitable for visible installations in maritime environments.
The profile is pre-drilled with 4.25 mm mounting holes and 7.5 mm countersinks. The holes are spaced at 185 mm center-to-center, so the profile is prepared for installation with countersunk screws.

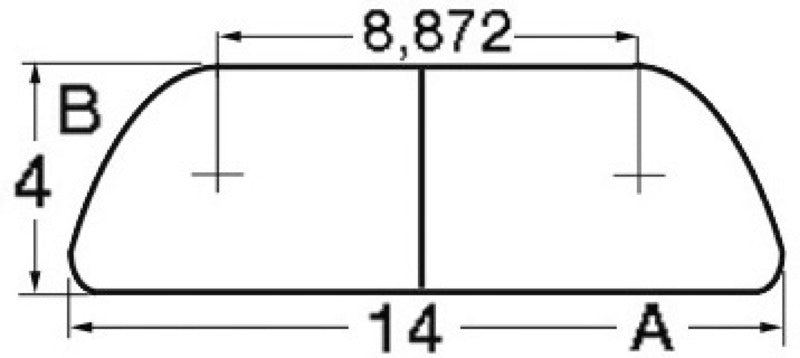

The linear weight is 410 g/m, which corresponds to 1.23 kg for a 3 m profile. The documented cross-section of the profile is 14 mm in width and 4 mm in height.
Key featuresHalf-round profile for fender and edge protection
AISI 316 stainless steel
Mirror-polished surface
3 m long profile rail
Cross-section of 14 × 4 mm
Pre-drilled and countersunk mounting holes
185 mm hole spacing, center to center
4.25 mm hole diameter and 7.5 mm countersink diameter
Linear weight of 410 g/m
