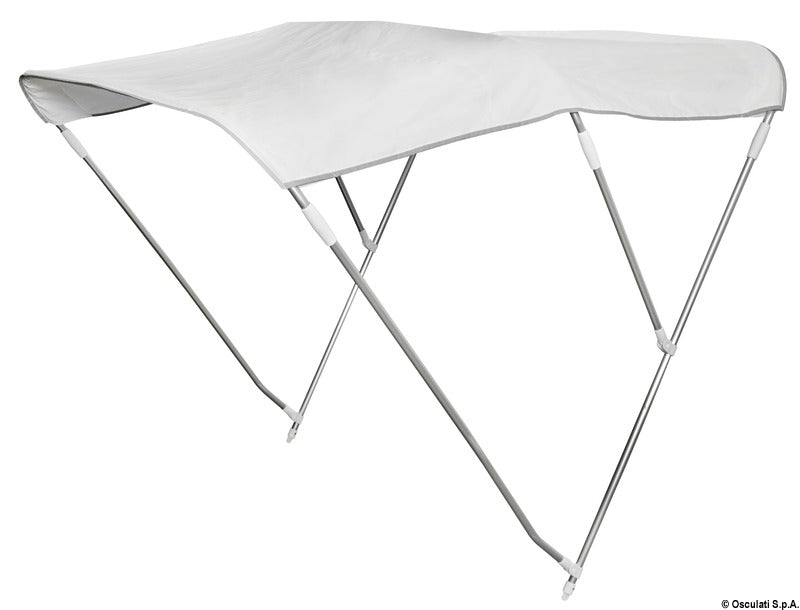

Tall collapsible 3-bow bimini in white provides sun protection over the boat's cockpit or seating area. This variant is intended for a mounting width of 170-180 cm and has a top frame width of 158 cm, a height of 140 cm, and a depth of 180 cm.
The frame consists of three bows made of anodized aluminum tubes with a diameter of 22 mm. The tall design provides 140 cm from the mounting level to the top of the bimini, while the depth of 180 cm indicates the coverage in the boat's longitudinal direction.

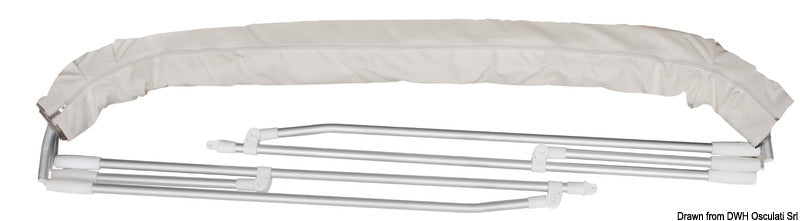

The white fabric is made of 600D polyester/polyurethane. The fabric is waterproof and UV-resistant, making it suitable as an open sunshade in a maritime environment. When the bimini is folded, the fabric can be protected in the included zippered storage bag.
The bimini is mounted at two lower side points and stabilized with straps or lines fore and aft. Check that the distance between the boat's mounting points is within 170-180 cm and that there is room for the top width of 158 cm, the height of 140 cm, and the depth of 180 cm. This variant is also documented as an accessory for the MARINE 450 Family, 450 Family AR, 450 S, 450 U, and 450 SC, but the mounting width must always be checked on the specific boat.

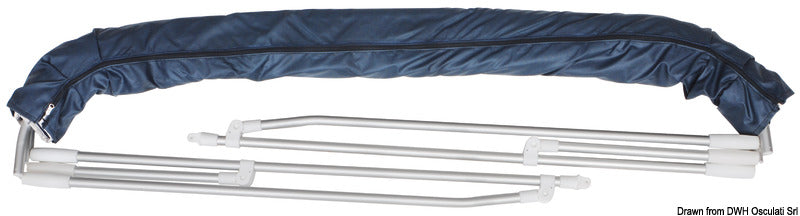

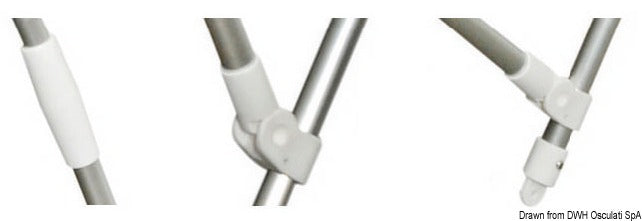

Documented spare parts include tube terminal 46.625.02, rowlock fitting 46.625.03, bushing 46.625.04, angled joint 46.625.05, and arm joint 46.625.06. The parts are made of white nylon, and the relevant tube parts are intended for Ø 22 mm tubes. A navy blue variant with the same dimensions is available under item no. 46.909.51.
Key featuresTall, collapsible 3-bow design
Anodized aluminum frame with Ø 22 mm tubes
Mounting width: 170-180 cm
Top width: 158 cm
Height: 140 cm
Depth: 180 cm
White 600D polyester/polyurethane fabric
Waterproof and UV-resistant fabric
Zippered storage bag included
