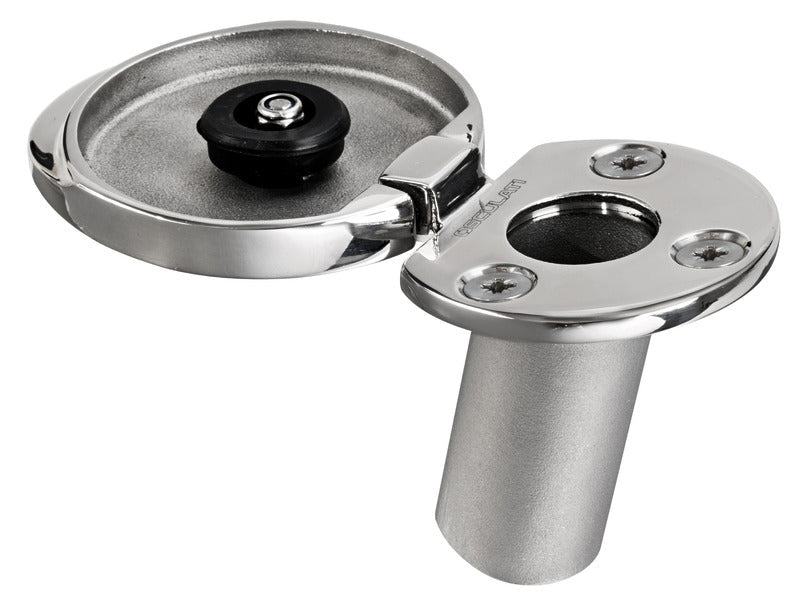

This recessed bushing in AISI 316 stainless steel for the Mickey system is the version with a waterproof cover. It is designed for flush mounting through the deck or a similar mounting surface and serves as an attachment point for a flexible Ø16 mm bimini pole.
The bushing is part of the Mickey system, which is a self-tensioning, modular, and free-standing bimini system. The system can be configured for sun shading or protection against water, while the bushing provides the deck-mounted connection for the associated pole.

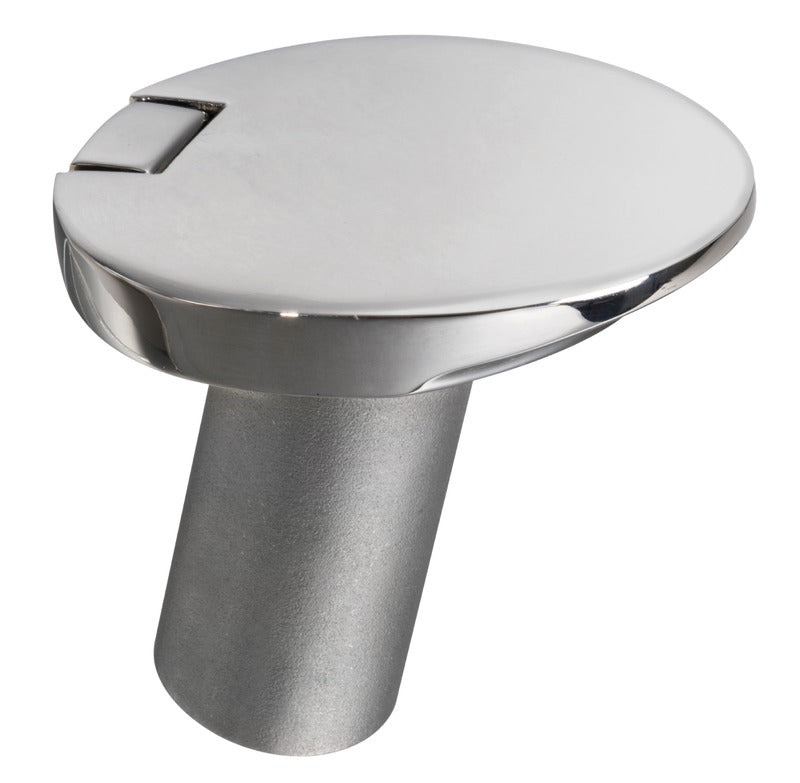

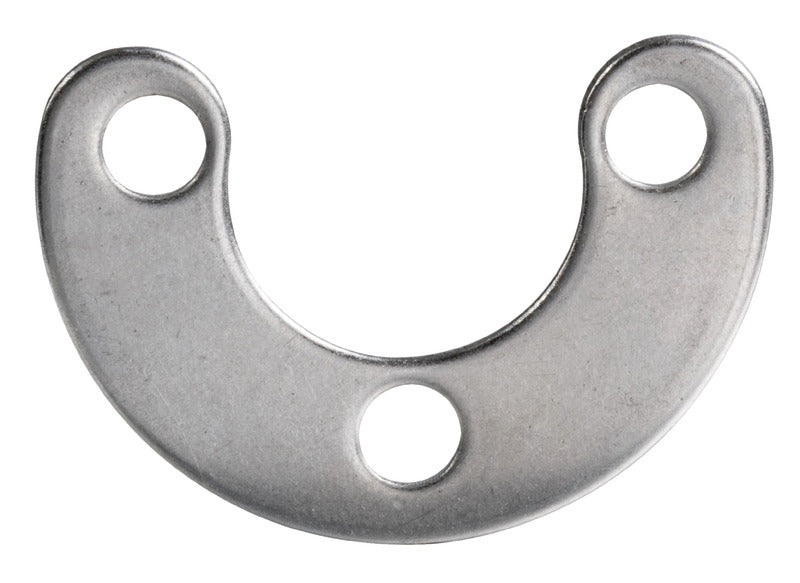

The construction is made of AISI 316 stainless steel and is supplied with a mounting ring for attachment beneath the mounting surface. This variant can be installed in decks or panels with a thickness of 2-50 mm. The waterproof cover distinguishes this variant from the family's versions without a cover and with a swivel cover.

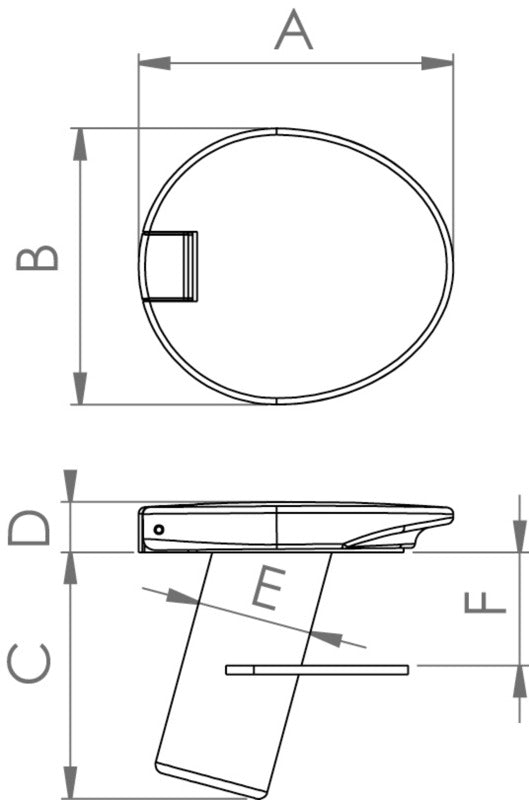

The documented dimensions are A 69 mm, B 62 mm, C 54 mm, D 10 mm, and E 26 mm. The letter measurements refer to the product's dimensional drawing. The bushing is exclusively documented for flexible poles with a diameter of 16 mm.
Separate Ø16 mm Mickey poles are available under item numbers 46.826.14, 46.826.15, 46.826.17, and 46.826.18. Alternative recessed variants are 46.825.00 without a cover and 46.825.01 with a swivel cover. The system also includes the attachment clamp 46.825.09 as well as bushings 46.825.10 and 46.825.11 for mounting on pulpits or railings; these are different component types than the deck-recessed bushing.
Key featuresRecessed bushing for Mickey bimini system
For flexible Ø16 mm bimini pole
Made of AISI 316 stainless steel
With waterproof cover
Fastened with mounting ring
For deck or panel thickness of 2-50 mm
Dimensions A/B/C/D/E: 69/62/54/10/26 mm
