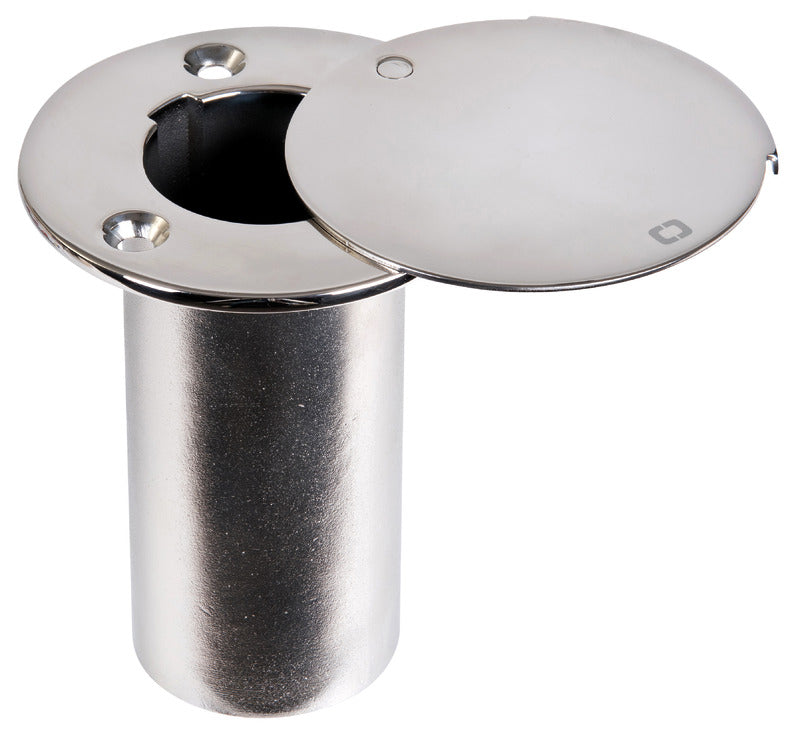

This flush-mount socket for carbon bimini pole with swivel lid is intended for recessed mounting of a removable Ø 38 mm carbon pole in a bimini or sunshade system. The socket has a 6° inclination, allowing the pole to be mounted in an angled position.

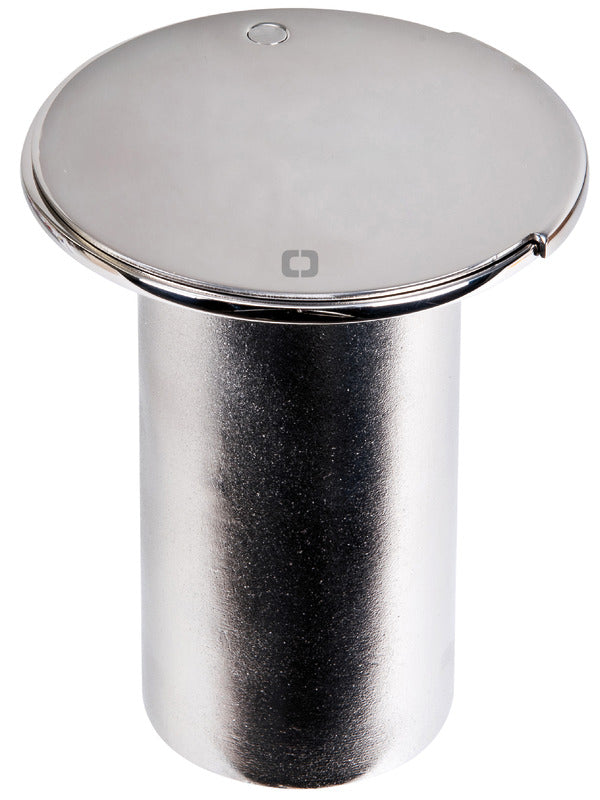

The socket is made of stainless steel and features an integrated swivel lid with 180° rotation. When the carbon pole is removed, the lid can be rotated over the recessed opening, ensuring the socket appears discreet and the opening is protected.
The design is prepared for water drainage via a Ø 12 mm drain hose or drainage pipe. This allows accumulated water to be directed away from the recessed socket. The swivel lid can be supplied with a custom logo upon request.

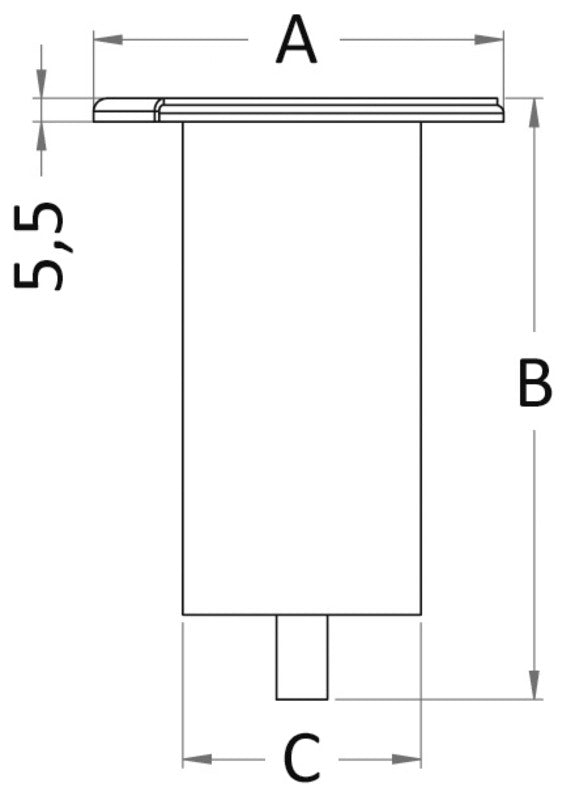

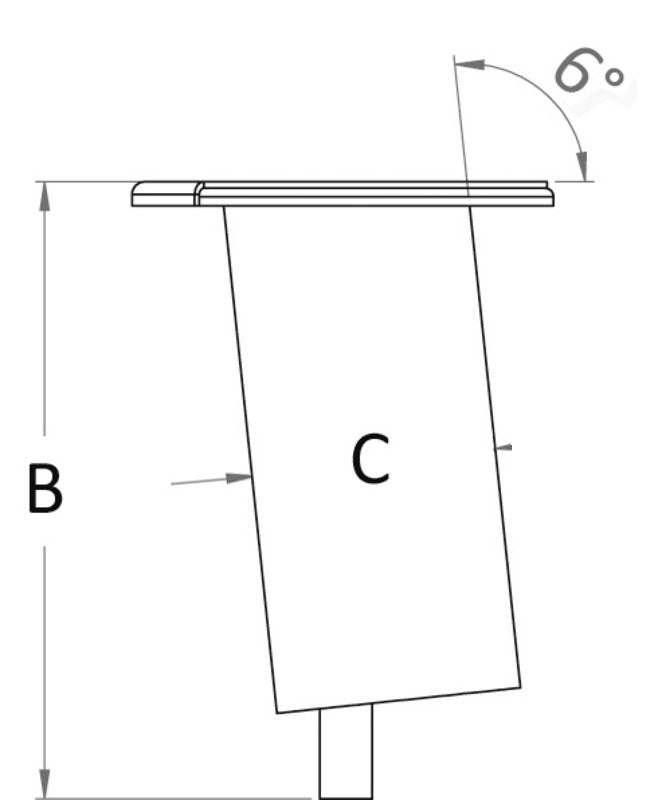

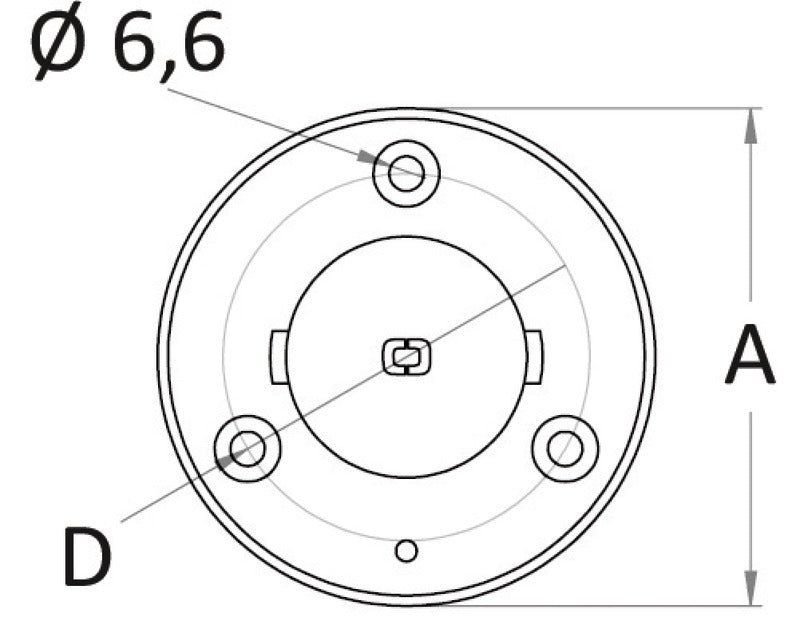

The technical drawing dimensions for this 6° variant are Ø A 95 mm, B 141.5 mm, Ø C 56 mm, and Ø D 74 mm. A, C, and D are diameter measurements, while B is a linear measurement. The socket is mounted flush in a deck or similar horizontal installation surface.
Compatibility and related parts

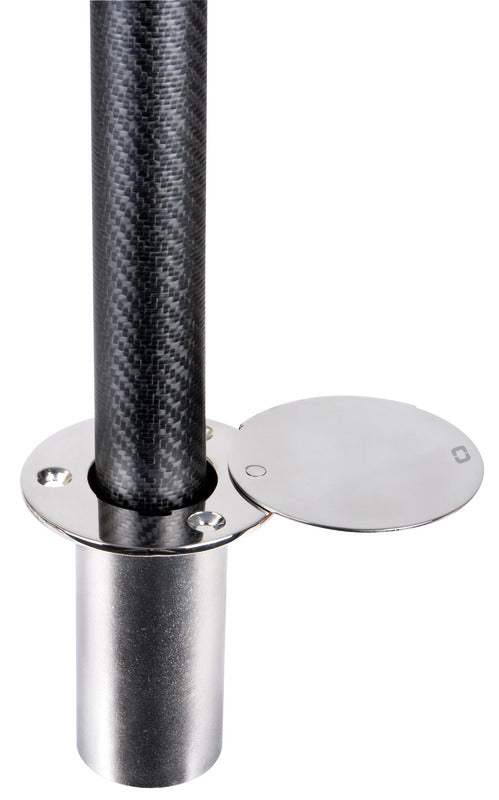

The socket is compatible with Ø 38 mm carbon bimini poles, including fixed poles with item nos. 46.816.02, 46.816.04, 46.816.06, 46.816.07, 46.816.08, and 46.816.10, as well as the two-piece adjustable poles 46.818.09 and 46.818.11. Mounting counter-flange 46.815.90 is documented as an accessory for Ø 38 mm flush-mount sockets and is a separate product.
Key featuresFor Ø 38 mm carbon bimini pole
6° angled design
Flush mounting in deck or horizontal surface
Made of stainless steel
Swivel lid with 180° rotation
Prepared for Ø 12 mm water drainage
Drawing dimensions: Ø A 95 mm, B 141.5 mm, Ø C 56 mm, and Ø D 74 mm
Option for custom logo on the swivel lid
