This IP67 plastic connector housing is a 3-pole male variant for establishing waterproof electrical connections. The connector housing is part of the Seal 2.8 series and is intended for installations where the cable connection must be protected against dust and temporary immersion in water.

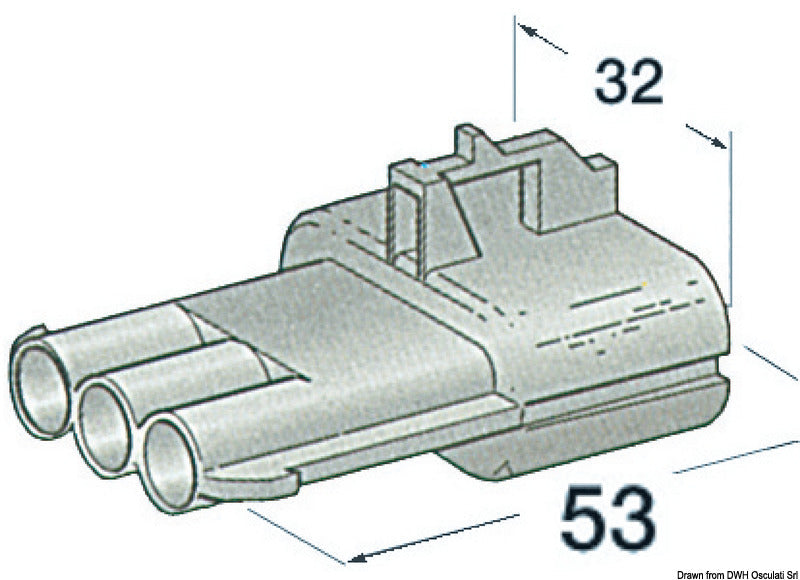

The connector housing is made of black PA66, also known as polyamide 66, and measures 53 mm in length and 32 mm in width. It has space for three separate male terminals and uses the Metripack M280 terminal family. The connector family is rated for cables up to 1.2 mm².
The item includes a pack of 5 connector housings. Brass terminals and cable seals are supplied separately, so the product is not a complete or pre-terminated connector assembly. Male terminal 14.236.45 is mounted in this connector housing, while silicone cable seal 14.236.48 provides sealing around the cable entry and is designed for cable cross-sections of 0.5-1.5 mm².
The corresponding mating half is the 3-pole female connector housing 14.235.50. Female terminal 14.236.46 is used for the female connector housing. This combination makes it possible to build a separable, 3-pole and IP67-rated cable connection with components selected according to the specific installation.
The connector family complies with ISO 15083. The manufacturer number for this 3-pole male variant is 4423560.
Important features3-pole male connector housing
IP67-rated connector
Black PA66 connector housing
Dimensions: 53 × 32 mm
Terminal family: Metripack M280
For cables up to 1.2 mm²
Corresponding female connector housing: 14.235.50
Male terminal 14.236.45 and cable seal 14.236.48 supplied separately
Pack of 5 pcs.
