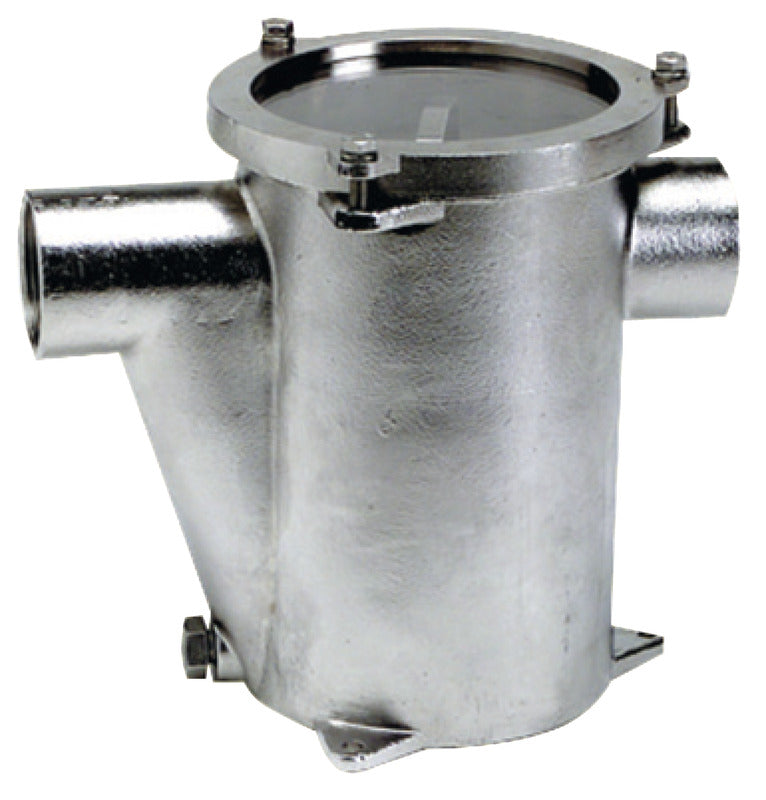

This AISI 316 marine engine cooling water filter is designed for filtering seawater or raw water in the engine's cooling circuit. This variant features 1" BSP female threads on both the inlet and outlet.
The filter's steel construction is made of corrosion-resistant AISI 316 stainless steel. The transparent inspection cover allows for visual checking of the filter contents without first opening the filter housing.
The variant-specific drawing dimensions are L 180 mm, A 123 mm, DF 86 mm, HF 70 mm, and a total height H of 142 mm. DF corresponds to the outer diameter of the filter housing, while HF indicates the height of the filter section.
The filter is designed for fixed, external base mounting. Integrated mounting tabs in the base are used for bolting, and the inlet and outlet ports are located on opposite sides of the filter housing. Connection is made via the internal 1" BSP threads; hose barbs and other fittings are not specified as included.
The transparent inspection cover is covered by RINA declaration DIP 1034/03/CS. The filter is a universal installation component for marine engine raw water-based cooling systems and is not tied to specific engine makes or models.
Key featuresCooling water filter for marine engine raw water circuits
AISI 316 stainless steel construction
Transparent inspection cover for visual check
1" BSP female threads at inlet and outlet
Opposing connection ports
Fixed base mounting with integrated mounting tabs
L-dimension 180 mm and total height 142 mm
RINA declaration DIP 1034/03/CS
