Compact battery switch for manual disconnection and connection of a DC battery circuit. The model is rated for 32 V DC and can handle a continuous load of up to 100 A or an intermittent load of 150 A.

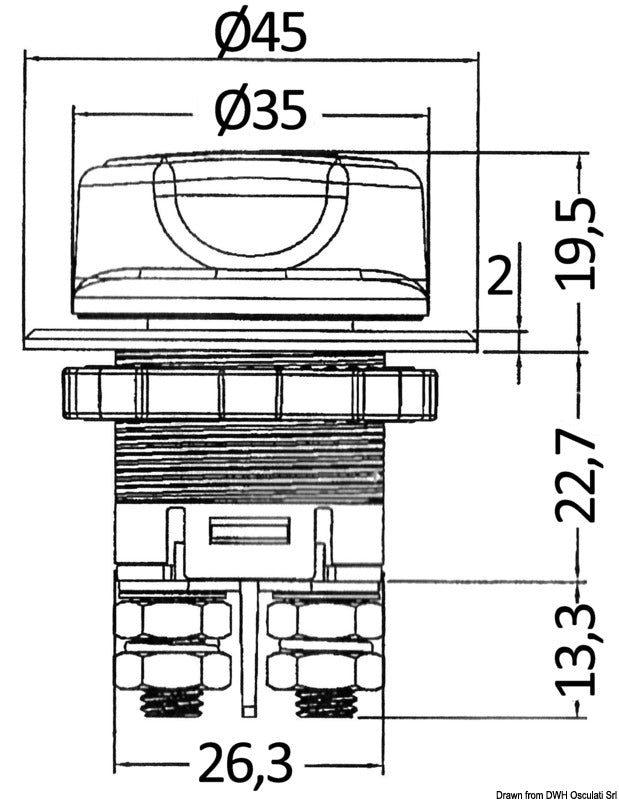

The super-compact design is developed for panel mounting in an instrument panel or bulkhead where space is limited. The switch is mounted through a round neck with a diameter of 26 mm and finished with a 45 mm front flange. The useful neck length is 11 mm.

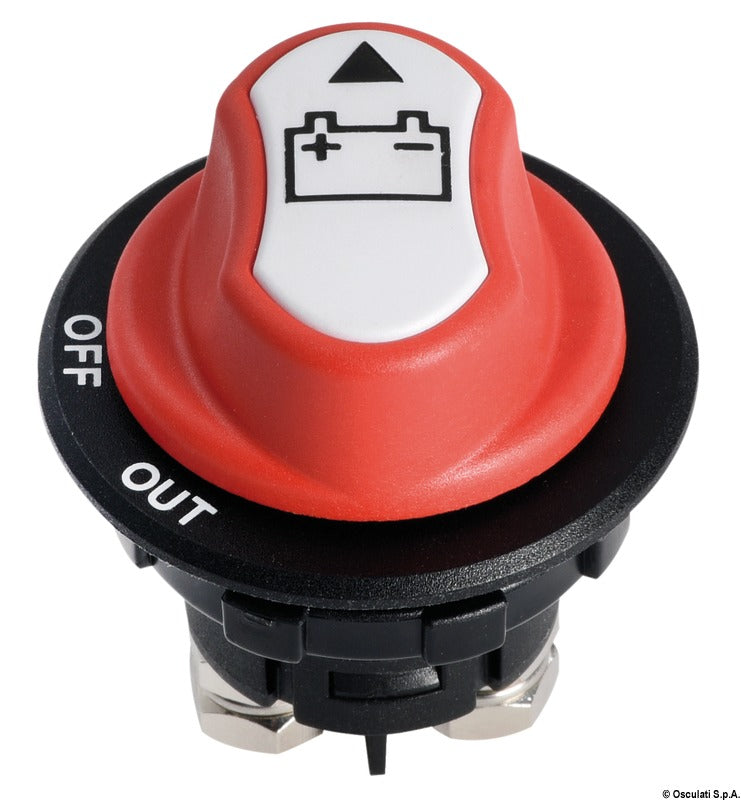

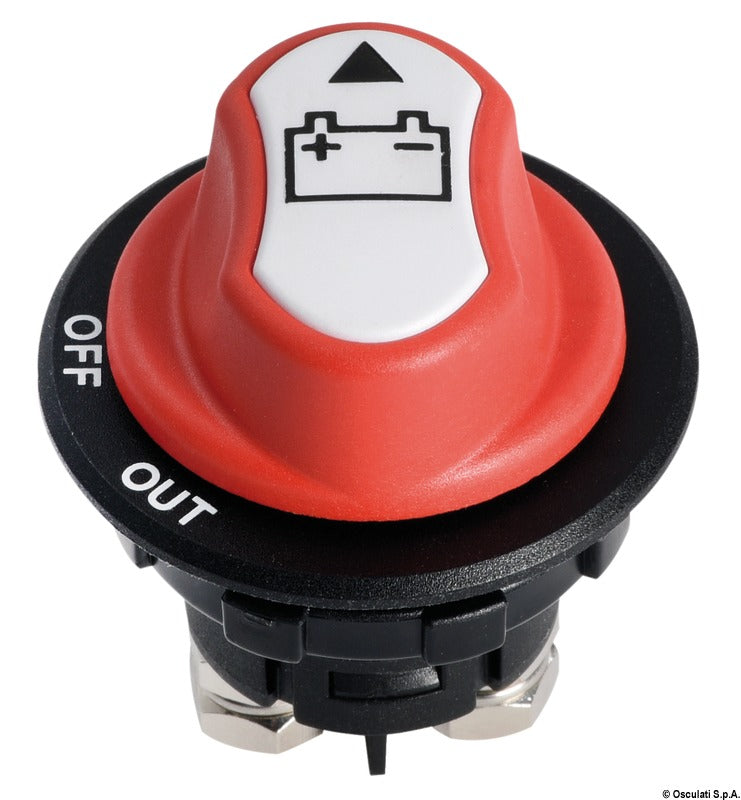

The control has OFF, ON, and OUT positions. In the OUT position, the red knob can be pulled out, giving the switch a simple anti-theft function and preventing it from being operated normally without the knob.
The electrical terminals have a diameter of 6 mm. The battery switch is suitable for DC installations in boats, motorhomes, and similar systems where a compact, manually operated main switch is required.
Key features32 V DC
100 A maximum continuous load
150 A maximum intermittent load
Positions: OFF – ON – OUT
Removable knob with anti-theft function
Panel mounting in instrument panel or bulkhead
Neck diameter: 26 mm
Flange diameter: 45 mm
Useful neck length: 11 mm
Terminal diameter: 6 mm
