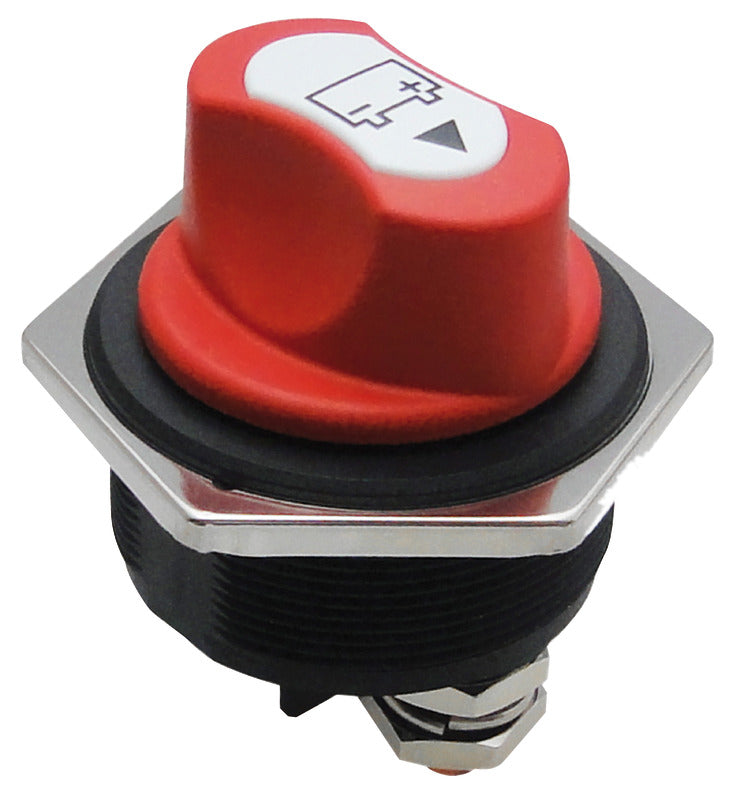

This compact battery switch is intended for DC battery systems with a voltage rating of 32 V DC. The variant handles up to 300 A continuous and 450 A intermittent.

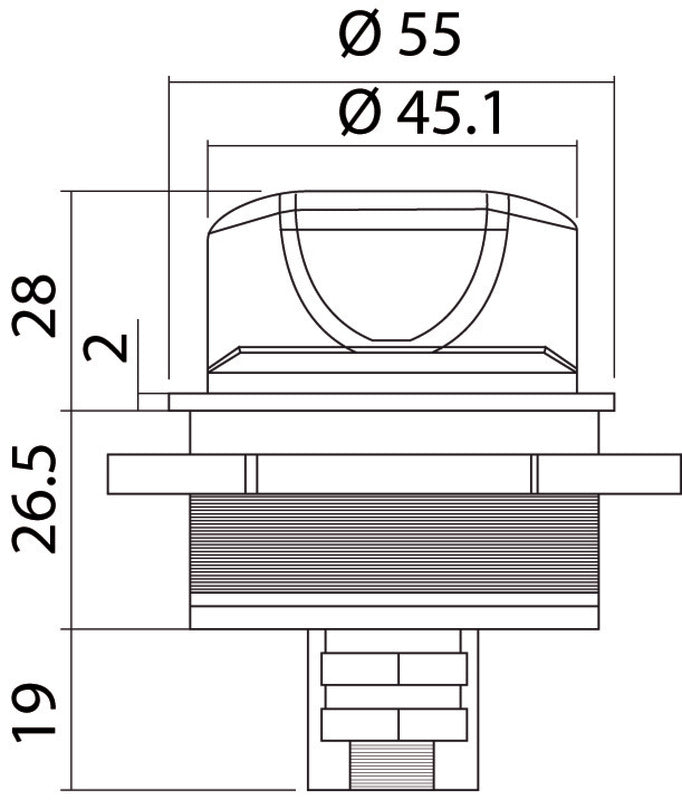

The super-compact design is developed for flush mounting in an instrument panel or bulkhead. The flange has a diameter of 55 mm, while the neck diameter is 49 mm. The useful neck length is 15 mm.
The switch has the operating positions OFF, ON, and OUT. In the OUT position, the control knob can be pulled out, serving as a simple anti-theft device and preventing normal operation when the knob is removed.
Electrical connections are made via terminals with a specified diameter of 10 mm. During installation, cables, cable lugs, and other components must be dimensioned according to the current electrical system and the expected load.
Key featuresVoltage rating: 32 V DC
Max. continuous current: 300 A
Max. intermittent current: 450 A
Positions: OFF, ON, and OUT
Removable control knob in OUT position
Mounting in instrument panel or bulkhead
Flange diameter: 55 mm
Neck diameter: 49 mm
Useful neck length: 15 mm
Terminal diameter: 10 mm
