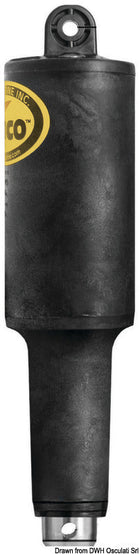

This Lenco replacement actuator for electric trim tabs is a 12 V DC actuator in the 100 Series, model 101 XD, with manufacturer part number 15055-001. The variant is intended as a spare part for Heavy Duty Performance trim tab systems and has a stroke length of 2¼″, corresponding to approximately 57 mm.
The actuator utilizes an electric ball screw design with high thrust and a manufacturer-specified push capacity of up to 500 lb, approximately 227 kg. The construction is sealed for life, maintenance-free, and fully submersible. No numerical IP rating is provided.
The housing is made of high-strength, glass-fiber reinforced nylon, while the cylinder is finished in mirror-polished stainless steel. The UV-resistant construction is designed for exposed mounting in marine environments.
The stroke length is 57 mm, and the closed mounting distance from hole center to hole center is 273 mm. The retracted length from tip to tip is approximately 289 mm, and the diameter is 63.5 mm. Both the upper and lower mounting holes measure 5/16″, approximately 8 mm.
The replacement actuator has an integrated 6′ lead, approximately 1.83 m, and waterproof plug-and-play Deutsch connectors. Stainless steel mounting hardware is included. It is compatible with Lenco 100 Series controls and is used in, among others, Heavy Duty, XD, High Performance, and Super Strong trim tab systems. It must not be mixed directly with Pro Control components.
The actuator is documented as being part of the Heavy Duty Performance kits 51.252.01, 51.252.02, and 51.252.03. A compatible lower mounting bracket is 51.258.13, and connection/extension cables are available as 51.259.02 at 4.2 m, 51.259.03 at 6.0 m, and 51.259.04 at 7.8 m. Always check voltage, stroke length, mounting holes, system type, and existing actuator identification number before replacement.
Key features12 V DC replacement actuator, model 101 XD
Manufacturer part number 15055-001
For Heavy Duty Performance trim tab systems
57 mm stroke length
273 mm closed hole center distance
5/16″ mounting hole top and bottom
Glass-fiber reinforced nylon and mirror-polished stainless steel
UV-resistant, fully submersible, and maintenance-free
1.83 m lead with waterproof Deutsch connectors
5-year manufacturer warranty
