Vertical S3 level sensor in AISI 316, 240–33 Ω, 17 cm

Mærke: Osculati SKU: 27.170.17

Price:
Sale price209,00 kr

Description

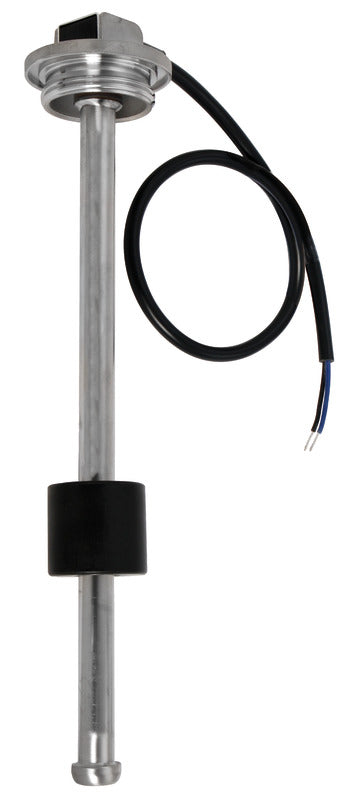

Vertical S3 level sensor in AISI 316 is a resistive tank level sensor with a float for monitoring fuel or water. This variant has a nominal sensor length of 17 cm and a resistance range of 240–33 Ω.

The sensor is passive and intended for 12/24 V instrument systems. The movement of the float changes the sensor's resistance output, allowing a compatible level instrument to display the tank's contents. The power rating is 125 mW, the maximum working current is 300 mA, and the permissible deviation on the resistance output is ±(R × 1.5% + 1 Ω).

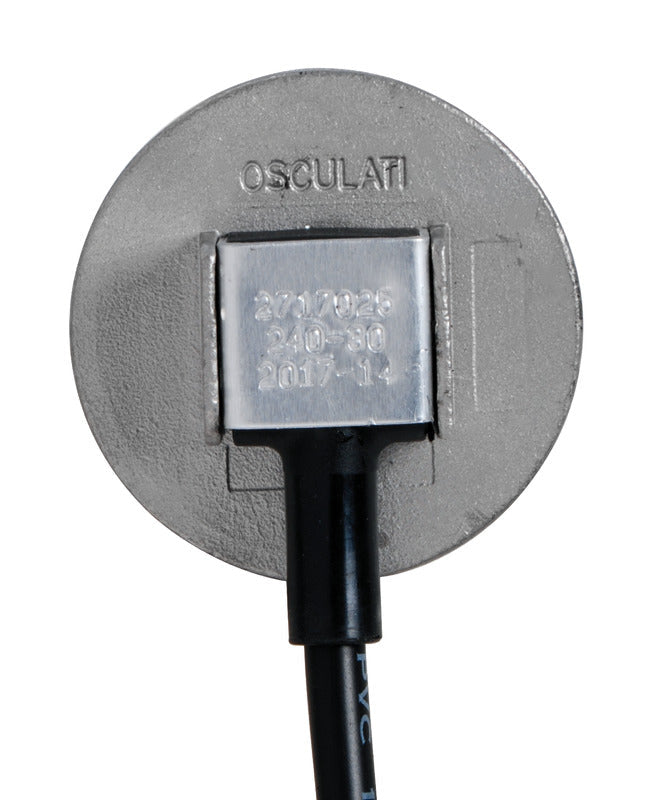

The sensor housing is made of corrosion-resistant AISI 316 stainless steel. The sensor head measures Ø53.5 mm, the probe tube Ø12.7 mm, and the float Ø35 × 32 mm. The nominal sensor length is 170 mm with a permissible deviation of ±5 mm. The cable is 460 ±20 mm long.

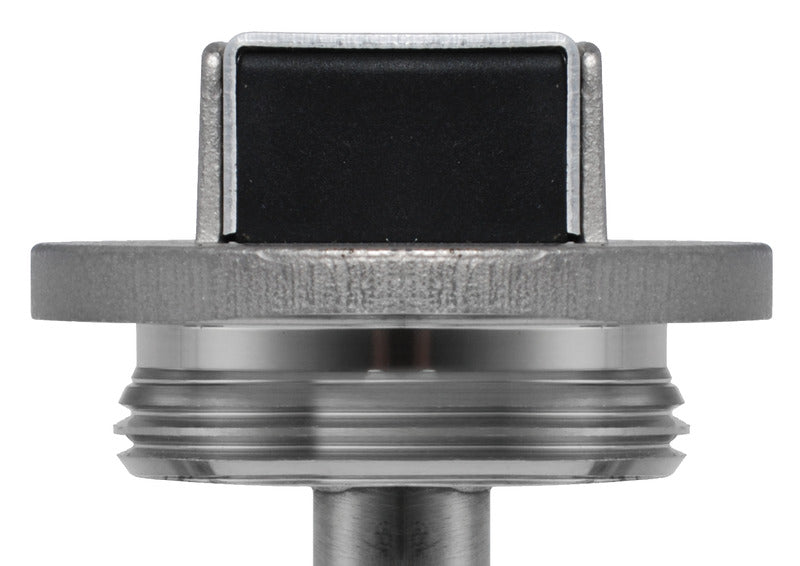

Mounting is performed vertically via the S3 threaded connection with BSP 1 1/4" thread. The black cable is used for the signal, while the blue cable is common ground. When installing with a separate threaded flange, use a center opening of Ø50 mm. On a thin-walled metal tank, the flange is welded on, while on a plastic tank, it is mounted with a gasket and self-tapping screws. An S5 tank opening can be adapted to the sensor using the separate S5-to-S3 mounting flange with item no. 52.746.10.

The sensor has an IP65 rating and a proven operating temperature range from –40 °C to +85 °C. It meets ABYC H-24, USCG 33 CFR 183.590 and ISO 10088 as well as the EMC requirements of directive 2014/30/EU and the specified EN standards. It is CE marked.

The resistance range is compatible with proven 240–33 Ω instruments from Teleflex, Aqua Meter, Vetus, S. Giorgio Sein/Veglia, Beede, Medallion, Datcom, and Taiwan-Wena. Matching instruments include item no. 27.160.00 and 27.170.00. Always check the instrument's resistance range before installation.

Key features

Vertical resistive level sensor with float
For fuel or water tanks
Resistance range: 240–33 Ω
System compatibility: 12/24 V
Sensor length: 17 cm
AISI 316 stainless steel
S3 connection with BSP 1 1/4" thread
Cable length: 460 ±20 mm
Enclosure class: IP65
Operating temperature: –40 °C to +85 °C

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Vertical S3 level sensor in AISI 316, 240–33 Ω, 17 cm
Vertical S3 level sensor in AISI 316, 240–33 Ω, 17 cm Item no. 27.170.17

Description

Produkt: Lodret S3-niveausensor i AISI 316
Serie: WATER+FUEL S3
Model: S3
Produkttype: Resistiv tankniveausensor med flyder
Anvendelse: Niveauovervågning i tanke til brændstof eller vand
Volt: 12/24 V
Nominel effekt: 125 mW
Maks. arbejdsstrøm: 300 mA
Modstandsområde: 240–33 Ω
Modstandstolerance: ±(R × 1,5 % + 1 Ω)
Længde: 17 cm
Længdetolerance: ±5 mm
Sensorhoved: Ø53,5 mm
Sonderør: Ø12,7 mm
Flyder: Ø35 × 32 mm
Materiale: AISI 316 rustfrit stål
O-ringsmateriale: NBR
IP-klasse: IP65
Temperatur: –40 °C til +85 °C
Gevind: BSP 1 1/4"
Kabellængde: 460 ±20 mm
Kabeltilslutning: Sort signal, blå fælles stel
Montering: Lodret indskruning via S3-gevindtilslutning
Standard: ABYC H-24; USCG 33 CFR 183.590; ISO 10088; EN 61326-1:2013; EN 61000-6:2007; EN 61000-6:2007/A1:2011/AC:2012
Certificering: CE
Direktiv: 2014/30/EU
Teknisk reference: QC/T413-2002
Kompatibilitet: 240–33 Ω-instrumenter fra Teleflex, Aqua Meter, Vetus, S. Giorgio Sein/Veglia, Beede, Medallion, Datcom og Taiwan-Wena samt instrumenter med varenr. 27.160.00 og 27.170.00
