Magma mounting bracket for grill and work table, Ø 28/32 mm

Mærke: Osculati SKU: 48.516.03

Price:
Sale price1.883,00 kr

Description

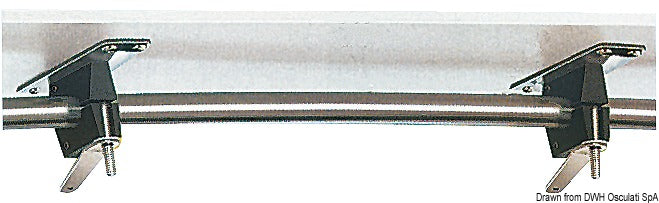

This Magma grill and side table mounting bracket is a double heavy-duty bracket for horizontal mounting on round boat railings with a diameter of 28 or 32 mm. The bracket provides a stable mounting point for compatible dual-mount grills and side tables.

The set consists of two separate rail clamps with swiveling mounting plates. The brackets can be rotated 360° around the bolt and adjusted to straight or curved railings, as well as for mounting over a corner on a stern rail. Adapter bushings for 28 mm railings are included, while the bracket mounts directly onto 32 mm railings.

The construction combines 304 (18-8) stainless steel with 356 hard-anodized aluminum. The mounting plates measure 131 × 42 × 6 mm and have four Ø 8 mm through-holes per bracket. The hole spacing is 114 mm longitudinally and 25 mm across. The installation requires 63 mm of clearance below the railing.

The bracket can be removed without tools so that the grill or side table can be stored compactly without leaving bracket parts on the railing. The heavy-duty design is intended for grilling while underway. The bracket is compatible with the Catalina Infrared grill (item no. 48.511.06) as well as side tables 48.515.00 and 48.516.00. The Party Table 48.517.00 can be used in conjunction with one of the compatible side tables. The product has a 1-year warranty.

Key features

Double heavy-duty rail bracket
For round railings Ø 28/32 mm
Horizontal mounting with two separate clamps
360° swiveling mounting plates
Can be adapted to straight, curved, and corner railings
Adapter bushings for Ø 28 mm included
304 stainless steel and 356 hard-anodized aluminum
Tool-free removal
Compatible with select Magma grills and side tables

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Magma mounting bracket for grill and work table, Ø 28/32 mm
Magma mounting bracket for grill and work table, Ø 28/32 mm Item no. 48.516.03

Description

Produkt: Monteringsbeslag til grill og arbejdsbord
Mærke: MAGMA
Producent: Magma Products, Inc.
Serie: Dual Mount (DM)
Model: T10-585
Produkttype: Monteringsbeslag til grill og arbejdsbord
Anvendelse: Montering af dobbeltmonterede grill og arbejdsborde på rund bådreling
Materiale: 304 (18-8) rustfrit stål og 356 hårdanodiseret aluminium
Relingsdiameter: Ø 28/32 mm
Montering: Dobbelt, vandret montering på rund reling
Udførelse: Heavy Duty
Antal beslag: 2
Monteringsplade: 131 × 42 × 6 mm
Hulafstand: 114 × 25 mm, center-center
Monteringshuller: 4 × Ø 8 mm pr. beslag
Nødvendig fri plads under reling: 63 mm
Fremspring under reling: 45 mm
Rotation: 360°
Adapterbøsninger: Til Ø 28 mm reling, medfølger
Kompatibilitet: Grill 48.511.06 samt arbejdsborde 48.515.00 og 48.516.00
Garanti: 1 år
Vægt: 0,82 kg
