Magma mounting system for grills and work tables, flush-deck socket

Mærke: Osculati SKU: 48.516.17

Price:
Sale price1.075,00 kr

Description

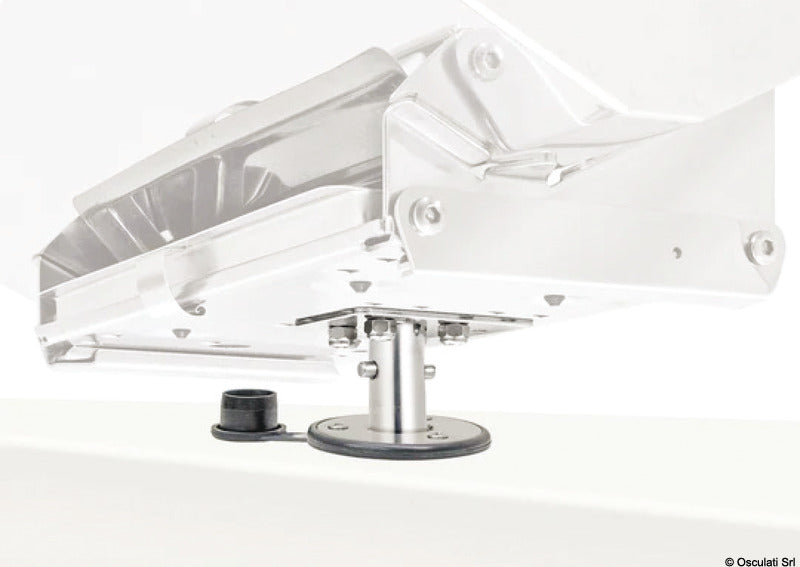

Magma mounting system for grills and work tables is a simple, lockable mounting kit with a flush-mount deck socket. The system is designed for the secure mounting of compatible Magma grills and consists of a mounting post, a deck socket, a flange gasket, and an attached, flip-up waterproof cover.

The mounting post is held in the socket with a push-button/trigger lock, allowing the grill to be quickly mounted and removed. The construction is made of mirror-polished 304 stainless steel, also specified as 18-8 stainless steel. The flange gasket and the integrated cover help seal the deck socket when the mounting post is not in use.

The total mounted height is 85 mm, of which 36 mm is above the deck, while the installation depth is 49 mm. The socket tube has an outside diameter of 25.4 mm and an inside diameter of 23 mm. The metal flange measures Ø60 mm, and the rubber gasket has an outside diameter of 67 mm.

Installation requires a through-hole of at least 28.5 mm as well as three through-fastening sets of approximately 6 mm. The appropriate bolt length is chosen based on the thickness of the deck, and individual necessary fasteners for deck installation are not included. During installation, the post's locking point must be correctly oriented in relation to the deck socket's locking mechanism.

The bracket is documented as compatible with Magma Catalina Infrared, item no. 48.511.06, and Magma Adventurer, item no. 48.511.14. The Standard Duty construction is intended for use while the boat is at anchor or moored. The grill and mounting post should be removed and stored during transit.

Key features

Simple lockable mounting system with flush-mount deck socket
Push-button/trigger lock for quick mounting and removal
Mirror-polished 304/18-8 stainless steel
Integrated flange gasket and flip-up waterproof cover
Total height 85 mm and installation depth 49 mm
Standard Duty for use at anchor or while moored
Compatible with Magma Catalina Infrared and Adventurer
1-year warranty

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Magma mounting system for grills and work tables, flush-deck socket
Magma mounting system for grills and work tables, flush-deck socket Item no. 48.516.17

Description

Produkt: Magma monteringssystem til grill og arbejdsborde
Mærke: Magma
Producent: Magma Products, LLC
Produkttype: Monteringssystem til grill og arbejdsborde
Anvendelse: Montering af kompatible grill på båddæk
Højde: 85 mm
Indbygningsdybde: 49 mm
Højde over dæk: 36 mm
Stolpehøjde: 83 mm
Topplade: 51 × 51 mm
Toppladens hulafstand: 32 × 32 mm c/c
Toppladens monteringshuller: 4 × Ø8 mm
Sokkelhøjde: 58 mm
Indvendig diameter: 23 mm
Udvendig diameter: 25,4 mm (sokkelrør)
Metalflangens diameter: 60 mm
Gummipakningens diameter: 67 mm
Dæksoklens monteringshuller: 3 × Ø7 mm
Materiale: 304/18-8 rustfrit stål
Finish: Spejlpoleret
Montering: Planforsænket dæksokkel med låsbar enkeltstolpe
Nødvendigt gennemføringshul: Min. 28,5 mm
Belastningsklasse: Standard Duty
Låsemekanisme: Trykknap-/triggerlås
Kompatibilitet: Magma Catalina Infrared 48.511.06 og Magma Adventurer 48.511.14
Vægt: 0,32 kg
Garanti: 1 år
