Marina TOP waterproof rocker switch with dual LED is a 1-pole, panel-mounted switch for 12/24 V DC installations. This variant has the (ON)-OFF switching function, where ON is momentary: The function is only active while the switch is held down, and the switch returns to OFF when released.
The momentary function is suitable for boat horns, toilet controls, and similar electrical functions that only need to be active during operation. The switch has three terminals and a maximum load of 20 A at 12 V or 10 A at 24 V.

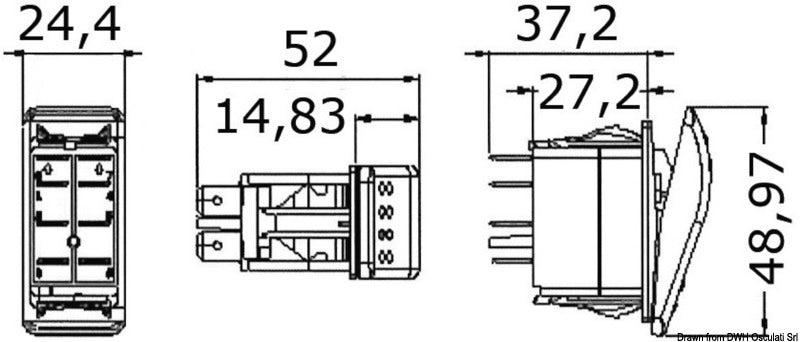

The switch is IP56-rated and intended for panel mounting. Installation requires a rectangular cutout hole of 21.5 × 36.8 mm. This is the mounting dimension and not the external product dimensions of the switch.
The dual LED illumination has two functions. One LED keeps the symbol for the selected consumer illuminated, while the other LED indicates when the switch is activated. This makes both the function and its current status visible on the control panel.

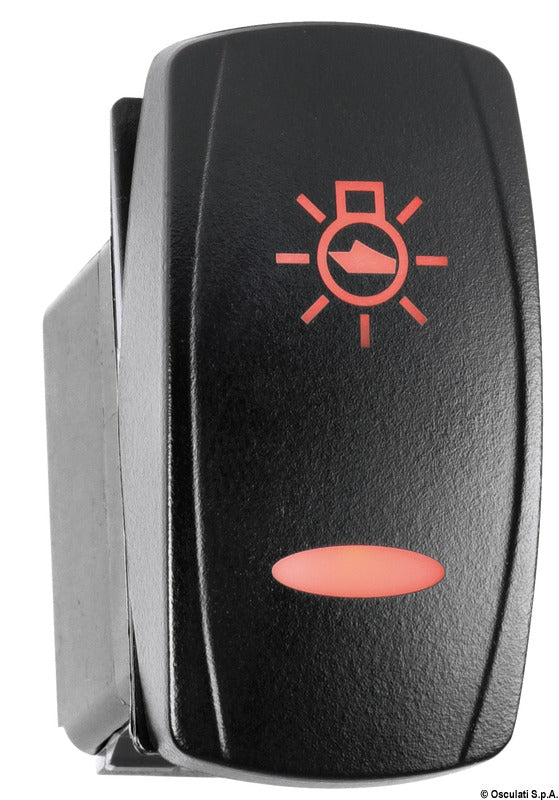

The switch is supplied without a rocker. A compatible OVAL rocker with illuminated symbol from the Marina TOP series 14.213.xx must be selected separately. For use as a horn switch, the Horn rocker with item no. 14.213.23 can be used.
Key features1-pole momentary rocker switch with (ON)-OFF function
ON is momentary, and OFF is the resting position
For 12/24 V DC installations
Max. 20 A at 12 V and 10 A at 24 V
IP56-rated
Dual LED for symbol illumination and activation indication
Three terminals
Panel mounting in a rectangular hole of 21.5 × 36.8 mm
Suitable for horns, toilet controls, and similar momentary functions
Supplied without rocker
