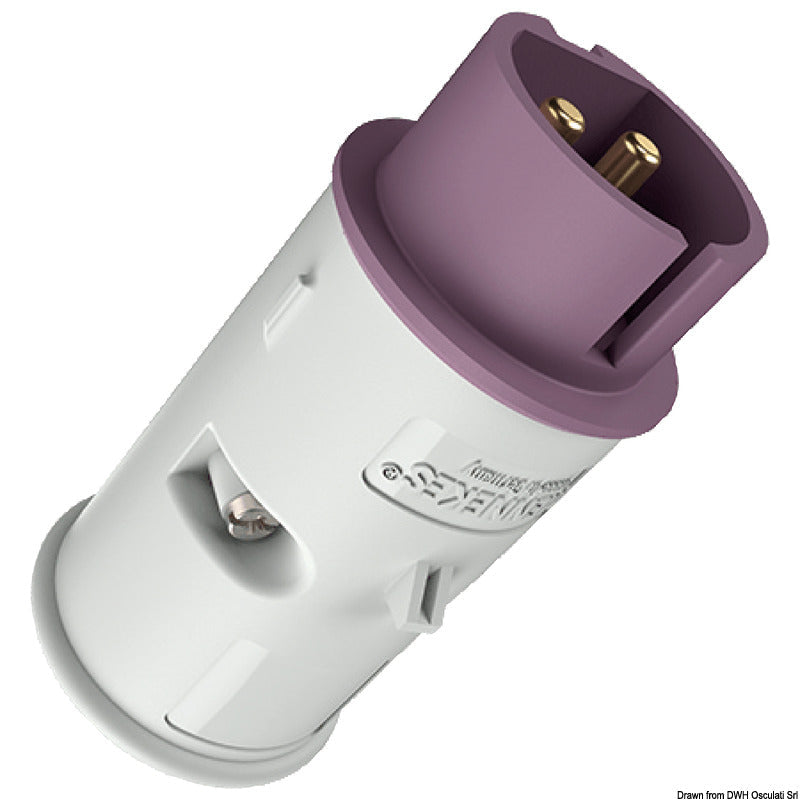

This 2-pin low-voltage male plug with screw terminals is a straight, cable-mounted MENNEKES 629A connector for robust electrical low-voltage connections. The plug is rated for 12/24 V applications, a maximum current of 16 A, and an IP44 enclosure rating.
The male plug can be paired with the corresponding 2-pin female connectors: the cable-mounted female connector with item no. 14.337.02 and the panel-mounted socket with item no. 14.337.03. The standard contacts and the violet voltage coding follow the product design according to DIN EN IEC 60309-2.
12/24 V is the product's application rating. The formal rated voltage class for model 629A is 20–25 V AC at 50–60 Hz. Connection is made using screw terminals for conductor cross-sections of 4–10 mm². The terminal screws can be operated with a PZ2 or flat-head screwdriver, and square-crimped, gas-tight wire end ferrules are recommended.
The cable-mounted design features both strain relief and cable kink protection, which relieves the conductor at the cable entry. The plug does not have a phase inverter, pilot contact, or separate protective cap.
The contact carrier is made of violet PA6, while the housing is made of light-grey PC/PET. The product measures 130 mm in total length, Ø55 mm in diameter, and a maximum of 58 mm in width at the plug face. The permissible permanent ambient temperature is −25 °C to +40 °C, and the net weight is 140 g.
The plug is manufactured according to DIN EN IEC 60309-2 and has a CE declaration of conformity as well as an EAC test mark. It also complies with the RoHS Directive 2011/65/EU including 2015/863/EU and the POP Regulation EU 2019/1021.
Important features2-pin cable-mounted male plug
12/24 V application rating
Rated voltage: 20–25 V AC
Maximum current: 16 A
Screw terminals for 4–10 mm² conductors
Strain relief and cable kink protection
IP44 enclosure rating
Standard: DIN EN IEC 60309-2
Compatible with female connectors 14.337.02 and 14.337.03
