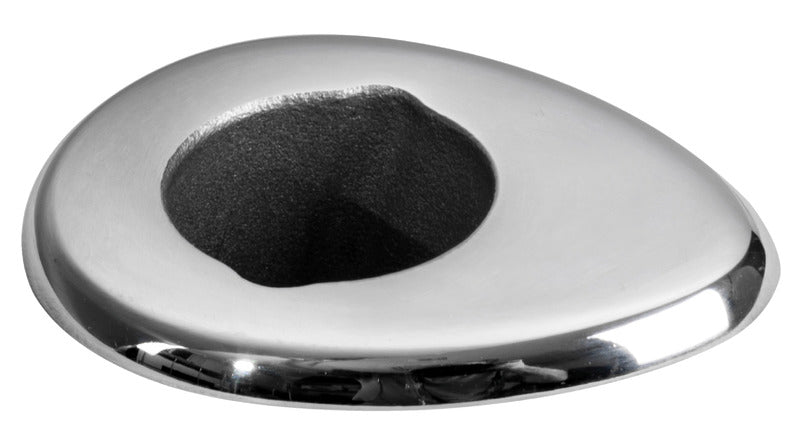

This Mickey recessed bushing in AISI 316 for Ø16 mm bimini pole is a flush deck base without a cover. It is used for securing a flexible Ø16 mm pole in the modular and self-tensioning Mickey bimini system.

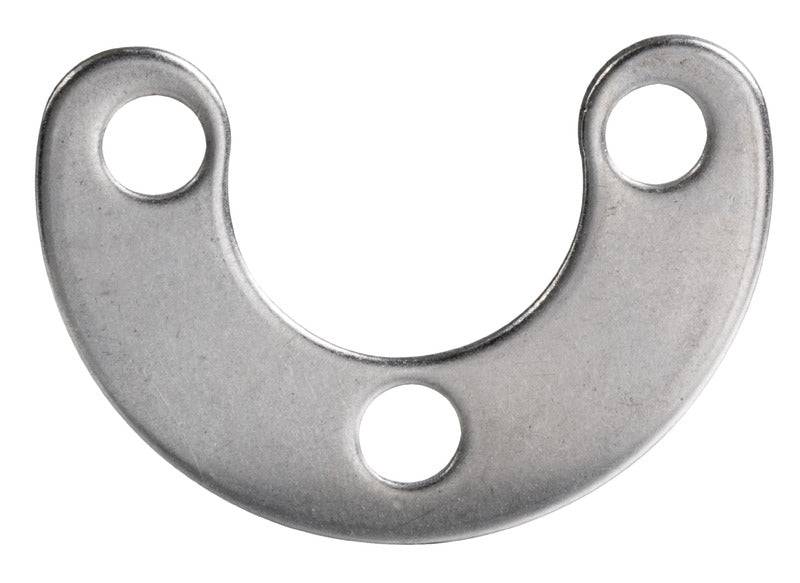

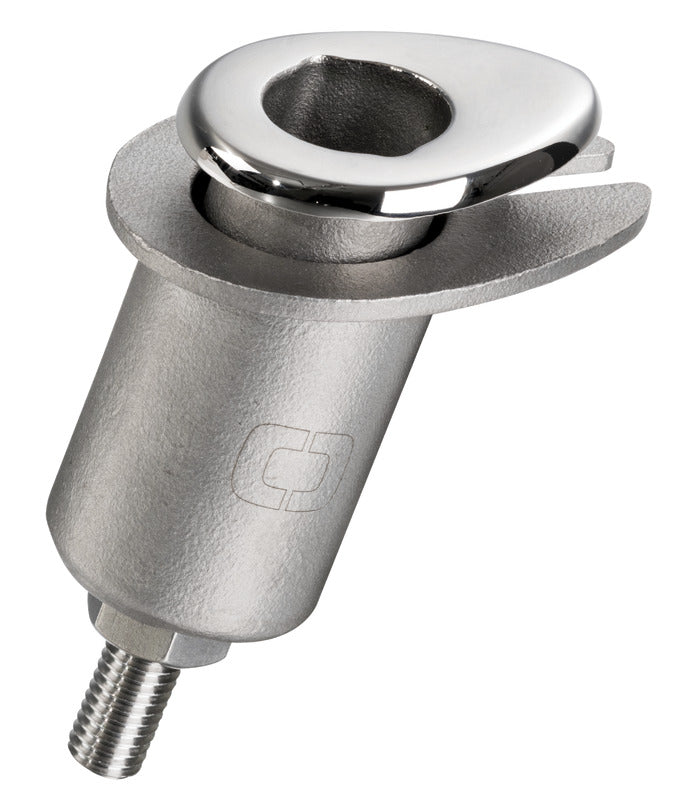

The bushing is manufactured from AISI 316 stainless steel and is mounted through the deck or a similar plate. A fastening counter-ring on the underside secures the bushing and provides an integrated installation. The design can be used with a deck or plate thickness from 8 to 40 mm.

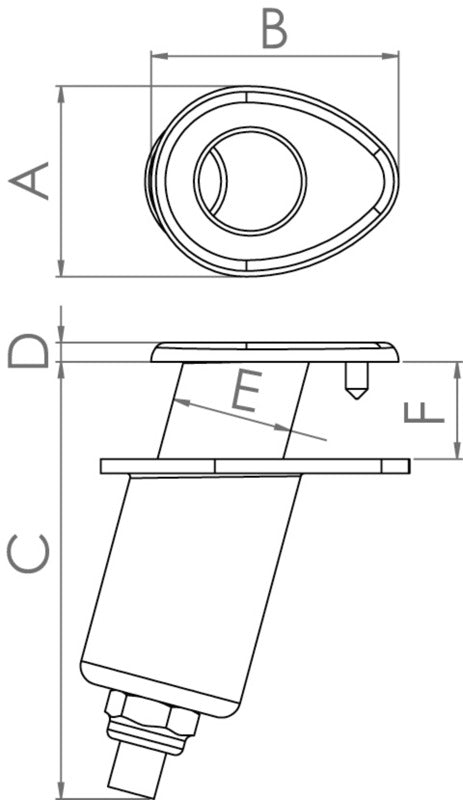

The documented dimensional references for this variant are A: 52 mm, B: 40 mm, and D: 4 mm. The letters follow the product's technical dimension diagram and have therefore not been renamed to geometric measurements without the diagram's explicit definitions.
The bushing fits the Mickey system's flexible Ø16 mm bimini poles. Documented system-related poles include item no. 46.826.14, 46.826.15, 46.826.17, and 46.826.18. Poles, fabric, and other system components are not included.
Key featuresRecessed bushing for Mickey bimini system
For flexible bimini pole with Ø16 mm diameter
Design without cover
AISI 316 stainless steel
Fastening with counter-ring on the underside
For deck or plate thickness of 8–40 mm
Dimension reference A: 52 mm
Dimension reference B: 40 mm
Dimension reference D: 4 mm
