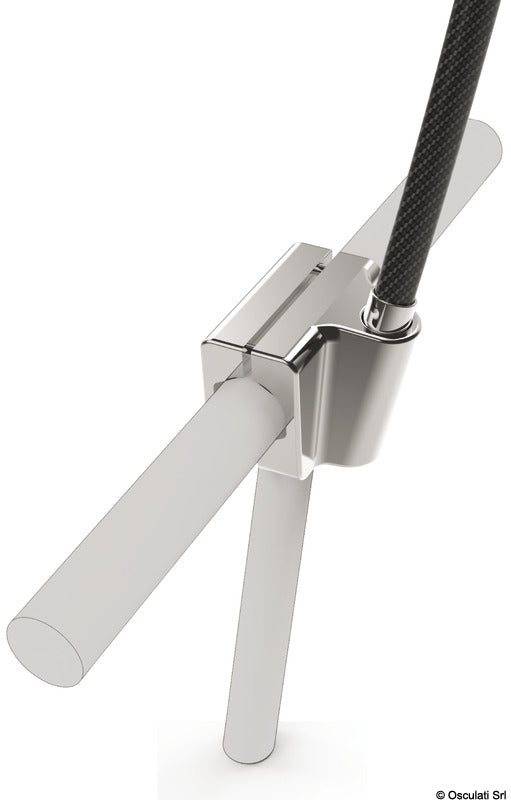

This Mickey mounting base set for pushpits in AISI 316 stainless steel consists of a right and a left base for mounting the Mickey bimini system onto the boat's pushpit. The set is intended for pushpits with an outer tube diameter of 30–34 mm and a support arm with an outer tube diameter of 25–28 mm.

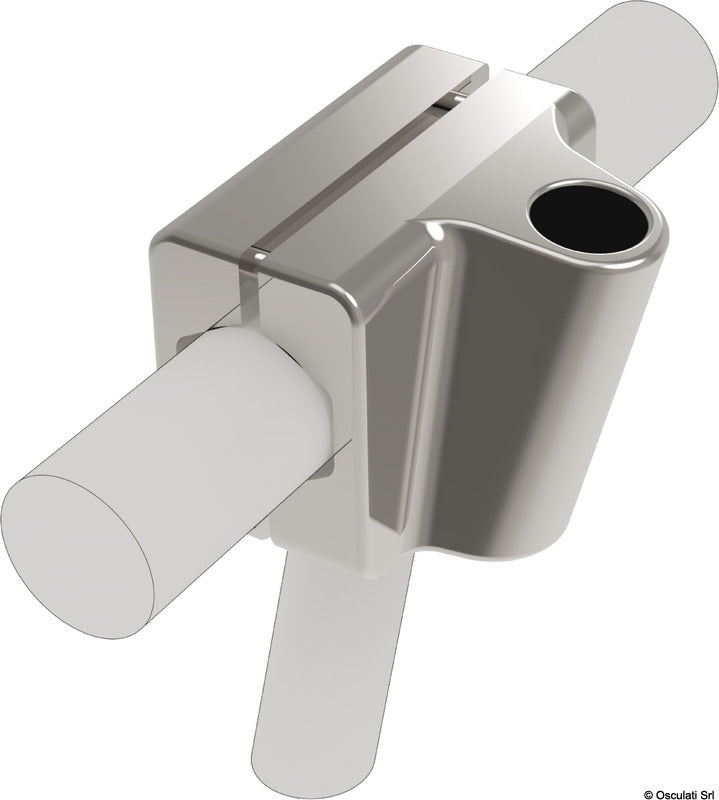

The two bases are mechanically mounted around the pushpit and support arm at their intersection. The positioning at the junction prevents the bushings from rotating around the tubes. Mounting screws are included.

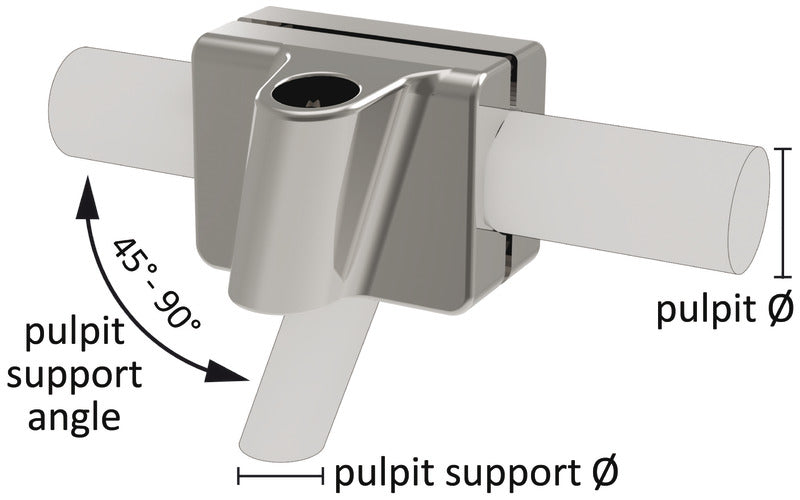

The assembly can be adapted to an angle of 45–90° between the pushpit and the support arm. The bases are designed with an angle of 15° towards the bow or stern, as well as an outward tilt of 12° towards the outside of the boat.
The combination of these two design angles supports the self-tensioning function of the Mickey system and makes it possible to utilize a larger coverage area for the bimini fabric or sunshade. The construction is made of corrosion-resistant AISI 316 stainless steel for maritime use.

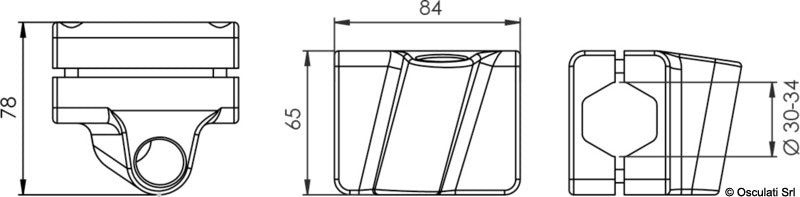

The technical drawing indicates overall dimensions of 78 × 84 × 65 mm. As the drawing axes are not explicitly labeled, the values are provided as drawing dimensions and not as fixed length, width, and height.
Related Mickey components
Flexible Mickey rods with Ø 16 mm are available under item nos. 46.826.14, 46.826.15, 46.826.17, and 46.826.18. Item nos. 46.825.00, 46.825.01, and 46.825.02 are alternative recessed mounting bushings, while 46.825.09 is a fastening buckle for the bimini fabric. These components are supplied separately.
Key featuresPair with right and left mounting base
AISI 316 stainless steel
For pushpit Ø 30–34 mm
For support arm Ø 25–28 mm
Angle between pushpit and support arm: 45–90°
Design angle: 15° towards bow or stern
Outward tilt: 12°
Rotation-proof mounting at the intersection of the tubes
Screws included
