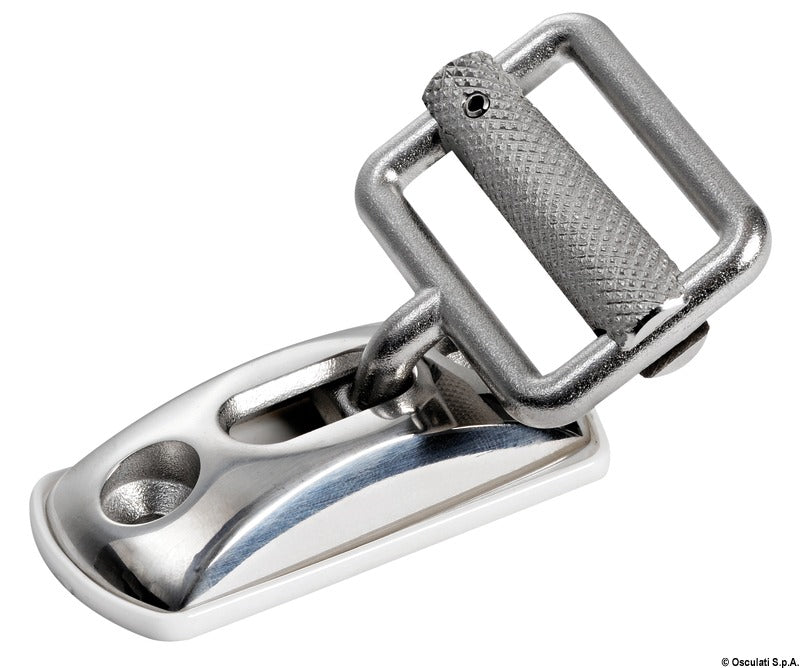

This mounting plate with detachable strap buckle is designed for fastening straps with a width of up to 30 mm. The bracket is suitable for straps on sprayhoods, biminis, and boat sunshades, where a fixed mounting point with a movable buckle is required.
The buckle is both detachable and tiltable. It can be moved from 5° to 125°, allowing the strap angle to be adjusted relative to the mounting surface and the chosen attachment.

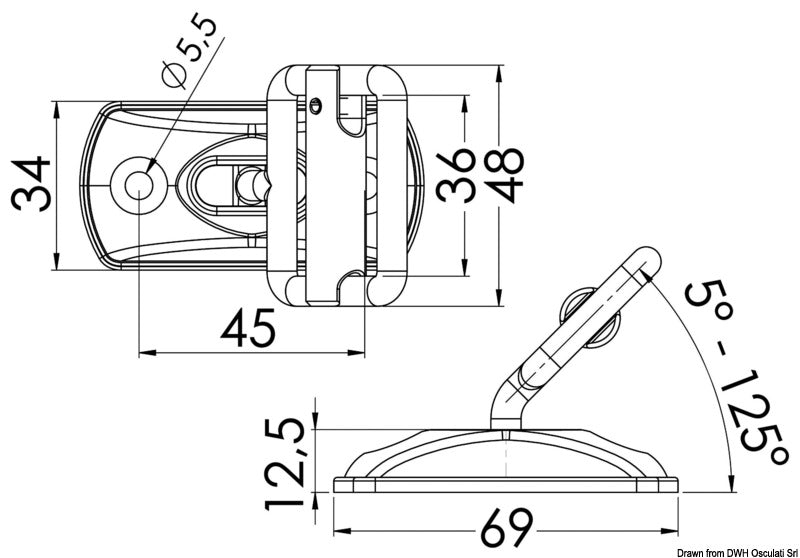

The bracket is made of polished AISI 316 stainless steel. The mounting plate measures 69 × 34 mm and has a hole spacing of 45 mm measured from center to center.
The product is compatible with straps of up to 30 mm. A 30 mm wide nylon strap, item no. 06.399.30, is dimensionally compatible, but is registered as a discontinued catalog item.
Key featuresFor straps with a maximum width of 30 mm
Detachable and tiltable buckle
Range of motion from 5° to 125°
Polished AISI 316 stainless steel
Mounting plate: 69 × 34 mm
Hole spacing: 45 mm, center to center
Suitable for sprayhood, bimini, and sunshade straps
