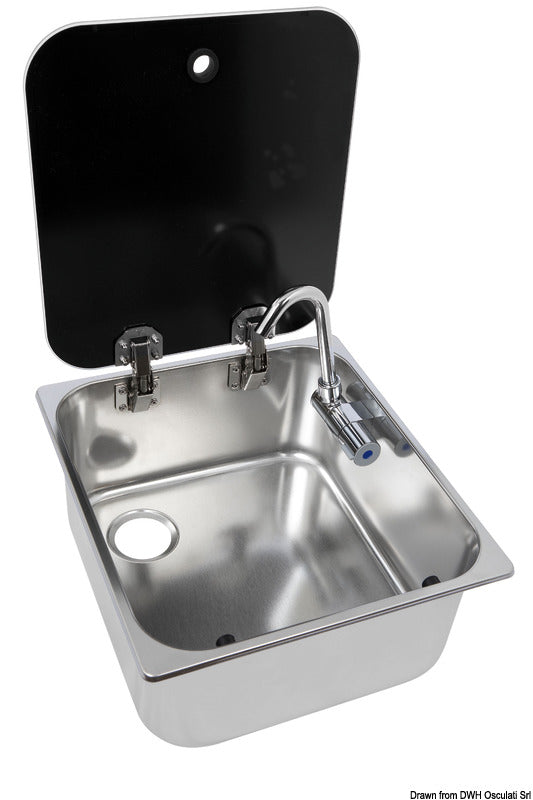

Built-in sink in polished stainless steel with tinted glass lid and cold water tap from Navy Load is a compact, rectangular sink for installation in a pantry or kitchen countertop. It is suitable for boats, motorhomes, caravans, and converted vans where counter space must be utilized efficiently.
The sink bowl is made of mirror-polished AISI 304 stainless steel. The tinted lid is made of tempered glass and mounted with two hinges. When the tap is folded down into the sink bowl, the glass lid can be closed to form a flush cover over the sink.
The external top dimensions are 352 × 322 mm, and the depth is 146 mm. The internal dimensions and the specified installation cutout are 342 × 310 mm. The sink is top-mounted into the countertop and can be secured by direct gluing with a suitable mounting sealant. Space must also be reserved under the sink for water and drain connections.
The included foldable cold water tap is made of chrome-plated brass and has a 3/8" external thread for the water connection. The tap mounting hole is 15 mm. The tap has no electrical microswitch and can be used directly with an automatic pressure water system. When used with a standard submersible pump, a separate switch or pressure control is required.
Drain is not included. The sink has a Ø70 mm seat for the drain grate or flange. As accessories, a 90° side drain with item no. 50.186.98 and Ø25 mm hose nozzle or a straight drain with item no. 50.186.99 and 1¼" thread can be used.
The manufacturer model is NL.31001 with the supplementary reference SR08322. The sink can be placed side-by-side with the Navy Load SR08324, a single gas burner with a glass lid and corresponding top dimensions.
Key featuresRectangular built-in sink for pantries and compact kitchens
Mirror-polished AISI 304 stainless steel
Tinted tempered glass lid with two hinges
Foldable cold water tap in chrome-plated brass included
External dimensions: 352 × 322 mm
Installation cutout: 342 × 310 mm
Depth: 146 mm
Water connection: 3/8" external thread
Drain is optional
