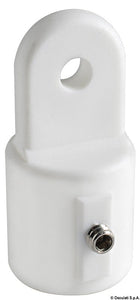

This nylon end fitting for Ø 22 mm bimini tubes is a tube terminal for bimini and canopy structures. The fitting is mounted at the end of the tube and forms a connection point for the other fittings in the structure.
The end fitting is inserted into the end of a Ø 22 mm tube. The protruding mounting eye has a pin/hole diameter of 6 mm, allowing the fitting to serve as a movable connection point in a tube frame.
The fitting is made of white nylon. The specified 22 mm refers to the compatible tube diameter and not the external product dimensions of the end fitting.
In the same fitting system for Ø 22 mm tubes, there are slide fittings with item no. 46.377.03, deck mounts with item no. 46.377.21, and jaw slides with item no. 46.377.31. The components can be used for constructing bimini, canopy, and support bar structures.
Key featuresEnd fitting for bimini and canopy tubes
For tubes with Ø 22 mm
Pin/hole diameter: 6 mm
Insert mounting in the tube end
Made of white nylon
Protruding mounting eye
