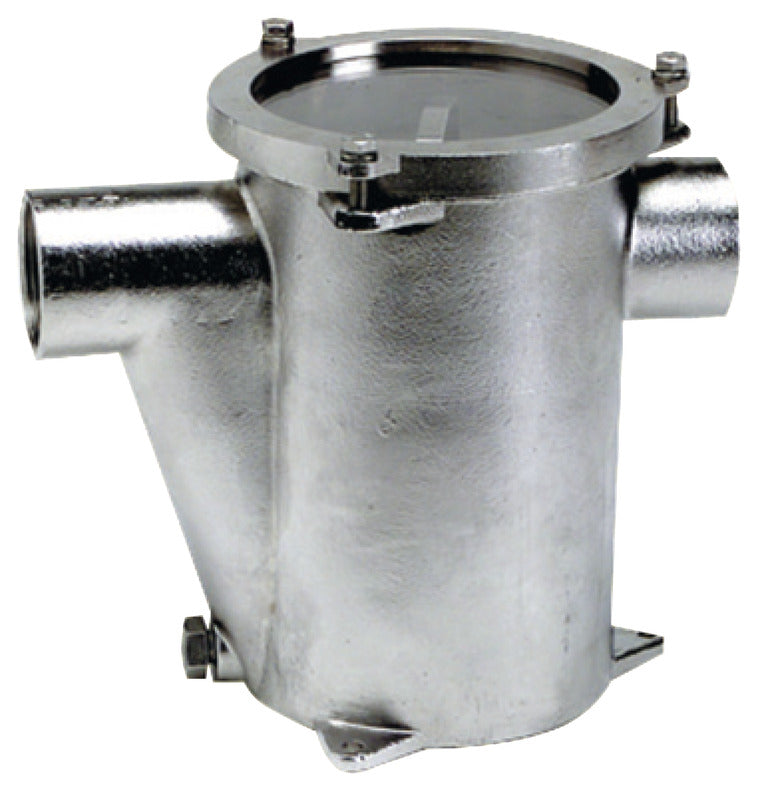

Raw water filter for engine cooling in AISI 316 stainless steel with G 1 1/2″ connection is intended for filtering raw water in marine engine cooling water systems. The filter retains impurities in the intake cooling water before the water is passed on through the engine's cooling circuit.
The filter construction is made of corrosion-resistant AISI 316 stainless steel. The transparent inspection cover makes it possible to check the condition of the filter visually without first opening the housing.
This variant has two opposite side connections with size G 1 1/2″. The G-designation is documented, while the thread standard, thread pitch, and internal or external thread are not further specified.
The total length of the filter over the housing and connections is 200 mm, and the total height is 200 mm. The mounting base dimension A is 143 mm, the filter part dimension DF is 105 mm, and the filter chamber height HF is 100 mm. Mounting feet at the base allow for secure installation in the engine room.
The filter is intended for raw water and cooling water systems with the documented connection size. Flow capacity, filtration degree, and permissible working pressure are not specified and should therefore be determined based on the other requirements of the installation.
Key featuresRaw water filter for marine engine cooling systems
Construction in AISI 316 stainless steel
Transparent inspection cover for visual check
Two opposite G 1 1/2″ connections
Total length: 200 mm
Total height: 200 mm
Mounting feet at the bottom of the filter
