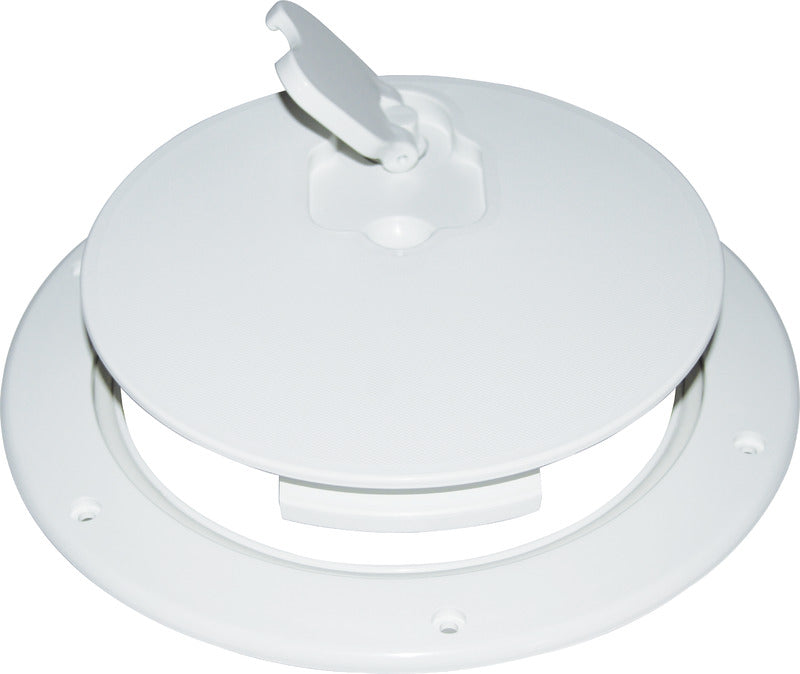

Round inspection hatch with cover in white ASA plastic for inspection access in decks, superstructures, and other suitable panels on recreational craft. The hatch has a maximum outer diameter of 265 mm, an installation diameter of 215 mm, and a clear opening of 190 mm.
The round hatch is designed for flush mounting and has a tight, non-slip surface. The cover is opened and closed using a rotatable, recessed latch that sits flush with the surface. Installation is performed using visible screws, and the distance between the centers of the mounting holes is 242 mm.
The construction is made of ASA plastic. The hatch has a tightness rating of 2 and has been tested with a hydraulic test pressure of 14 kPa. It is approved for installation in areas IIa, III, and IV on recreational craft in design categories A, B, C, and D.
The hatch is CE type-approved according to Directive 2013/53/EU based on UNI EN ISO 12216:2004. The CE type-examination certificate is No. 1332/20/UE/C with notified body no. 0966. The CE marking is permanently embossed on both the cover and the frame.
A white spare handle with item no. 20.338.00 is documented as a compatible spare part for this hatch.
Key featuresRound, flush-mounted inspection hatch with cover
Maximum outer diameter: 265 mm
Installation diameter: 215 mm
Clear opening: 190 mm
Hole spacing: 242 mm
White ASA plastic with non-slip surface
Rotatable, recessed latch
Tightness rating 2 and hydraulic test pressure of 14 kPa
CE type-approved according to Directive 2013/53/EU
