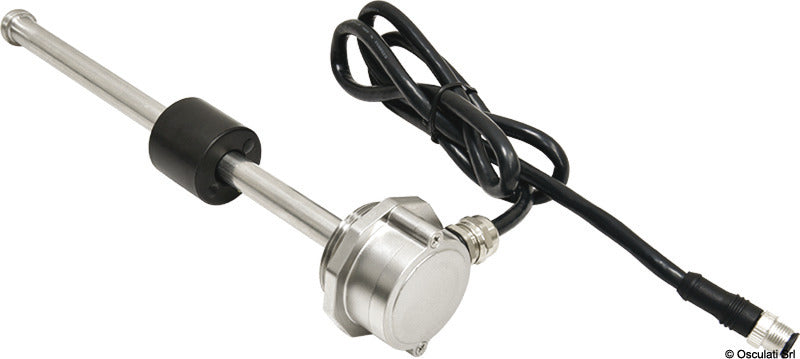

This S3 NMEA 2000 fuel level sensor with a length of 200 mm is a vertical level sensor for measuring the content of a fuel tank. The sensor transmits level information to compatible instruments via the vessel's NMEA 2000 network.

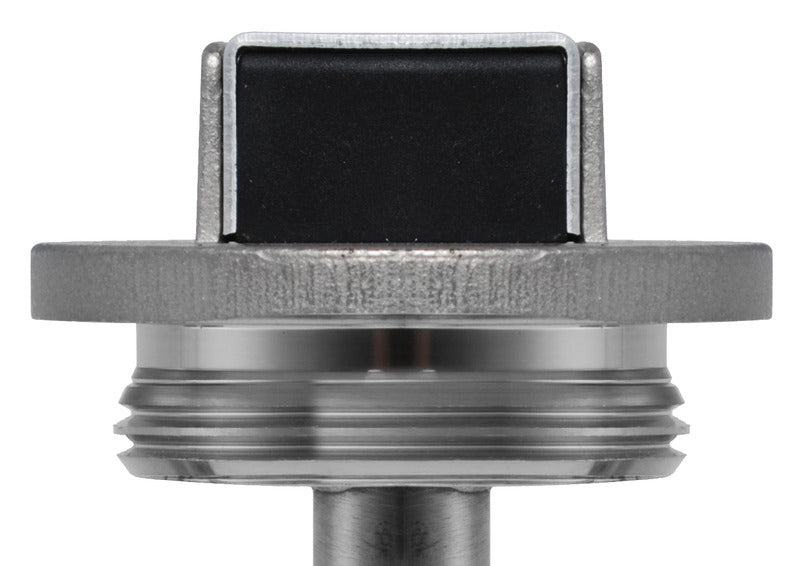

The sensor is made of stainless steel and has an external IP65 protection rating. It is suitable for both 12 and 24 V systems and is mounted via an international S3 mounting interface.
Fuel is the configured tank type for this variant. The sensor can be customized with a tank number so that multiple tanks with the same liquid can be identified separately, for example, as tank 1, 2, and 3. Once the tank capacity is configured, a compatible instrument can display the volume in liters instead of only displaying the level as a percentage.
Tank type, tank number, and tank capacity can subsequently be changed using the NMEA 2000 programmer with item no. 27.165.00. The sensor can be reprogrammed for fresh water, grey water, or black water, among other things, but is supplied as a fuel variant.
When mounting on a tank prepared for an S5 flange with five holes, the separate S5-to-S3 adapter with item no. 52.746.10 can be used. The adapter and programmer are separate products and are not included as standard equipment.
Key featuresFuel level sensor with NMEA 2000 output
Sensor length: 200 mm
Suitable for 12 and 24 V systems
International S3 mounting interface
Stainless steel
External IP65 protection rating
Programmable tank type, tank number, and tank capacity
Option for display in liters with configured tank capacity
