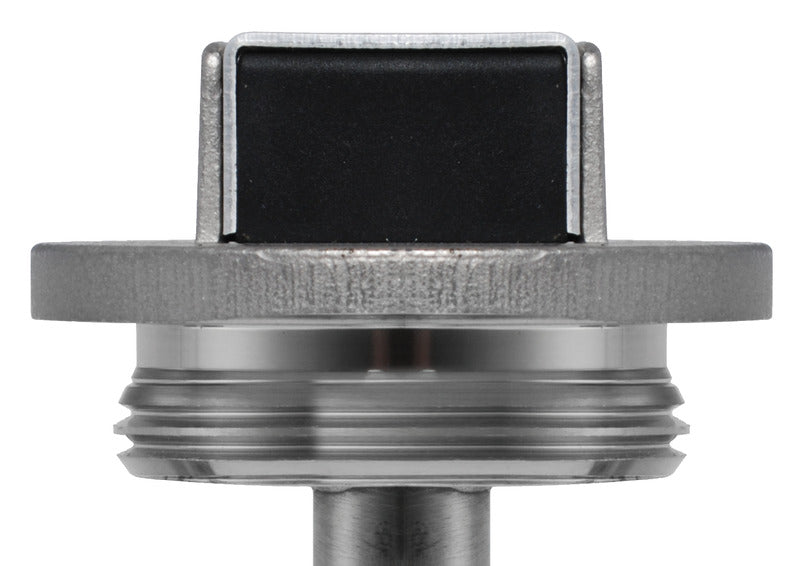

S3 NMEA 2000 fuel level sensor with a length of 300 mm is intended for electronic measurement of the fuel level in marine tank installations. The sensor communicates level information to an instrument or display system via NMEA 2000.
The sensor is made of stainless steel and can be used in both 12 V and 24 V systems. The external protection is rated as IP65. Mounting is done via an international S3 interface with a threaded tank connection.
This variant is configured for fuel. When the tank volume is loaded, the level can be displayed in liters instead of percent. When installing multiple fuel tanks, the sensor can also be assigned a tank number, for example, tank 1, 2, or 3, so that the tanks can be identified separately in the system.
The sensor can be reprogrammed for fuel, fresh water, gray water, or black water. The NMEA 2000 programmer with item no. 27.165.00 can be used to change the tank medium, assign a tank number, and load tank capacity. The programming tool connects to the NMEA 2000 network via a Micro-C cable and requires an available network port.
Direct installation requires a tank connection that fits the international S3 interface. For a tank prepared for an international S5 flange with five holes, the adapter with item no. 52.746.10 can be used as a transition to the threaded S3 sensor. Adapter and programming tool are separate accessory products.
Key featuresFuel level sensor with NMEA 2000 data output
Sensor length: 300 mm
Suitable for 12 V and 24 V systems
Made of stainless steel
External protection: IP65
Mounting via international S3 interface
Can display tank level in liters when tank volume is loaded
Supports numbering of multiple tanks with the same fluid
Can be reprogrammed with programmer 27.165.00
