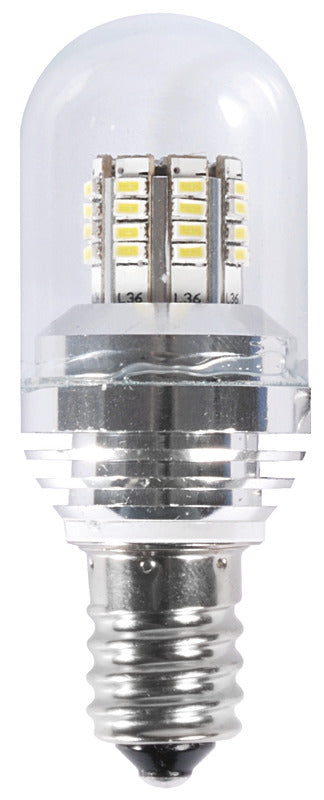

This SMD LED bulb with E14 base is a replaceable low-voltage light source for 12 V and 24 V fixtures. The E14 base is a small Edison screw base, which is installed by screwing it into a suitable lamp holder.
The bulb has an actual power consumption of 3 W and delivers a luminous flux of 280 lm at a colour temperature of 3000 K. The stated equivalent power is 28 W; this value describes the light output in relation to a traditional light source and is not the actual consumption of the bulb.
The SMD LED components are protected by a glass cover. The bulb measures Ø25 × 67 mm and has an IP rating of IP65, so the base, voltage, and available space in the fixture must be checked before installation.
The bulb is documented as an optional LED light source for the Foresti e Suardi Maia fixture 13.483.08 and the articulated Foresti e Suardi fixture 13.483.11. Other installations require a 12/24 V fixture with an E14 lamp holder and sufficient space for the bulb's dimensions.
Key featuresSMD LED bulb with E14 screw base
For 12/24 V systems
Actual power: 3 W
Equivalent power: 28 W
Luminous flux: 280 lm
Colour temperature: 3000 K

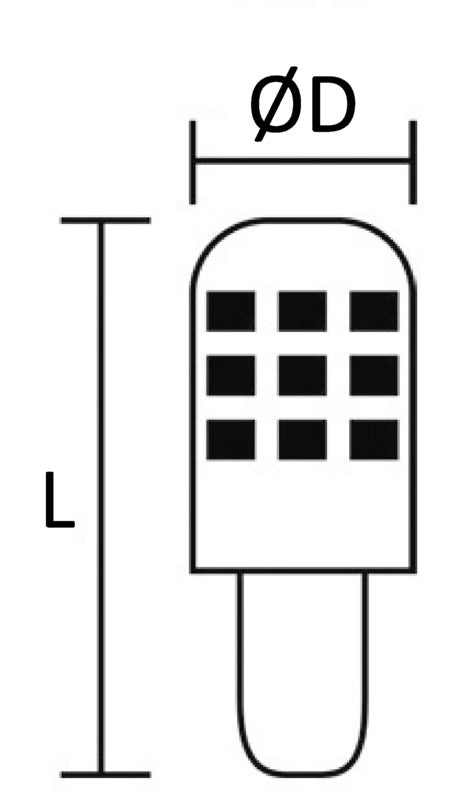

Dimensions: Ø25 × 67 mm
IP rating: IP65
Glass cover over the LED components
