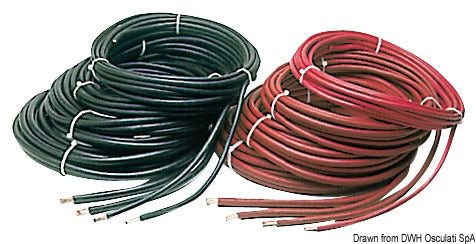

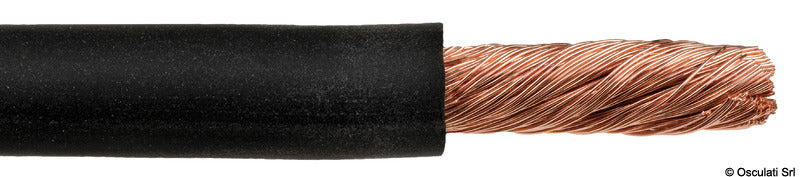

Black copper battery cable with synthetic resin insulation is supplied as a 24 m roll with a conductor cross-section of 16 mm². The cable is designed for marine electrical installations and is intended for use in the boat's bilge and keel areas.
The copper conductor is rated for a maximum continuous current of 75 A. The external cable diameter is 8.7 mm, while the synthetic resin insulating sheath has a thickness of 1.7 mm.
The cable is manufactured in accordance with CE/EC standards for documented use in bilge areas. No specific system voltage is specified, so cable sizing must be based on the installation's power consumption, cable length, and permissible voltage drop.
When installing, cable lugs, connectors, and crimping tools must be sized for 16 mm² cable. The corresponding documented red color variant has item no. 14.382.16.
Key featuresBlack copper battery cable for marine installations
Conductor cross-section: 16 mm²
Max. continuous current: 75 A
External diameter: 8.7 mm
Sheath thickness: 1.7 mm
Synthetic resin insulation
Supplied on a 24 m roll
Designed for use in boat bilge areas
