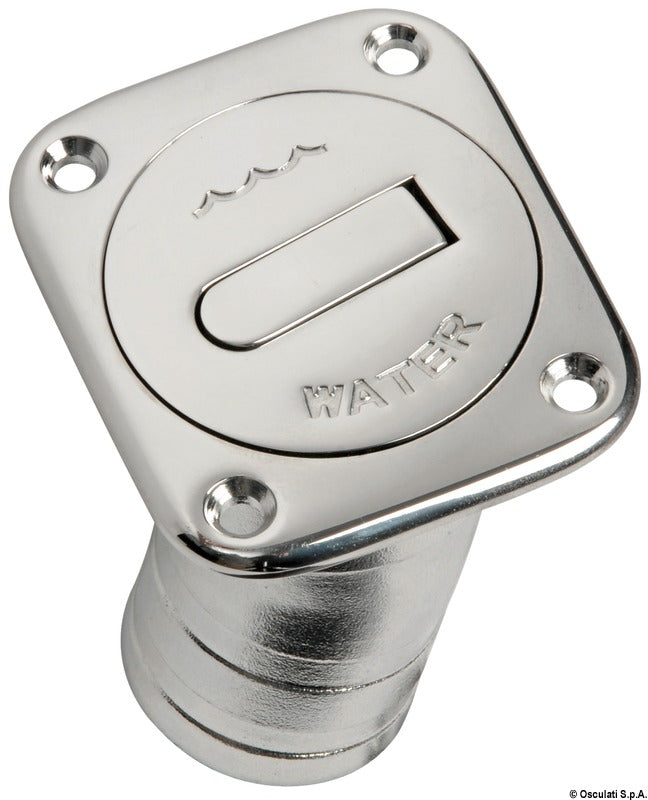

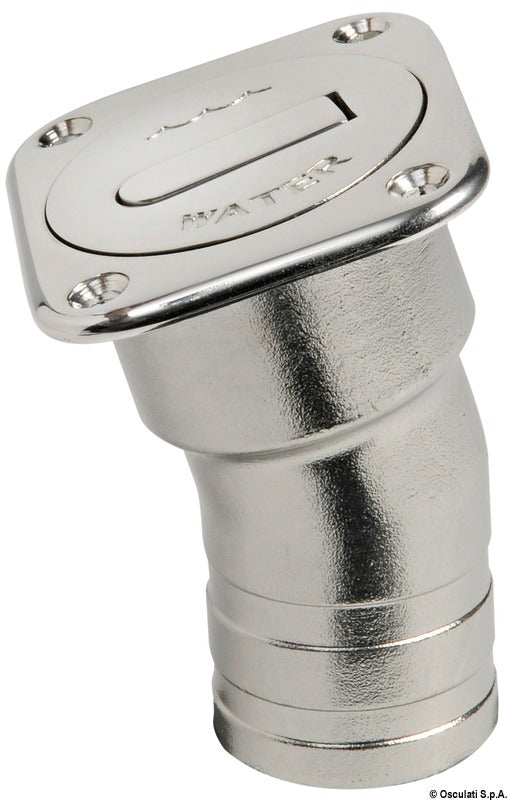

This Square deck filler in AISI 316 stainless steel – long model is designed for filling the boat's fresh water tank via the deck. The cap is marked WATER with a wave symbol, allowing the purpose of the filler point to be quickly identified.
The integrated flip-top opening system provides access to the filler directly from the cap. The visible part has a low profile of only 3.5 mm above the mounting surface, which minimizes protrusion above the deck.

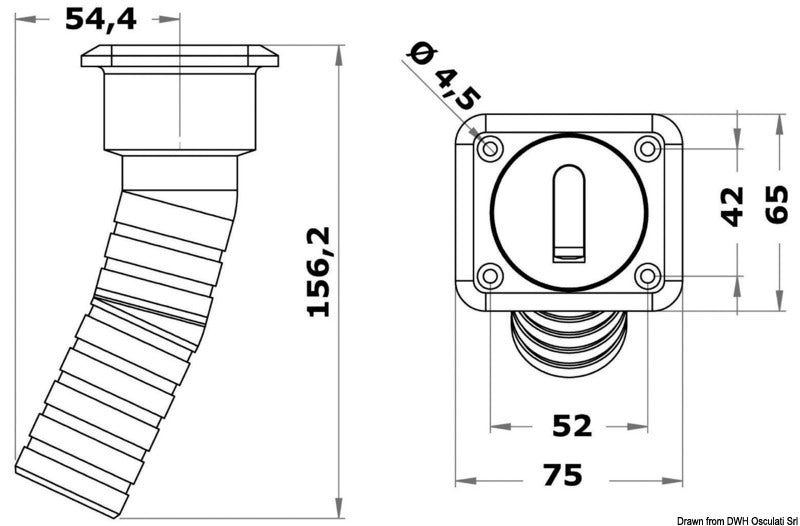

The deck filler is made of mirror-polished AISI 316 stainless steel. The total length is 156.2 mm, while the rectangular flange measures 65 × 75 mm. The long, ribbed hose barb has a diameter of 38 mm and is intended for a 38 mm filler hose.
The rounded, rectangular flange is mounted on the deck and has four countersunk mounting holes, one in each corner. The hose barb is passed through the deck and connected to the water tank's filler hose below deck.
If the installation requires a short version for the same application, this is available as item no. 20.454.02. Check space requirements, hose diameter, and necessary cutout dimensions before installation.
Key featuresFor filling the boat's fresh water tank
Long model with 38 mm hose barb
Cap marked WATER with wave symbol
Flip-top opening system
Only 3.5 mm profile above mounting surface
Mirror-polished AISI 316 stainless steel
Total length of 156.2 mm
Flange of 65 × 75 mm with four mounting holes
