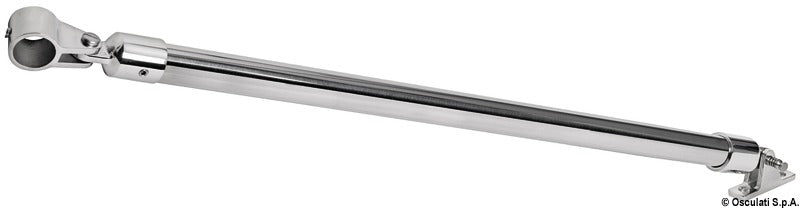

This Support arm set for bimini and sprayhood in AISI 316 stainless steel is a fixed, non-telescopic set for supporting a boat canopy. The set consists of separate components for assembling two support arms with Ø 22 mm tubing.
The two included tube sections are each 100 cm long and have an outer diameter of 22 mm with a wall thickness of 1.2 mm. The tubes and fittings are made of mirror-polished AISI 316 stainless steel, providing a shiny and uniform surface. The tube sections can be shortened as needed during installation.
Each support arm is assembled with diameter-specific end fittings and an angled fork joint for Ø 22 mm tubing. For mounting to the surface, two 90° deck hinges with a removable pin are included. The construction provides fixed support arms for the bimini or sprayhood frame and does not feature any telescopic length adjustment.
Set contents
2 × 100 cm tube section Ø 22 × 1.2 mm, based on item no. 41.613.01
4 × end fittings for Ø 22 mm tubing, item no. 46.661.01
2 × angled fork joints for Ø 22 mm tubing, item no. 46.661.00
2 × 90° deck hinges with removable pin for Ø 20–25 mm, item no. 46.662.20
Key featuresComplete set for assembling two fixed support arms
For bimini, sprayhood, and boat canopy
Two tube sections of 100 cm each
Tube dimension: Ø 22 × 1.2 mm
Mirror-polished AISI 316 stainless steel
90° deck hinges with removable pin
Supplied as individual tubes and fittings
