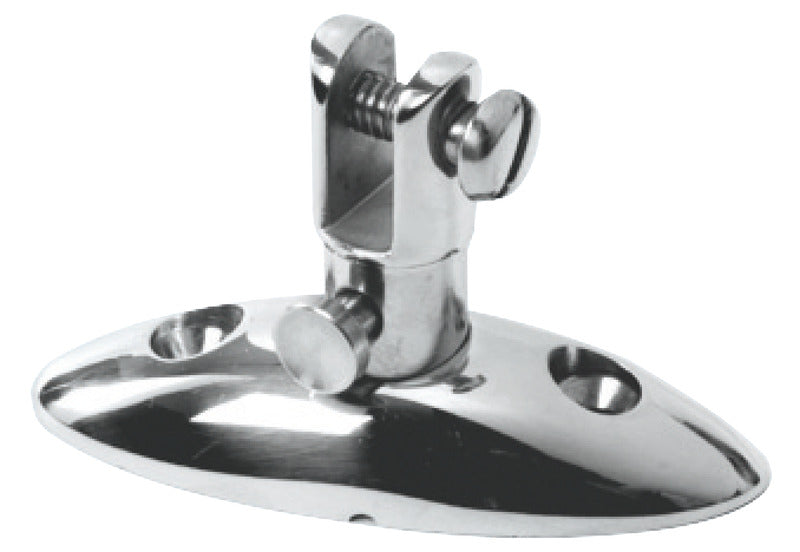

Bimini base with detachable click fork in the STREAM LINE series is a deck fitting for bimini and canopy frames with Ø 22/25 mm tubes. The click mechanism allows for the connected frame component to be released from the base when the canopy or bimini needs to be removed or folded down.
The fitting is made of mirror-polished AISI 316 stainless steel, which is suitable for maritime environments. The streamlined design gives the base a rounded and compact shape, and the construction features a 6 mm pin/hole connection.
The base is intended for flat mounting on the deck and has two mounting holes. It can be used for bimini and canopy frames on both sailboats and motorboats. Mounting screws, hole spacing, and mounting hole diameter are not specified.
Optional accessories for the click fork connection include end cap 46.661.01 for Ø 22 mm tubes, 46.861.03 for Ø 25 mm tubes, and 46.761.03 for Ø 30 mm tubes. The end caps are not included. The base’s documented tube specification remains Ø 22/25 mm.
Key featuresBimini base with detachable click fork
For bimini and canopy frames with Ø 22/25 mm tubes
6 mm pin/hole connection
Mirror-polished AISI 316 stainless steel
Streamlined STREAM LINE design
Flat deck mounting
Two mounting holes
Optional end caps available separately
