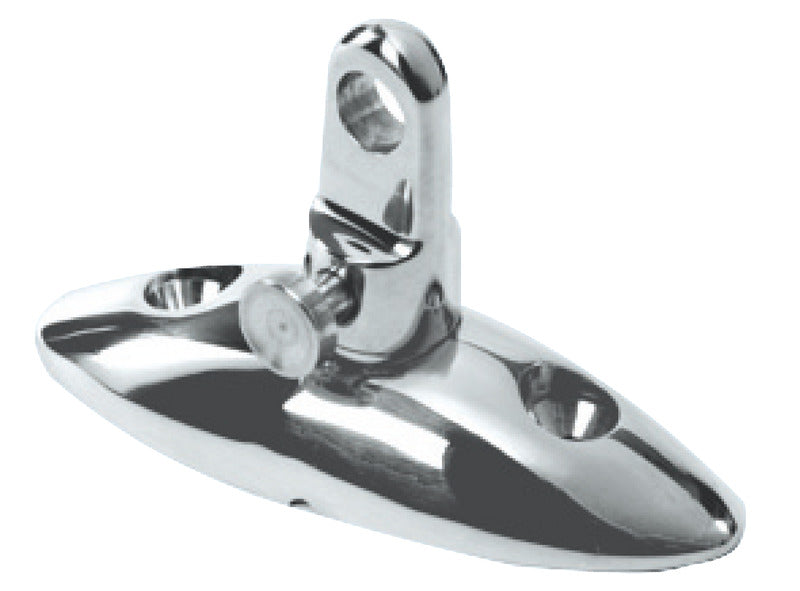

This deck base with removable snap-eye for bimini is part of the STREAM LINE series and is intended for mounting frames for biminis, sprayhoods, or sun sails. The fitting is compatible with system components for bimini tubes with a diameter of 22 or 25 mm.
The snap-eye can be detached from the fixed base, allowing the connected frame component to be separated from the deck. The connection is made using a 6 mm pin/hole principle.
The base is manufactured from mirror-polished AISI 316 stainless steel. The glossy surface and the streamlined, rounded design provide a compact fitting without unnecessary sharp contours.
The tube specification Ø 22/25 mm describes the compatibility with the bimini and sprayhood system's tube components and is not a measurement of the base itself. The fitting is intended as a deck-mounted connection in the STREAM LINE system.
Supplementary products
The terminal caps with item no. 46.650.22 for Ø 22 mm tubes and 46.650.25 for Ø 25 mm tubes are documented options in the system. Self-locking pins in the 37.264.xx series with a 6 mm diameter can be used in connection with the fitting; the required pin length depends on the installation.
Key featuresDeck base with removable snap-eye
For bimini, sprayhood, and sun sail frames
Compatible with system components for Ø 22 and Ø 25 mm tubes
6 mm pin/hole connection
Mirror-polished AISI 316 stainless steel
Streamlined and rounded design
Part of the STREAM LINE series
