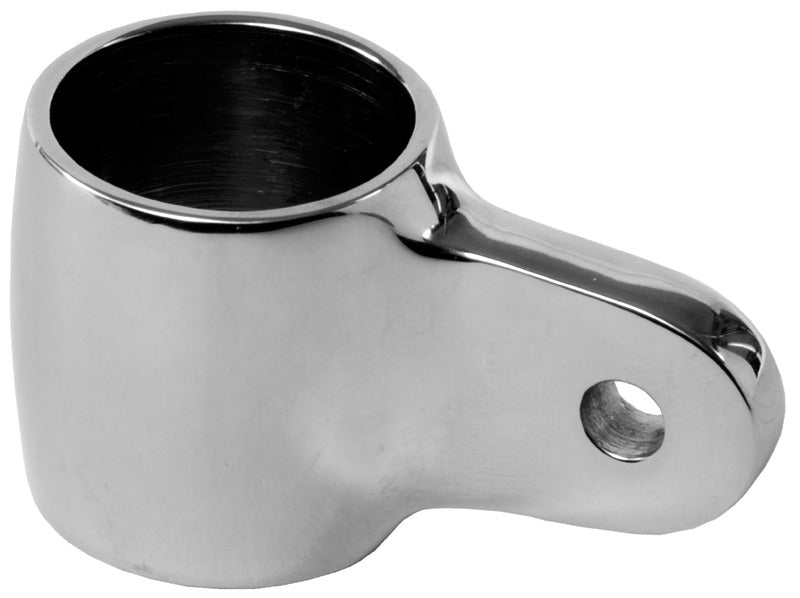

This Stream Line swivel joint with eye for bimini tubing is designed for tubes with an external diameter of Ø 22 mm. The fitting acts as a movable connection in frames for biminis and boat canopies.
The swivel joint is manufactured from AISI 316 stainless steel with a mirror-polished surface. The material and surface finish make the fitting suitable for maritime installations, while the streamlined and rounded design provides a smooth finish to the frame.
The fitting has an Ø 6 mm pin/hole dimension for the connection. The documented design dimensions are 55 mm in length and 31 mm in height. The supplementary dimension A is 10 mm; the letter designation has been retained, as the specific measurement direction cannot be determined with certainty without the dimension drawing.
This variant is specifically dimensioned for Ø 22 mm bimini tubing and must not be confused with the variant in this product family for Ø 25 mm tubing. Please therefore check the external diameter of the tube and the Ø 6 mm dimension of the connection before installation.
Key featuresSwivel joint with eye for bimini and canopy frames
For tubes with an external diameter of Ø 22 mm
AISI 316 stainless steel
Mirror-polished surface
Streamlined and rounded design
Ø 6 mm pin/hole dimension
Length 55 mm and height 31 mm
