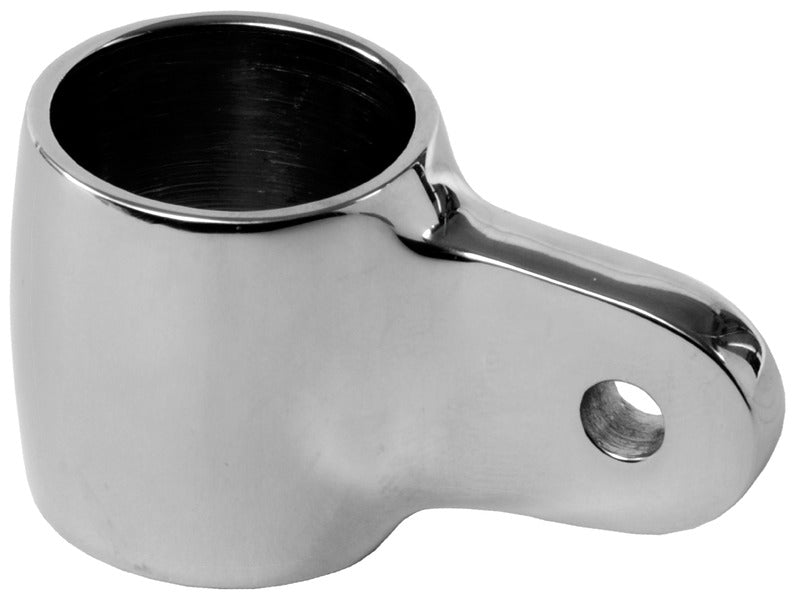

This Stream Line eye swivel for bimini tubes is designed for bimini and canopy tubes with a nominal diameter of Ø25 mm. The fitting serves as a connecting element in tube-based bimini and canopy frames.
The swivel is manufactured from AISI 316 stainless steel with a mirror-polished surface. The material and surface finish are well-suited for exposed fittings in maritime environments, while the streamlined and rounded design provides a smooth visual appearance.
The fitting has a documented length of 60 mm and a height of 31 mm. Dimension A is 10 mm. The pin/connection hole has a diameter of 6 mm and must be matched with the corresponding connection during installation.
Compatibility is determined by the tube diameter of Ø25 mm and the pin/hole connection of Ø6 mm. Therefore, verify both dimensions on your existing bimini or canopy frame before ordering.
The Stream Line series also includes other tube and base fittings. Related components include end cap 46.650.25 as well as bases 46.652.22, 46.653.22, and 46.654.22. Always select components according to the specific construction and required mounting dimensions.
Key featuresEye swivel for bimini and canopy tubes
For nominal tube diameter Ø25 mm
Ø6 mm pin/connection hole
Length: 60 mm
Height: 31 mm
Dimension A: 10 mm
AISI 316 stainless steel
Mirror-polished surface
Streamlined and rounded design
Stream Line series
