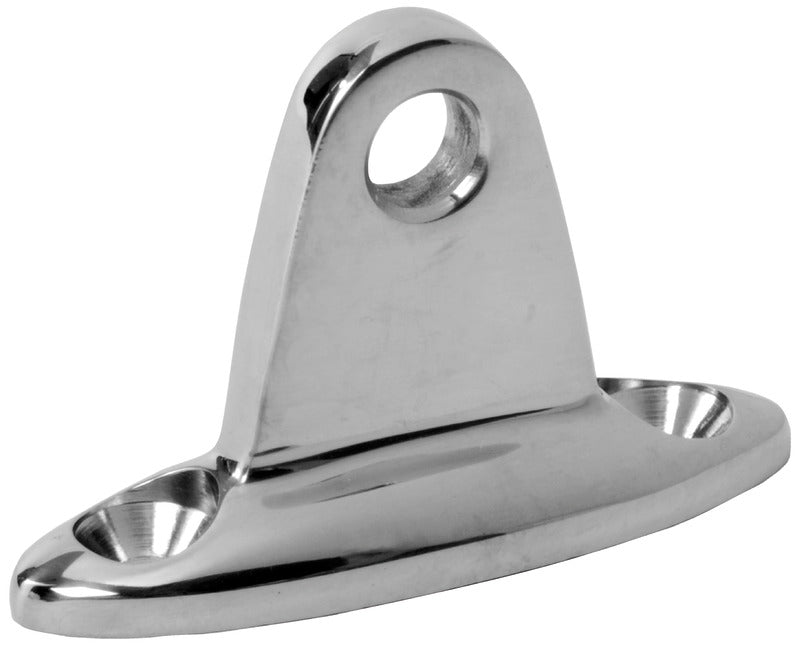

Stream Line fixed base mount with eye for bimini is designed for attaching a bimini, sunshade, or sunroof to a flat deck or cabin surface. The mount is part of a 22/25 mm tube system and serves as the fixed base for the connection to the bimini frame.
The mount is manufactured from AISI 316 stainless steel with a mirror-polished surface. The rounded and streamlined design reduces the number of sharp edges and provides a glossy, metallic look that fits naturally into marine installations.
The upright eye has a connection hole of Ø 6 mm. The base has two mounting holes for surface mounting. The articulated function occurs in the joint with a suitable tube terminal; the base mount itself is fixed to the surface.
The mount is compatible with bimini tubes of Ø 22 mm or Ø 25 mm when combined with the correct Stream Line terminal. The tube diameter is a compatibility measurement and not the diameter of the mount itself.
Suitable terminals
For Ø 22 mm tubes, use terminal with item no. 46.650.22. For Ø 25 mm tubes, use terminal with item no. 46.650.25.
Key featuresFixed base mount with upright eye
For bimini, sunshade, and sunroof
Compatible with Ø 22 mm and Ø 25 mm bimini tubes
Ø 6 mm eye/connection hole
AISI 316 stainless steel
Mirror-polished surface
Rounded and streamlined design
Surface mounting on flat surface
