THE CHOICE IS YOURS

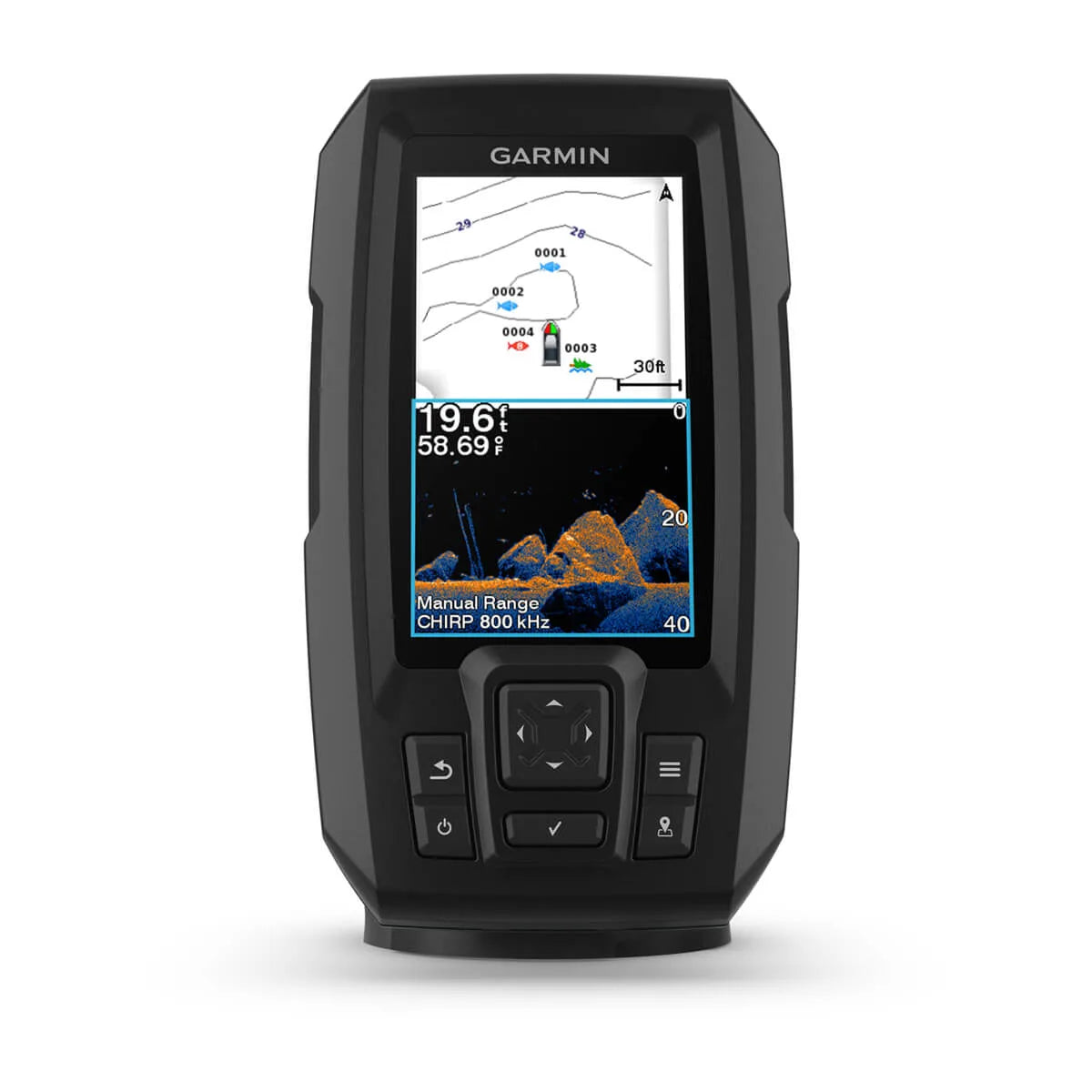

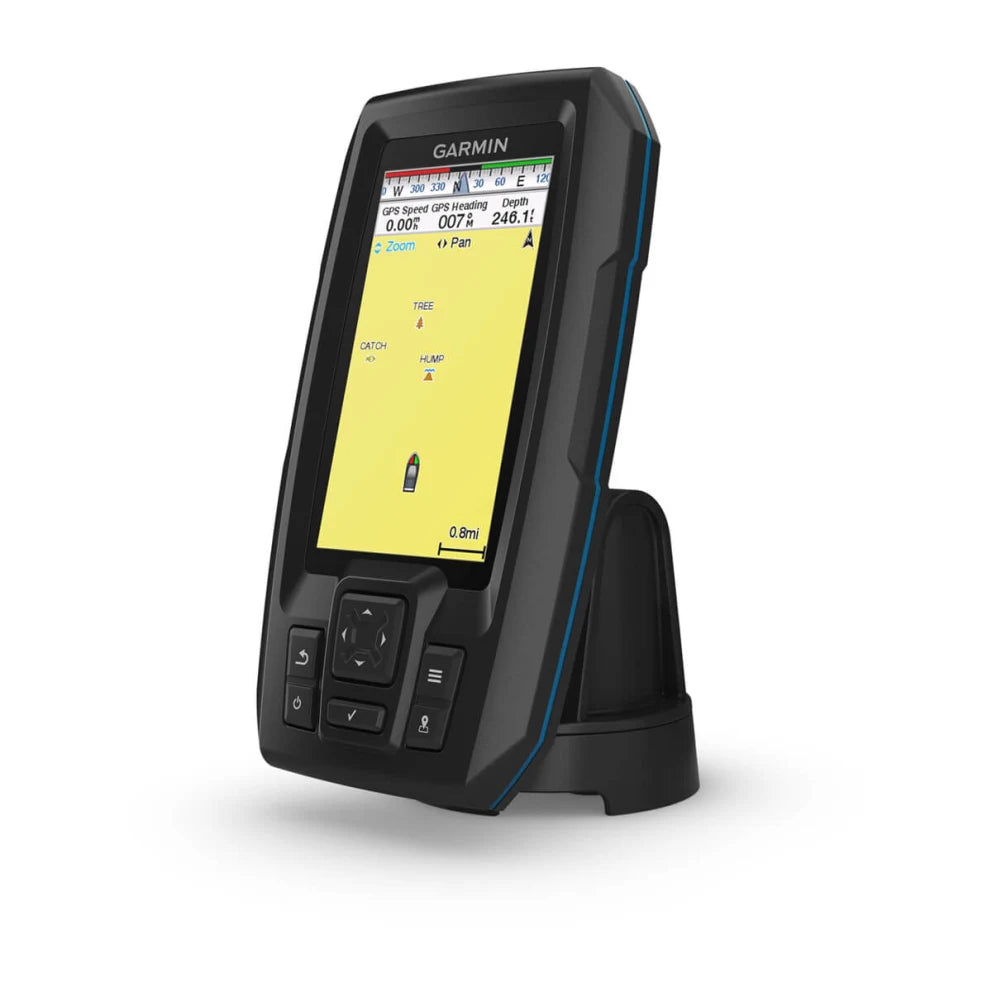

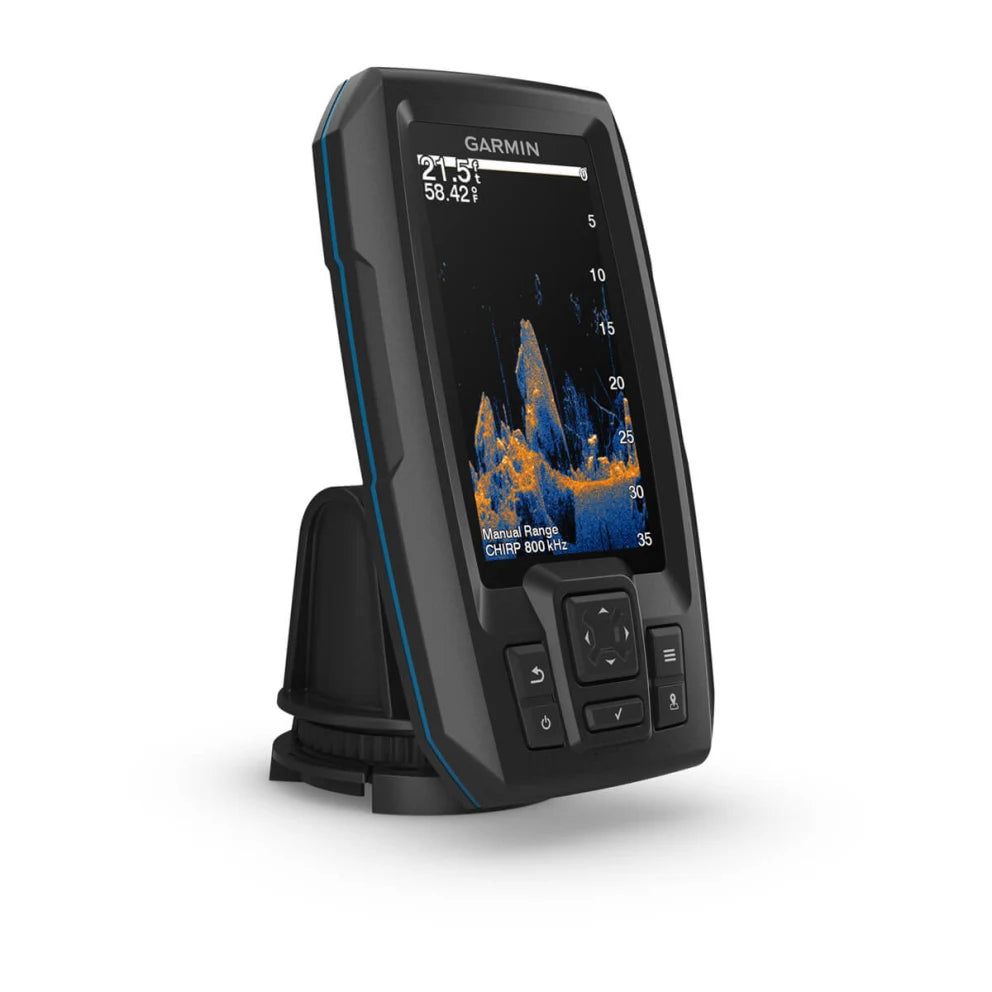

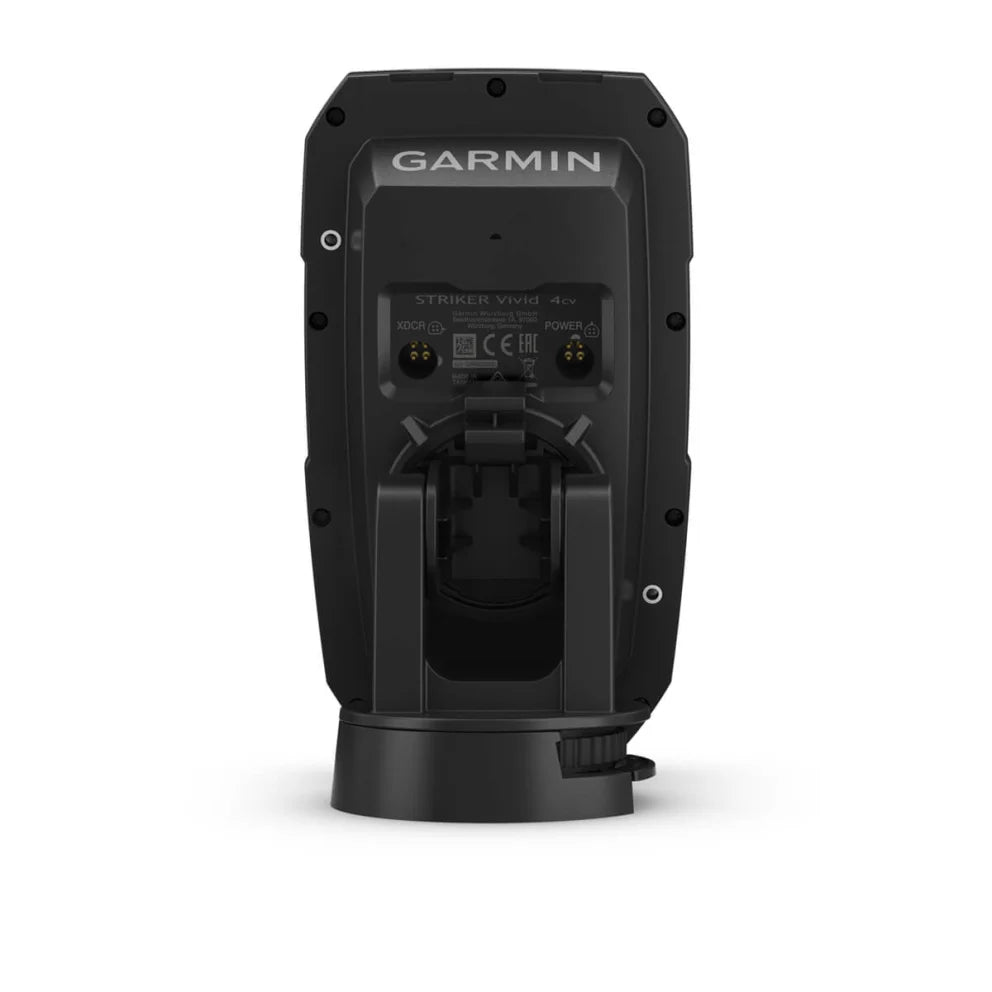

See fish and structure in maximum detail when you choose your screen color, position and sonar for your day on the water with the STRIKER Vivid 4cv fishfinder with transducer.
The sonar color you choose says a lot about your fishing style. Good thing there are seven new vibrant options.
What a view. Use the included transducer to get CHIRP traditional and ClearVü sonar.
Never lose a hotspot again. Use waypoint marking to find your way back.
What lies beneath the surface of the water looks pretty much like a 1-foot contour - I'm just saying.
| Generally |
| Physical size (WxHxD) |
3.9'' x 6.9'' x 1.8'' (9.8 x 17.4 x 4.5 cm) |
| Weight |
0.7 lbs (0.3 kg) |
| Waterproof class
|
IPX7 |
| Display type |
QSVGA |
| Display size, WxH |
2.1" x 3.7" (5.4 x 9.5 cm); 4.3" diag, (10.9 cm) |
| Display resolution, WxH |
272 x 480 pixels |
| Mounting options |
flush, tilt/swivel |
| Supplementary button operation |
Button operator |
| Cards and memory |
| Waypoints/favorites/positions |
5000 |
| Track points |
50,000 |
| Running tracks |
50 |
| Routes |
100 |
| Sensors |
| GPS |
Yes |
| GLONASS |
No |
| Galileo |
No |
| Has built-in receiver |
Yes |
| Compatible with NMEA 2000®
|
No |
| NMEA 0183 compatible |
No |
| Supports WAAS |
Yes |
| Built-in maps |
| Auto guidance |
No |
| BlueChart® (coastal) |
No |
| LakeVü (country) |
No |
| Optional card support |
| BlueChart g3 |
No |
| BlueChart g3 Vision |
No |
| LakeVü g3 |
No |
| LakeVu g3 Ultra |
No |
| Standard mapping |
No |
| Garmin Quickdraw Contours |
Yes |
| Raster map support |
No |
| Outdoor features |
| Tide tables |
No |
| Electric |
| Power supply |
12 to 20 Vdc |
| Typical power consumption |
0.40 A |
| Max power consumption |
1.5A |
| Power consumption |
4.8 |
| Sonar Features and Specifications |
| Showing sonar |
Yes |
| Traditional sonar (dual frequency/beam) |
Built-in |
| ClearVü |
Yes |
| SideVü |
No |
| Panoptix™ sonar |
No |
| LiveScope |
No |
| Supported frequencies |
Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz |
| Transmission power |
300W (RMS) |
| Bottom lock (shows response from the bottom) |
Yes |
| Log and graph of water temperature |
Yes |
| Connections |
| 4-pin transducer ports |
1 |
| USB ports |
No |
| BNC port for external antenna |
No |
| Bluetooth® call |
No |
| ANT+™ (connection) |
No |
| Garmin Wi-Fi® network (local connection) |
No |
| Fishfinder features |
| Split screen zoom |
Yes |
| Fish symbol ID (helps identify fishing targets) |
Yes |
| AutoGain technology (minimizes clutter, maximizes target) |
Yes |
| Adjustable depth line (measures depth for underwater objects) |
Yes |
| A-scope (real-time display of fish passing through transducer beam) |
Yes |
| Water temperature sensor included |
Yes |
| Shading in depth range |
Yes |
| Further |
| Additional |
- A 4-pin transducer port
- Quickdraw Depth Curves
- Built-in GPS
- Mark waypoints
- Course over ground (COG)
- Current consumption at 12 V: 0.40A
|
At the checkout:
- STRIKER Vivid 4cv
- GT20-TM transducer
- Power/data cable
- Tilt/swivel bracket
- Hardware
- Documentation
