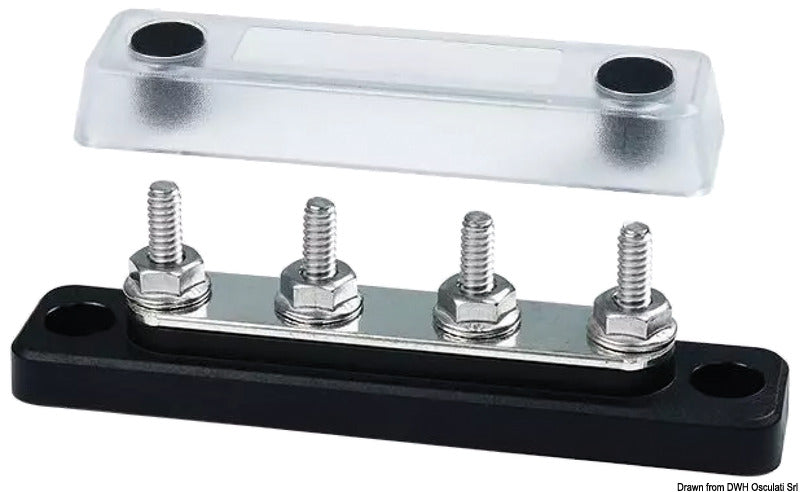

This product is a Techno Heavy Duty electric busbar in a Mini Bus Bar version for connecting and distributing power in electrical installations. This variant features four power terminals with a terminal size of 5 mm and is rated for up to 48 V with a continuous current capacity of 100 A.
The cables are fastened directly to the tinned copper busbar using stainless steel screws. The design requires no intermediate nuts between cable lugs and the busbar, and power cables can be oriented in any direction at the terminals. This variant has no separate branch terminals.
The base is made of technopolymer and measures 107 x 23 mm. These dimensions refer to the base itself and not the full external dimensions of the product. The included transparent cover allows for visual inspection of the connections.
The busbar is intended for electrical installations where multiple cable connections need to be gathered on a common current-carrying bar. Cables, cable lugs, and electrical protection must be sized according to the voltage and load of the installation.
Key featuresMini Bus Bar version
4 power terminals with 5 mm terminal size
No separate branch terminals
Continuous current capacity of 100 A
Voltage up to 48 V
Base of 107 x 23 mm
Technopolymer base and tinned copper busbar
Stainless steel screws
Transparent cover included
Direct cable attachment without intermediate nuts
