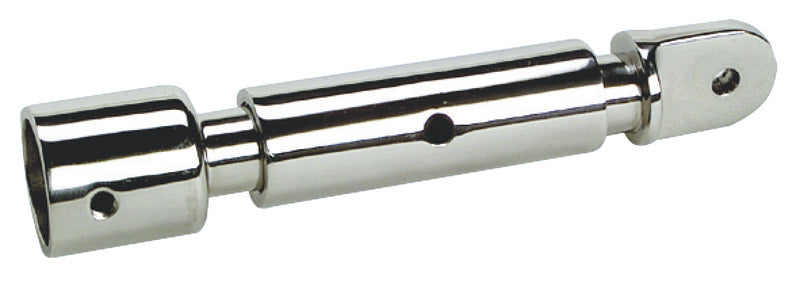

Telescopic bimini tensioner in AISI 316 stainless steel for 25 mm bimini and canopy tubes is used to tighten the cover via the tube structure. The tensioner makes it possible to achieve the desired tension in the fabric without removing the canopy.
The telescopic design has a stroke length of 30 mm, allowing the tension to be adjusted mechanically. The length is 135 mm in the closed position, making the tensioner suitable as a compact, integrated fitting in the bimini or canopy tube structure.
The tensioner is made of mirror-polished AISI 316 stainless steel. The design features a tube connection at one end and a flat mounting eye at the other. The mounting hole has a diameter of 6 mm.
This variant is intended for tubes with a diameter of 25 mm. Check the tube diameter and the dimensions of the selected mounting part before installation.
Key featuresTelescopic bimini tensioner for bimini and canopy tubes
For 25 mm tubes
Length in closed position: 135 mm
Stroke length: 30 mm
Hole diameter: 6 mm
Mirror-polished AISI 316 stainless steel
Re-tensioning without removing the canopy
