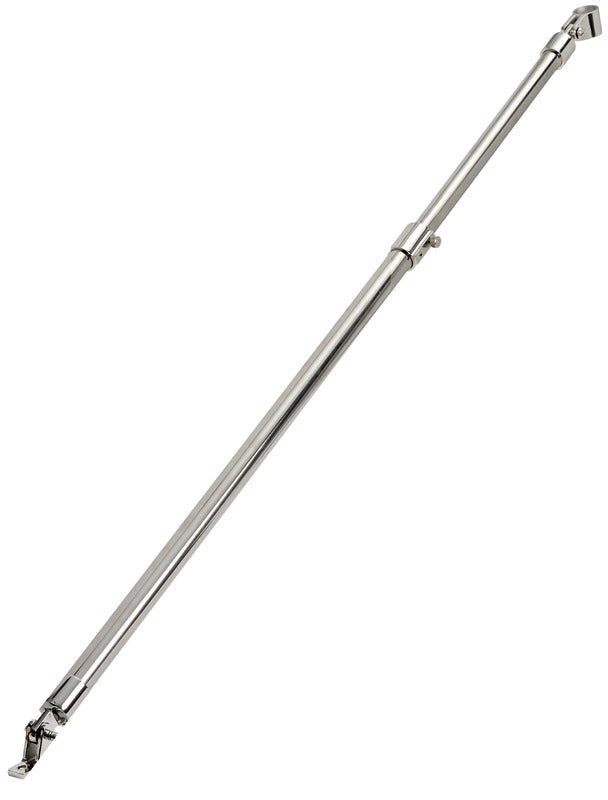

Telescopic support poles for biminis are supplied as a complete pair for supporting the rear part of a bimini or boat canopy. The poles can be adjusted from 75 to 120 cm, allowing the support to be customized to the specific cover and mounting position.
Each support is constructed from tubes with an outside diameter of 22 and 25 mm, respectively. The tubes function telescopically via a connecting piece, which joins them without welding. The included tube sections are 60 cm long, and the fully assembled support has a documented length range of 75-120 cm.
The support poles and connecting parts are made of mirror-polished AISI 316 stainless steel. The tubes measure Ø22 × 1.2 mm and Ø25 × 1.2 mm. The bright, stainless surface is suitable for visible mounting on bimini and canopy systems in maritime environments.
The set includes two end caps for Ø22 mm tubes (item no. 46.661.01), two end caps for Ø25 mm tubes (46.861.03), two fork brackets (46.662.20), two fork joints for Ø22 mm tubes (46.661.00), and two connecting pieces for Ø22/25 mm tubes (46.658.00). In addition, there are two 60 cm tube sections of each of the two diameters.
The assembly is based on fork brackets and provides a complete mechanical connection between the support poles, the bimini, and the boat's mounting points. A self-locking stainless steel pin of 6 × 38 mm with item no. 37.264.15 is compatible with the included fork brackets, but is not documented as part of the set.
Key featuresSupplied as a pair with two telescopic support poles
Supports the rear part of a bimini or boat canopy
Adjustable length: 75-120 cm
Telescopic tubes with an outside diameter of 22 and 25 mm
Tube dimensions: Ø22 × 1.2 mm and Ø25 × 1.2 mm
Mirror-polished AISI 316 stainless steel
Assembly of the tubes without welding
Complete with end caps, fork joints, fork brackets, and tube connectors
