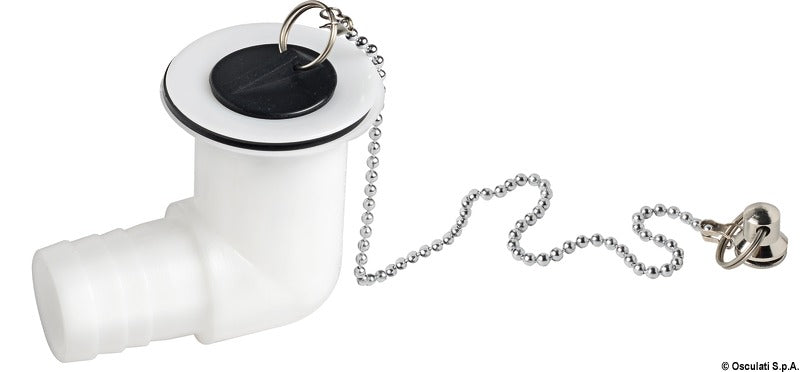

Sink drain in white nylon with a 90° angled design for draining water from a sink via a connected drain hose. The angled construction directs the drain to the side and is suitable where the installation requires a 90° change in drainage direction.
The drain is manufactured from white nylon and features a 28 mm hose connection. The stop or flange has a diameter of Ø 50 mm. This dimension describes the contact surface and must not be used as a drilling or cut-out dimension.
The sink drain is compatible with sinks 50.270.47, 50.188.81, 50.188.94, and 50.930.00. When mounting on 50.930.00, the existing hose dimension and installation must be checked, as the sink's other product data indicates a different hose size.
The 90° angled variant has the same basic connection and contact dimensions as the straight variant 50.270.41, but the two versions lead the drain hose in different directions. Therefore, choose the variant based on the available space and the desired routing of the hose.
Key featuresSink drain with hose connection
90° angled design
Hose connection: 28 mm
Stop/flange: Ø 50 mm
Material: nylon
Color: white
Compatible with documented sink models
