Vertical level sensor in AISI 316 with S3 thread, 240–33 Ω, 60 cm

Mærke: Osculati SKU: 27.170.60

Price:
Sale price446,00 kr

Description

Vertical level sensor in AISI 316 with S3 thread for measuring the level in fuel and water tanks. This 60 cm variant has a resistive output of 240–33 Ω and is compatible with 12/24 V systems.

The sensor operates with an annular float that moves vertically around the sensor tube as the liquid level changes. The movement is converted into a resistance value that can be read by a compatible tank level instrument. The output tolerance is ±(R × 1.5% + 1 Ω).

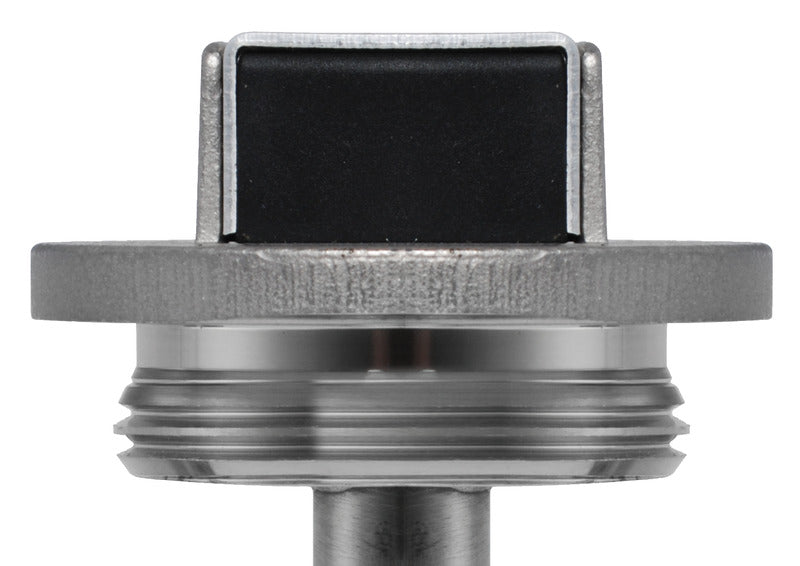

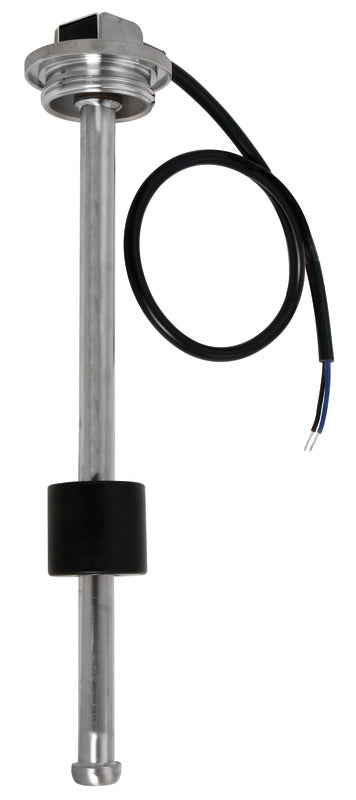

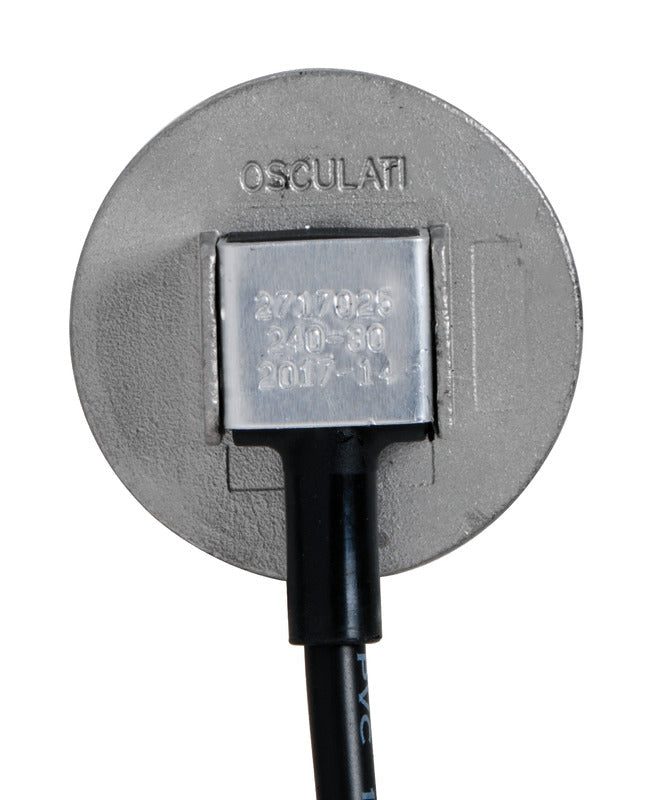

The construction is made of AISI 316 stainless steel. The sensor has a Ø12.7 mm sensor tube, a float of Ø35 × 32 mm, and a top cover with an outer diameter of 53.5 mm. The nominal sensor length is 600 mm with a tolerance of ±5 mm.

Mounting is via S3 thread with BSP 1 1/4″ for a compatible tank flange. The S3 mounting system uses a 50 mm/2″ tank opening. For installation in a tank with an existing 5-hole S5 flange, the adapter with item no. 52.746.10 can be used.

The 460 ±20 mm long cable has a black signal wire and a blue common wire. The sensor's function can be checked with a multimeter by measuring the resistance between the two wires while moving the float. The protection class is IP65, and the operating temperature is −40 °C to +85 °C.

The 240–33 Ω signal is compatible with relevant instruments from Teleflex, Aqua Meter, Vetus, S. Giorgio Sein/Veglia, Beede, Medallion, Datcom, and Taiwan-Wena. The level instrument with item no. 27.160.00 is also compatible with this resistance range.

The sensor family is covered by ABYC H-24, USCG 33 CFR 183.590, and ISO 10088, as well as the EMC Directive 2014/30/EU and the specified EN standards.

Key features

For fuel and water tanks
Sensor length: 60 cm
Output resistance: 240–33 Ω
Compatible with 12/24 V systems
AISI 316 stainless steel
S3/BSP 1 1/4″ threaded mounting
Cable length: 460 ±20 mm
IP65 and −40 °C to +85 °C
Nominal power: 125 mW
Maximum operating current: 300 mA

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Vertical level sensor in AISI 316 with S3 thread, 240–33 Ω, 60 cm
Vertical level sensor in AISI 316 with S3 thread, 240–33 Ω, 60 cm Item no. 27.170.60

Description

Produkt: Vertikal niveausensor i AISI 316 med S3-gevind
Serie: S3
Produkttype: Vertikal niveausensor
Anvendelse: Niveauovervågning i brændstof- og vandtanke
Volt: 12/24 V-kompatibel
Effekt: 125 mW
Ampere: Maks. 300 mA
Længde: 60 cm
Materiale: AISI 316 rustfrit stål
IP-klasse: IP65
Temperatur: −40 °C til +85 °C
Gevind: BSP 1 1/4″
Kabellængde: 460 ±20 mm
Montering: S3-gevindmontering
Standard: ABYC H-24; USCG 33 CFR 183.590; ISO 10088; EN 61326-1:2013; EN 61000-6:2007; EN 61000-6:2007/A1:2011/AC:2012
Certificering: 2014/30/EU
Kompatibilitet: 240–33 Ω-instrumenter fra Teleflex, Aqua Meter, Vetus, S. Giorgio Sein/Veglia, Beede, Medallion, Datcom og Taiwan-Wena; S3/BSP 1 1/4″ tankflange
Udgangsmodstand: 240–33 Ω
Modstandstolerance: ±(R × 1,5 % + 1 Ω)
Flangediameter: 53,5 mm
Sensorrørsdiameter: 12,7 mm
Svømmerdiameter: 35 mm
Svømmerhøjde: 32 mm
Gevindpartiets højde: 11 mm
Længdetolerance: ±5 mm
Ledningsfarver: Sort signal og blå fælles
